Pivot JointsAccess PanelsMulti-Material

Industrial Hinges

Pivot Joints for Access Panels & Protective Covers

Aluminum, nylon, and steel hinges designed for T-slot profile frame integration. These components enable rapid access panel and protective cover assembly while maintaining structural integrity and load distribution.

60+SKUs Available

ISOISO 9001:2015 Certified

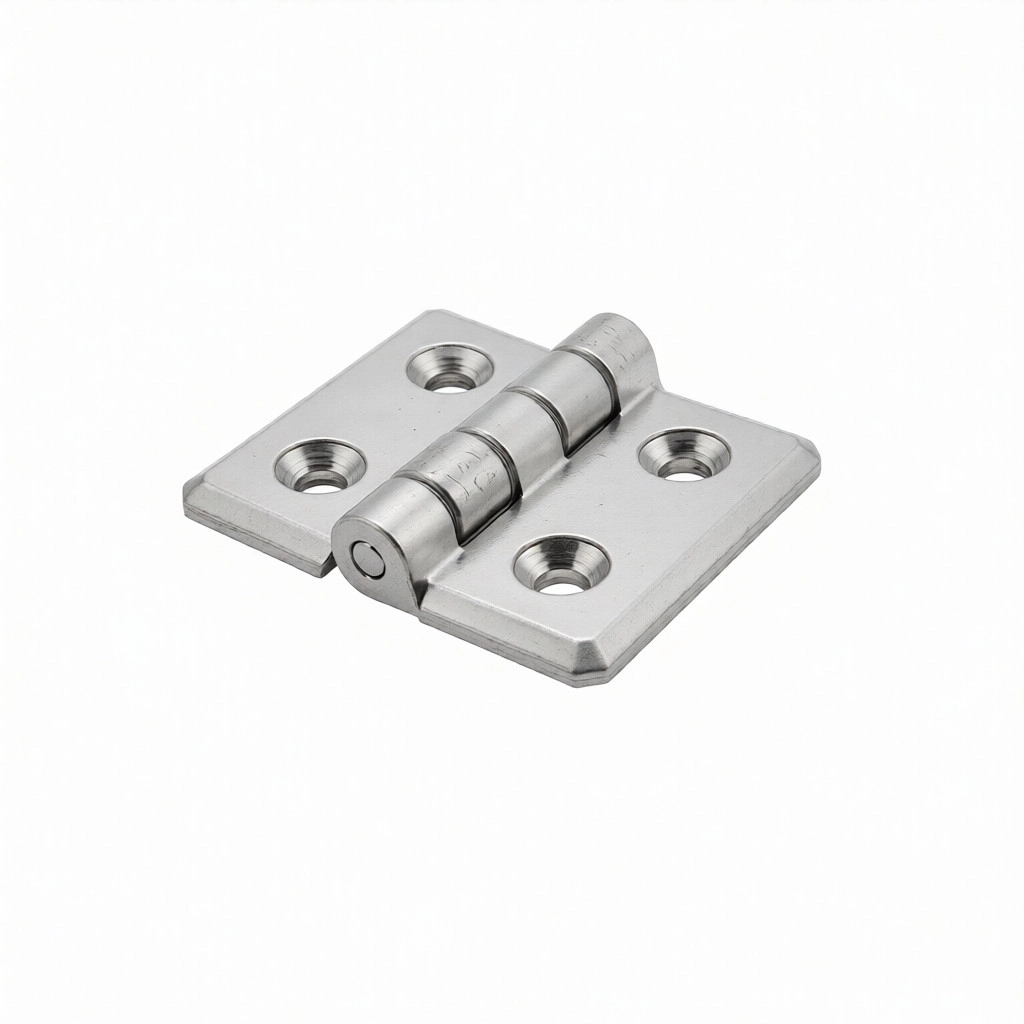

Zinc Alloy Hinges

Die-cast zinc alloy fixed-type hinges for heavy-duty industrial enclosure doors on aluminum profile frames. The chamfered corner design provides a premium aesthetic finish. Countersunk hole (Z) design for flush screw installation. Available in 60×60, 60×65, and 60×70 mm sizes.

Zinc Alloy (Die-cast)

Zinc Alloy

Request Quote

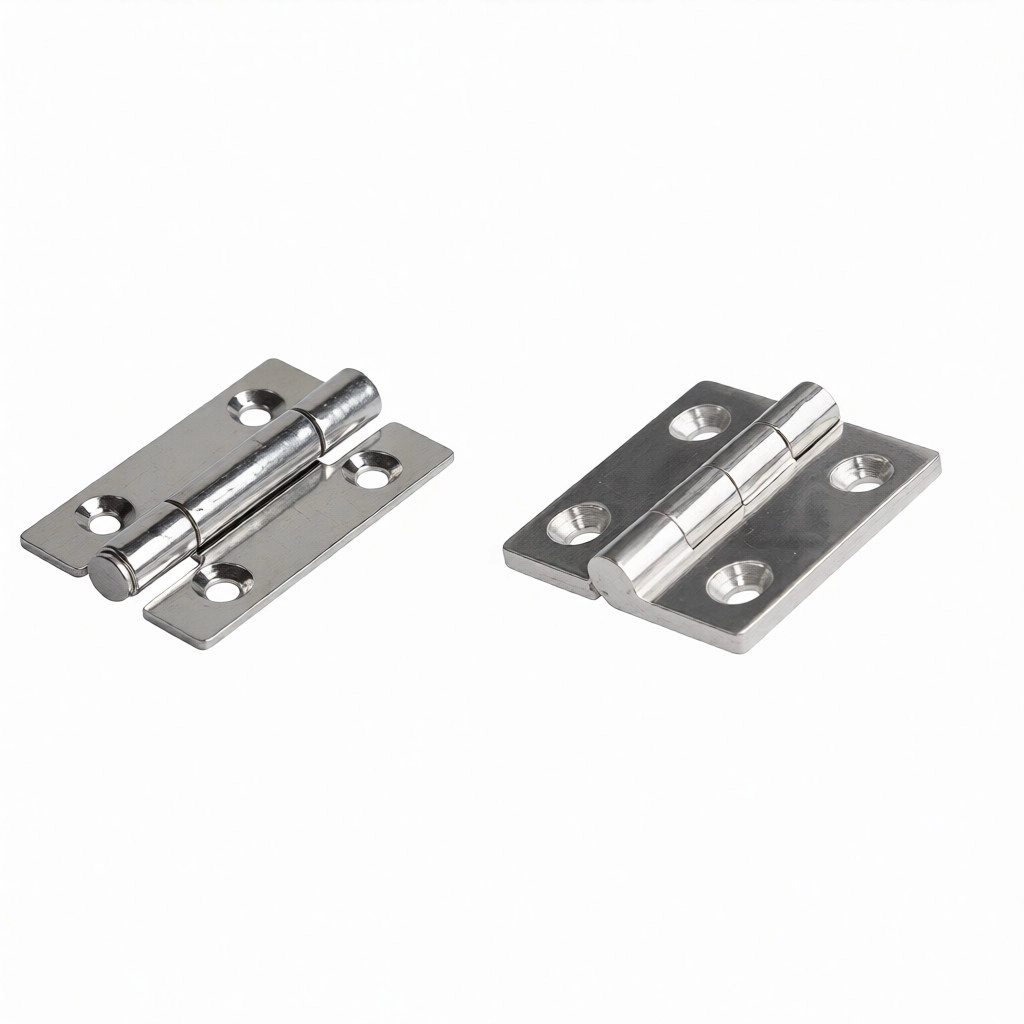

Stainless Steel Hinges

SUS304 stainless steel fixed-type hinges for food processing, pharmaceutical, and corrosive industrial environments. Vibratory polished surface finish meets hygiene standards. Countersunk hole (Z) design allows flush screw installation. Available for 48 and 62 series profiles.

SUS304 Stainless Steel

Request Quote

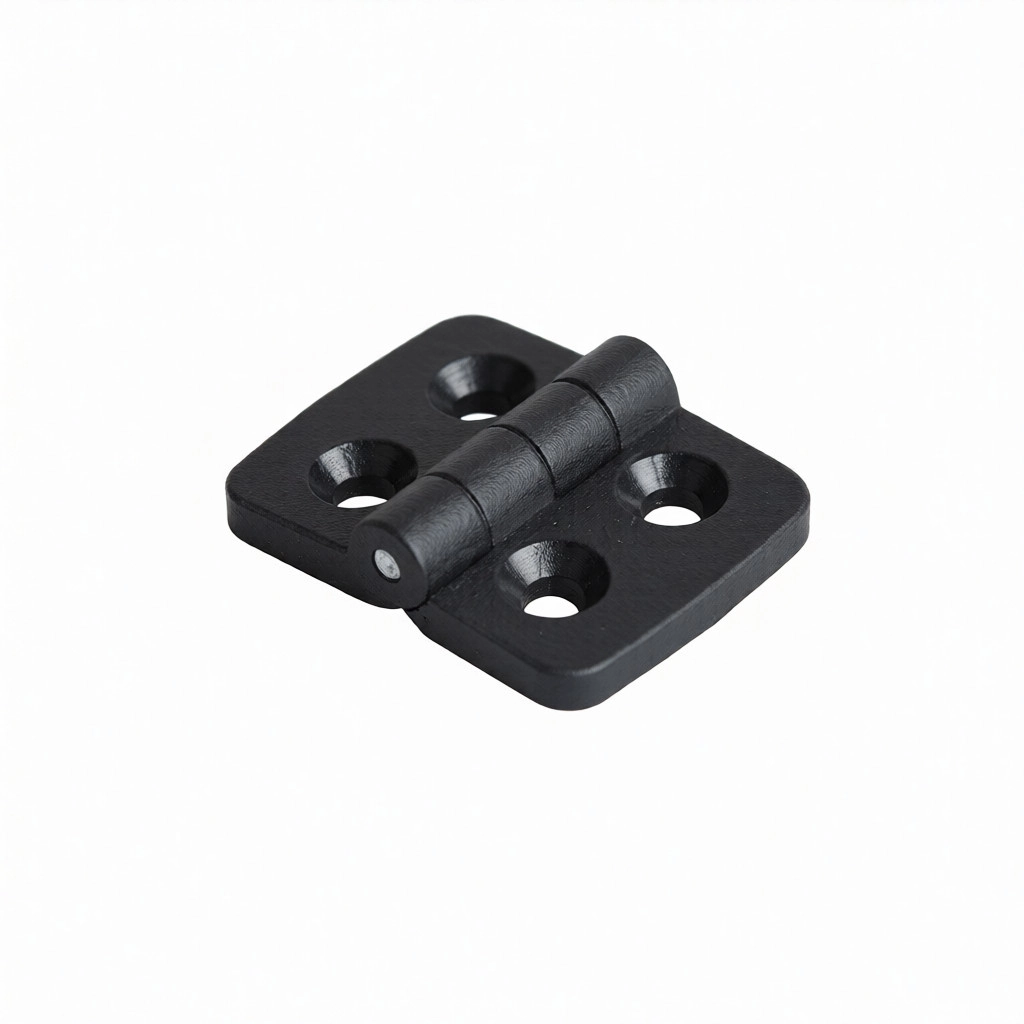

Nylon Hinges

Lightweight PA nylon fixed-type hinges for aluminum profile enclosures. The hammer-head pivot barrel slides directly into the T-slot, requiring no additional fasteners for installation. Available in countersunk (Z) and counterbored (Y) hole variants for 30 and 40 series profiles.

PA (Nylon)

Request Quote

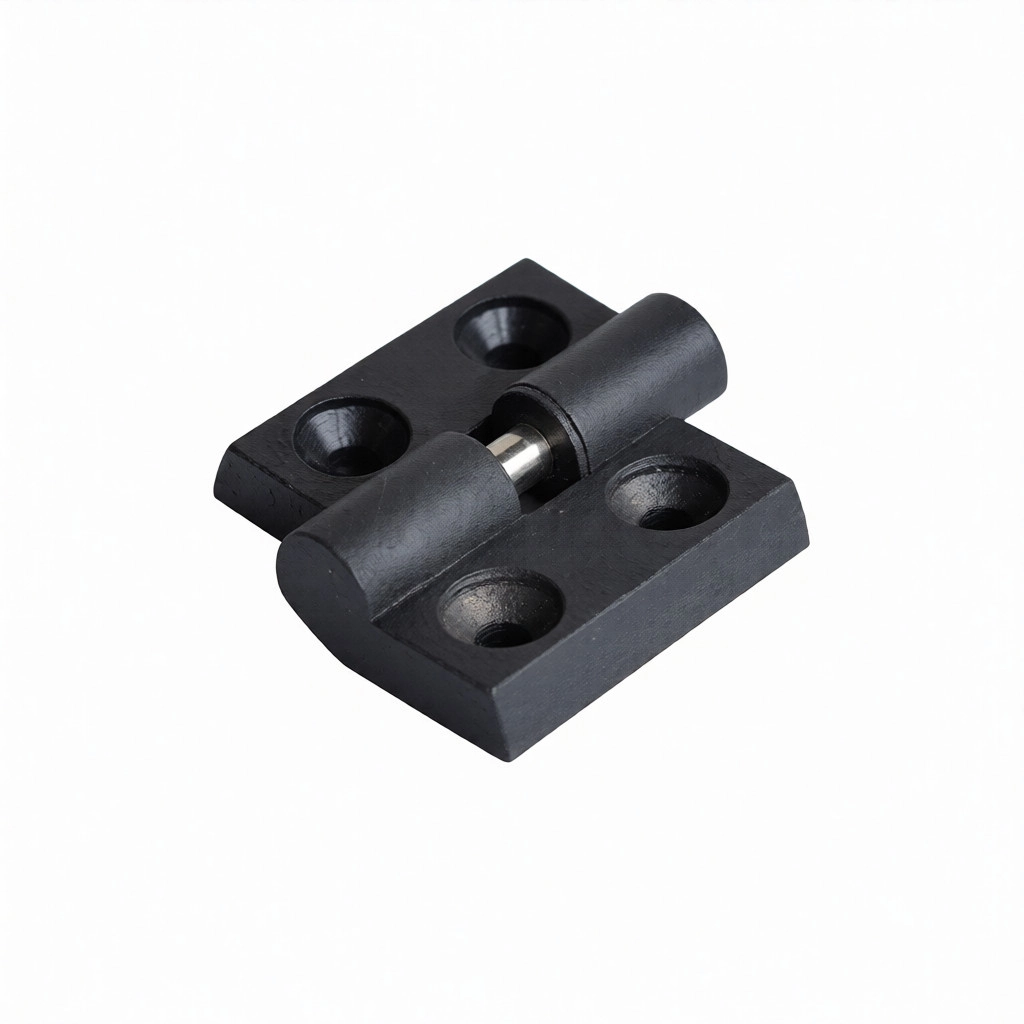

Nylon Lift-off Hinges

PA nylon detachable lift-off hinges allowing full panel removal without tools. The split-barrel design separates at the pivot axis, enabling the door or cover to be lifted clear of the frame. Available in left-hand (L) and right-hand (R) versions for 30 and 40 series profiles.

PA (Nylon)

Request Quote

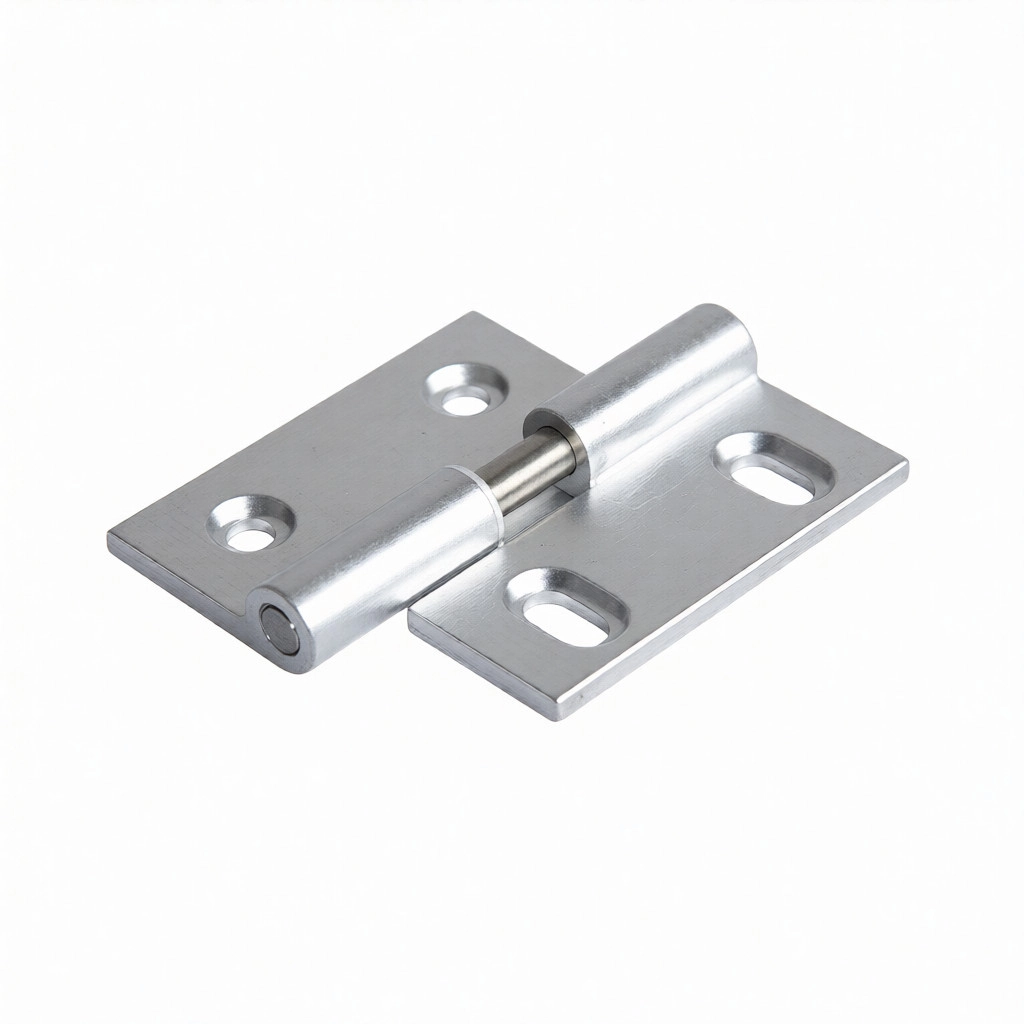

Aluminum Hinges with Slotted Holes

A6063 anodized aluminum hinges with slotted mounting holes (Y-type) for precise panel alignment and position adjustment. The elongated slot (C1=5mm) allows lateral fine-tuning after initial installation. Available for 62 series profiles in three height variants.

A6063 Aluminum Alloy

Request Quote

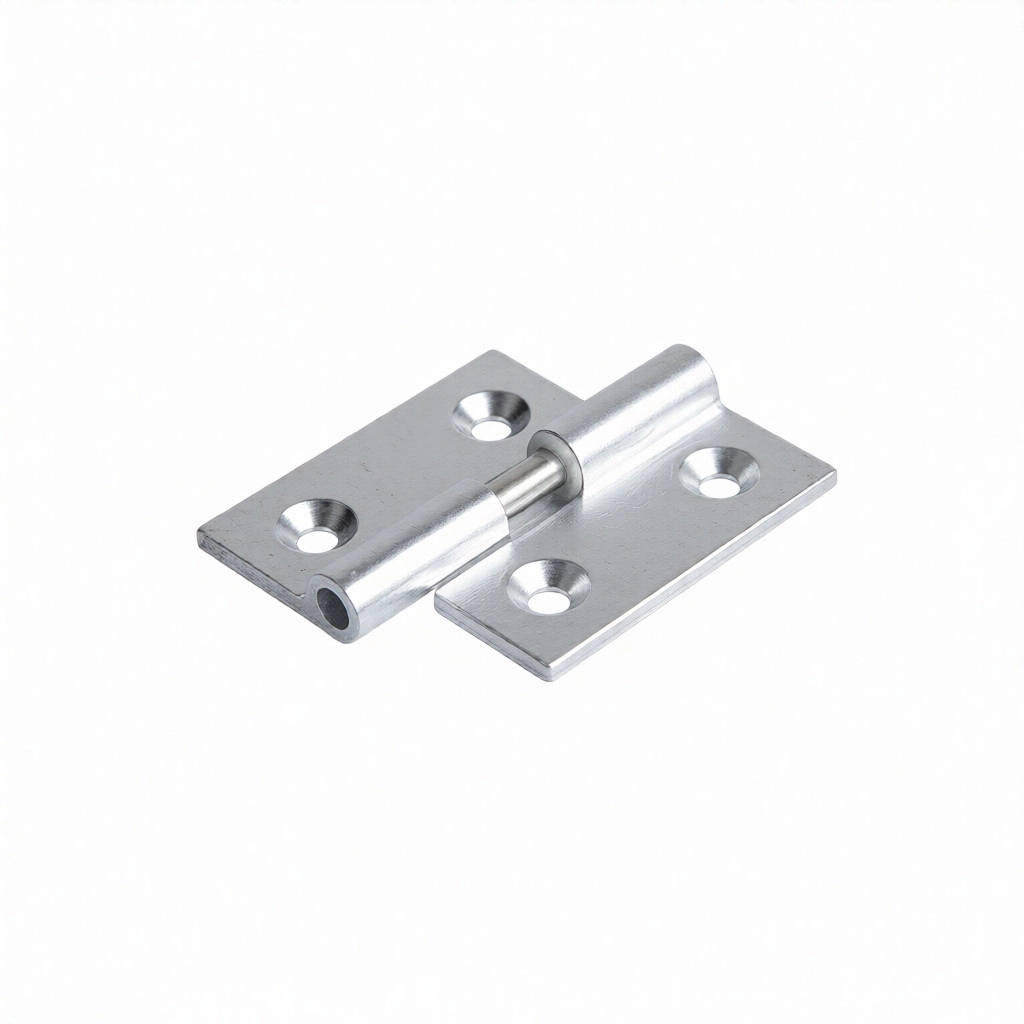

Aluminum Lift-Off Hinges

A6063 anodized aluminum detachable lift-off hinges for panels requiring frequent removal. The split-barrel design separates at the pivot axis, allowing the panel to be lifted clear without tools. Available in left-hand (L) and right-hand (R) versions for 48 and 62 series profiles.

A6063 Aluminum Alloy

Request Quote

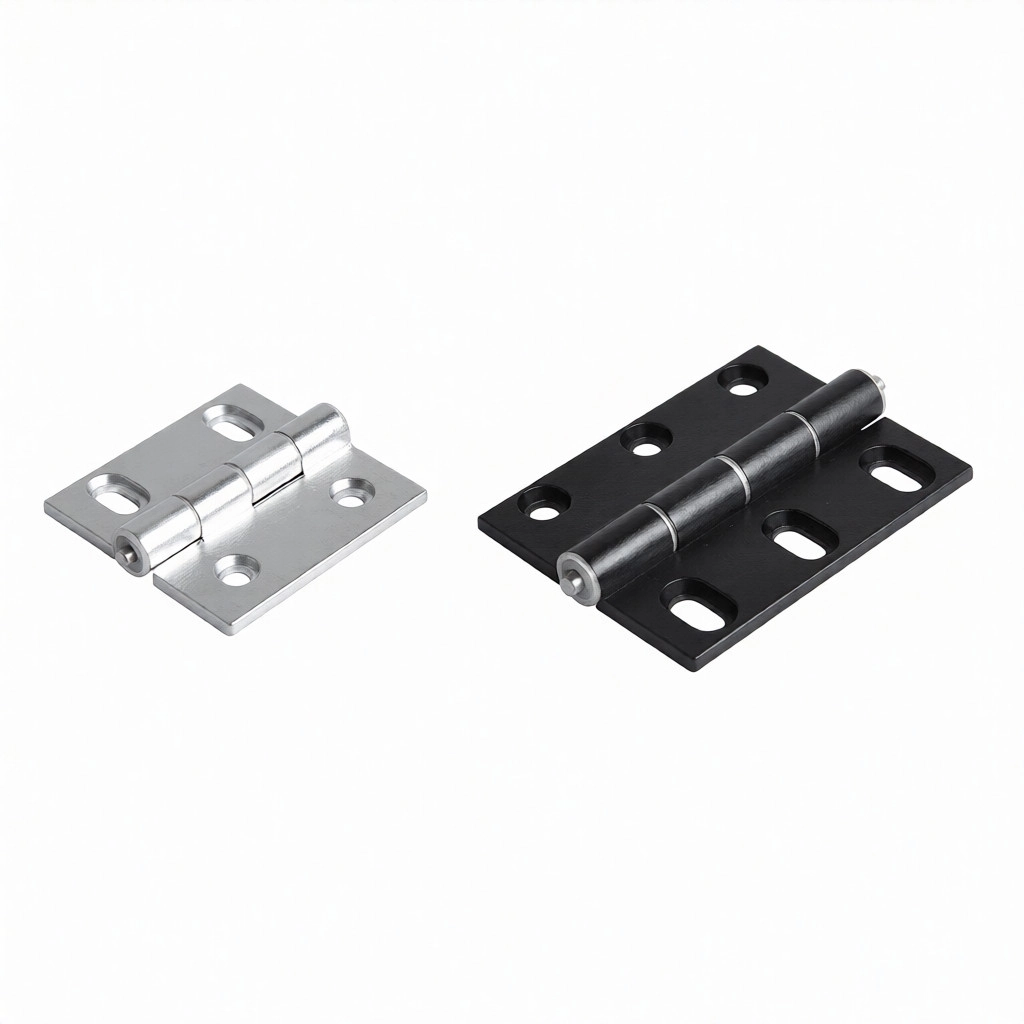

Aluminum Hinges

A6063 anodized aluminum fixed-type hinges for general-purpose aluminum profile enclosures. Available in two code variants (XAKQ01 / XAKQ03) with countersunk hole (Z) design. Wide size range from 48×47 to 62×79 mm covers most standard 48 and 62 series profile applications.

A6063 Aluminum Alloy

Anodized

Request Quote

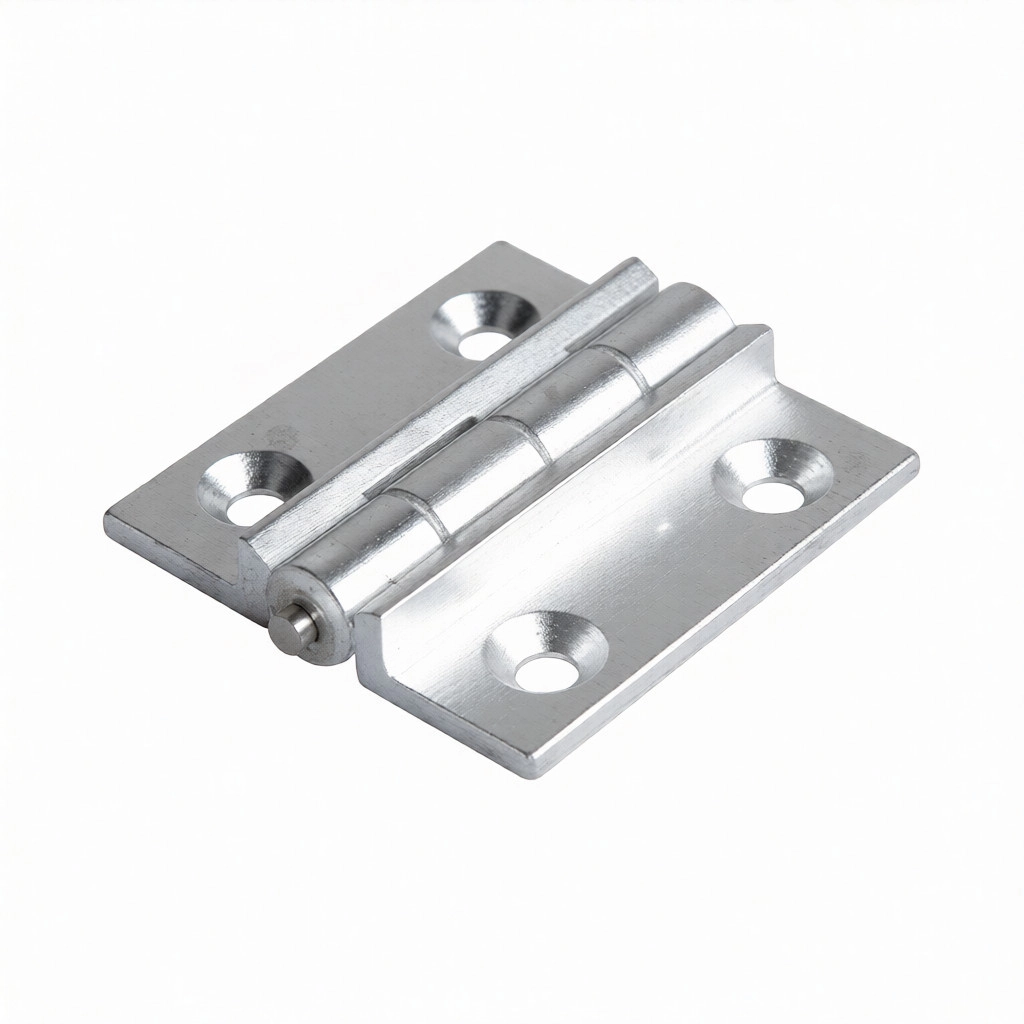

Aluminum Detent Hinges

A6063 anodized aluminum detent hinges that self-position and hold panels open at a defined angle (135°). The internal detent mechanism provides a positive stop, preventing uncontrolled panel movement. Countersunk hole (Z) design for 62 series profiles.

A6063 Aluminum Alloy

Request Quote

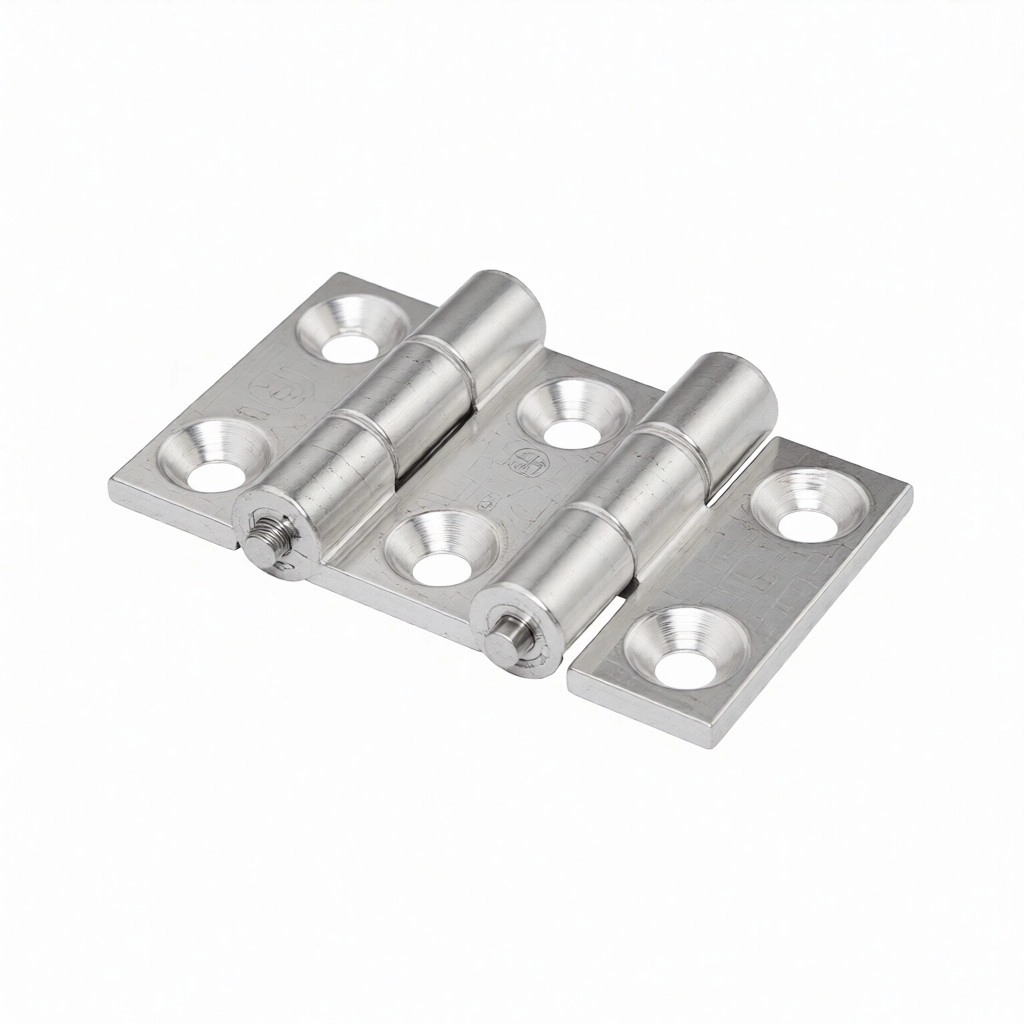

Aluminum Double Pivot Hinges

A6063 anodized aluminum double pivot hinges featuring two pivot barrels for wide-angle opening and offset panel mounting. The dual-pivot design allows the panel to clear the profile frame during opening, enabling 180°+ opening angles. Available for 79 and 104 series profiles in 7 spec variants.

A6063 Aluminum Alloy

Request Quote

ISO 9001:2015

Certified quality management system

Material Test Certificates

MTC available on request for all products

Flexible MOQ

Small batch orders accepted — no strict minimum order quantity

24h RFQ Response

Technical team responds within one business day

Technical FAQ

Engineering Questions Answered

Common questions from system integrators and mechanical engineers.

Need a Custom Specification?

Submit your BOM or technical drawing and our engineering team will confirm availability, pricing, and lead time within 24 business hours. OEM and custom specifications are welcome.
