Nylon Hinges
Black PA fixed-type hinges for compatible aluminum-profile doors and panels. The hinges are installed with screws and nuts and are available in listed countersunk (Z) and counterbored (Y) hole variants.
Material
PA (Nylon)
Hole Shape
Countersunk / Counterbored
Profile Series
30 / 40
Screws
Not included
Part Number System
Code + Type + Hole Shape + Specs — Example: XAKQ52-G-Z-4040

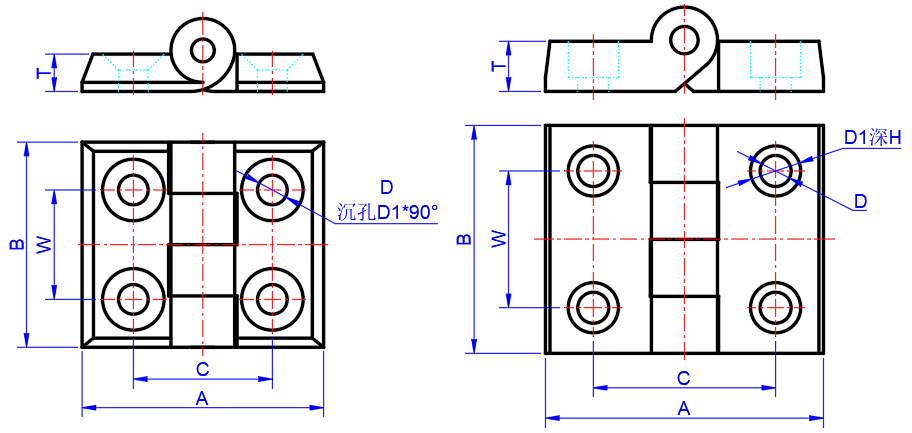

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Specs | A | B | C | W | T | D | D1 | H | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ52 | G | Z | 3030 | 52 | 45 | 30 | 24 | 8 | 6.5 | 12.5 | — | 4 |
| 3040 | 60 | 45 | 35 | 24 | 8 | 6.5 | 12.5 | — | 4 | |||
| 4040 | 60 | 50 | 40 | 30 | 11 | 6.8 | 11 | 8 | 4 |
Key Features
Lightweight Nylon Body
PA nylon construction reduces overall enclosure weight while providing adequate strength for light-duty panel applications.
Screw-and-Nut Mounting
Install the hinge using screws and matching nuts selected for the listed hole and profile dimensions.
PA Material
Nylon material is inherently resistant to moisture, mild chemicals, and atmospheric corrosion, suitable for humid environments.
Fixed-Type Pivot
Standard fixed-type hinge design provides reliable, repeatable panel opening and closing for inspection doors and covers.
Multi-Series Compatible
Available in 3030, 3040, and 4040 spec variants to match standard 30 and 40 series aluminum profile systems.
Countersunk Hole Option
Z-type countersunk holes allow flush screw installation, maintaining a clean panel surface without protruding fastener heads.
Typical Applications
Inspection Covers
Light-duty access panels on automation frames and machine guards requiring frequent opening.
Electronic Enclosures
Control box doors on aluminum profile frames where weight reduction is a priority.
Controlled-Environment Requests
PA construction for compatible access panels and equipment covers; confirm any controlled-environment requirements separately.
