Aluminum Hinges with Slotted Holes
XAKQ01 / XAKQ03
A6063 anodized aluminum hinges with slotted mounting holes (Y-type) for precise panel alignment and position adjustment. The elongated slot (C1=5mm) allows lateral fine-tuning after initial installation. Available for 62 series profiles in three height variants.
Material
A6063 Aluminum Alloy
Hole Shape
Slotted (Y-type, C1=5mm)
Profile Series
62
Adjustment
Lateral fine-tuning
Part Number System
Code + Type + Hole Shape + Specs — Example: XAKQ01-G-Y-6263
Dimensions & Series Compatibility

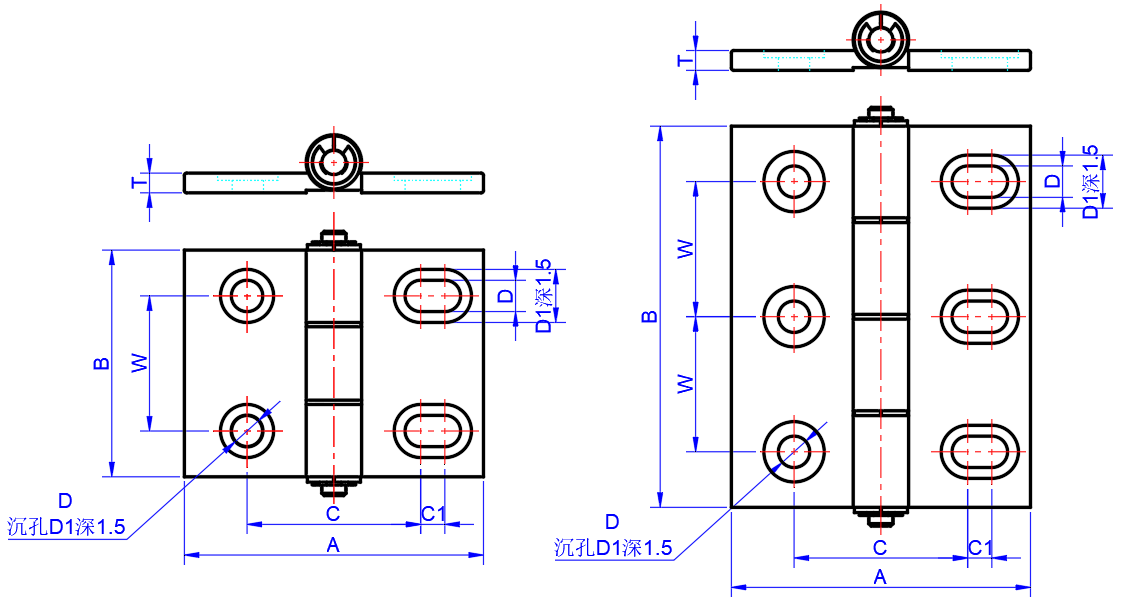

All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Specs | A | B | C | C1 | W | T | D | D1 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ01 / XAKQ03 | G | Y | 6247 | 62 | 47 | 36 | 5 | 28 | 3.5 | 6.5 | 11 | 4 |
| 6263 | 62 | 63 | 36 | 5 | 37 | 3.5 | 6.5 | 11 | 4 | |||
| 6279 | 62 | 79 | 36 | 5 | 28 | 3.5 | 6.5 | 11 | 6 |
Key Features
Slotted Hole Adjustment
Y-type slotted holes (C1=5mm) allow lateral position adjustment after initial installation for precise panel alignment.
A6063 Anodized Aluminum
Lightweight anodized aluminum construction for general-purpose industrial enclosure applications.
Three Height Variants
Available in 6247, 6263, and 6279 specs to accommodate different panel heights on 62 series profiles.
Counterbored Slot Design
Counterbored slotted holes accept standard M6 socket head cap screws, allowing adjustment without full disassembly.
Fixed-Type Pivot
Standard fixed-type hinge provides reliable, repeatable panel opening for inspection doors and access covers.
Two Code Variants
XAKQ01 and XAKQ03 variants offer dimensional flexibility within the same spec range.
Typical Applications
Precision Panel Alignment
Enclosure doors requiring fine lateral adjustment after installation to achieve flush panel gaps.
Machine Guard Covers
Access panels on automation equipment where panel position needs periodic re-alignment.
Control Cabinet Doors
Electrical enclosure doors on 62 series aluminum profile frames.
