External 90° reinforcement and planar extension connections for T-slot aluminum profile frames. Mounted on the outer face of profile joints, these components are the primary structural fastening solution for industrial automation frames, workstations, and machine guarding.

50+SKUs Available

Source DocumentationDocument requirements agreed for the specific product and source

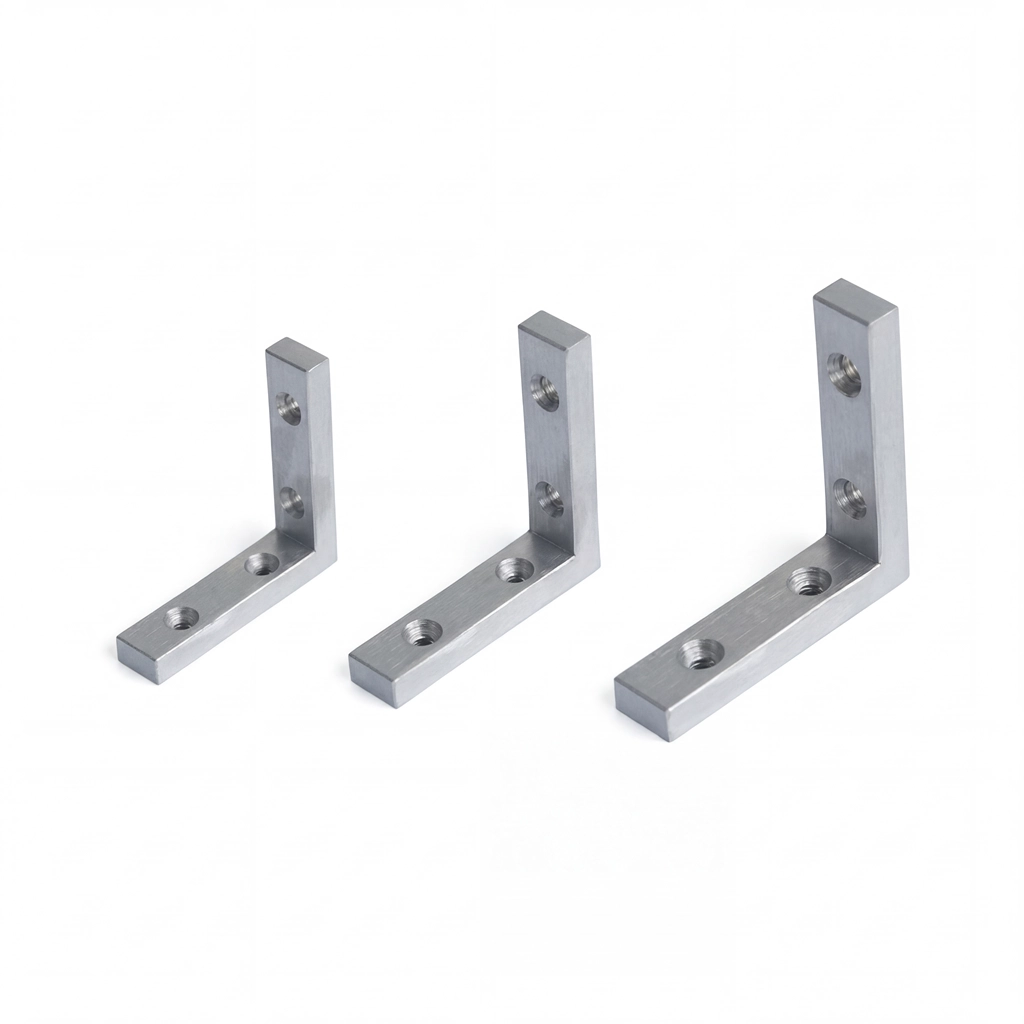

L-Shape Extruded Interior Corner Brackets

A6063 extruded aluminum L-shape brackets designed for slot-mounted interior corner reinforcement in T-slot aluminum profile frame assemblies. The symmetric L-profile provides equal-arm support on both sides of the corner joint. Compatible with EU 30–50 mm and GB 30–40 mm series profiles.

A6063 Aluminum Alloy

Request Quote

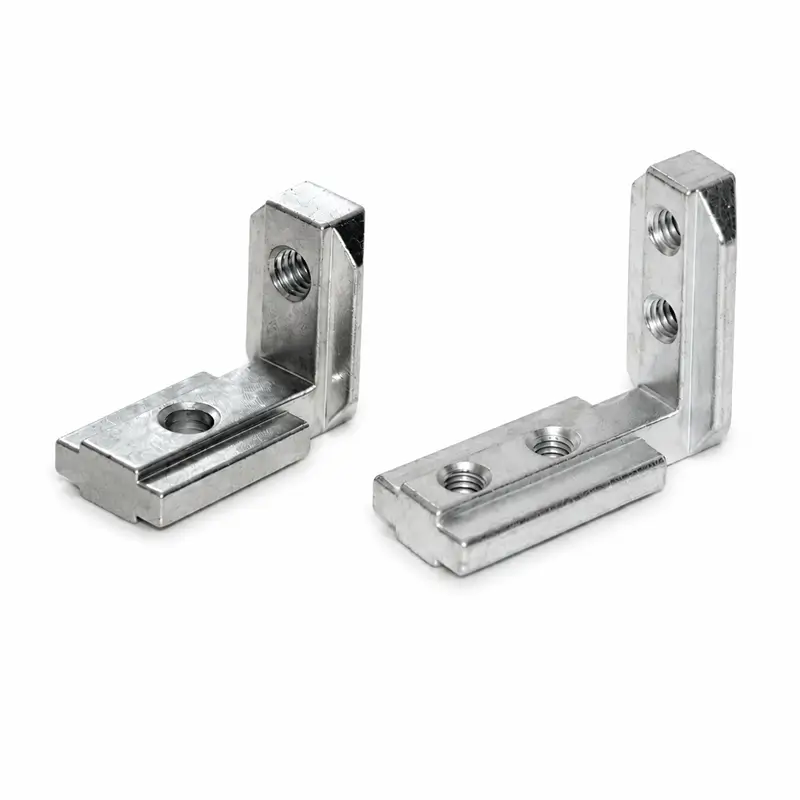

L-Shape Cast Interior Joint Brackets

S45C and SUS304 L-shape brackets for concealed interior corner joints in compatible T-slot aluminum-profile frames. Select XADQ21 or XADQ31 by material, profile series, and listed dimensions.

S45C / SUS304

Request Quote

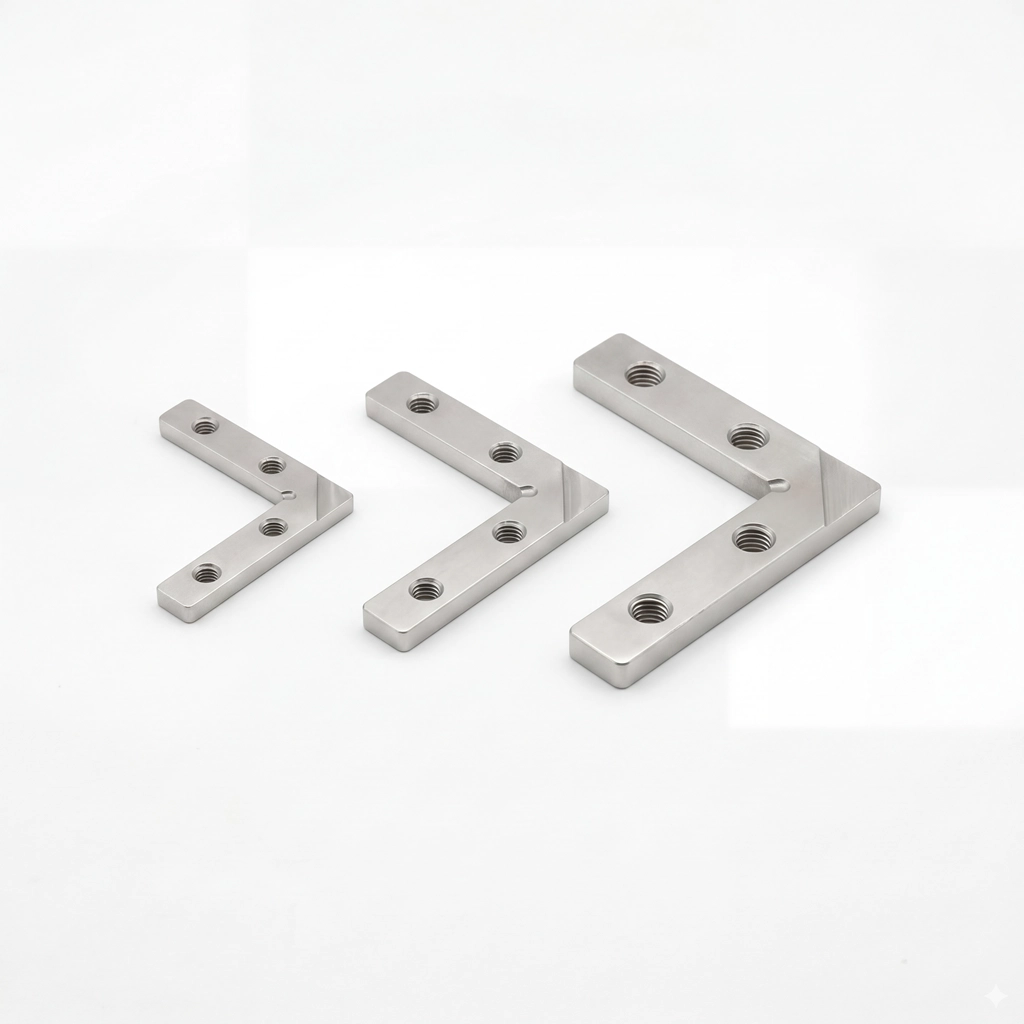

Interior Corner Brackets

Flat-profile interior corner brackets for concealed slot-mounted frame reinforcement. Available in 90° and 135° angle variants, compatible with EU and GB series profiles from 30 to 50 mm. The low-profile design keeps all hardware flush within the profile slot for a clean finish.

SUS304 Stainless Steel

Request Quote

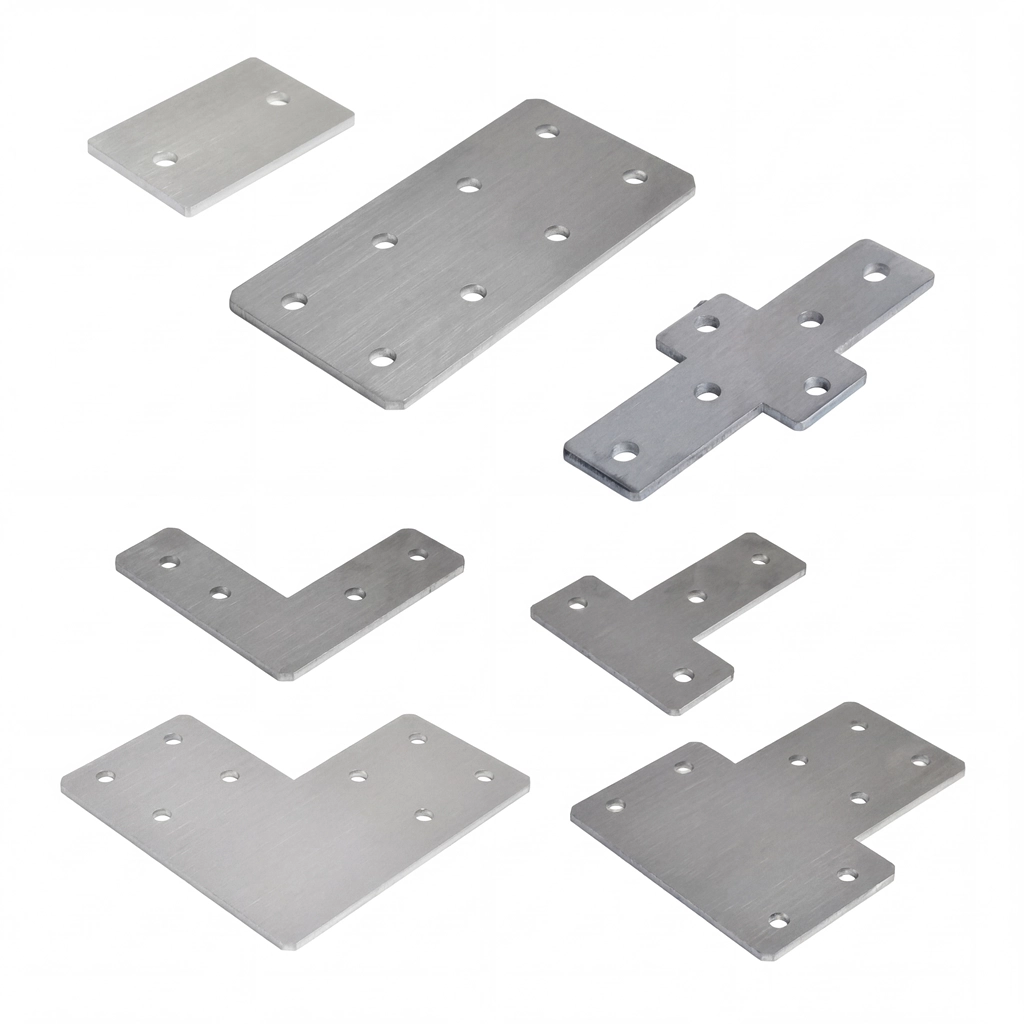

Joining Plates

SUS304 and SPCC joining plates for same-plane aluminum-profile connections. Select the listed Y, X, L, T, or A shape by profile series, dimensions, material, and finish.

SUS304 / SPCC

Request Quote

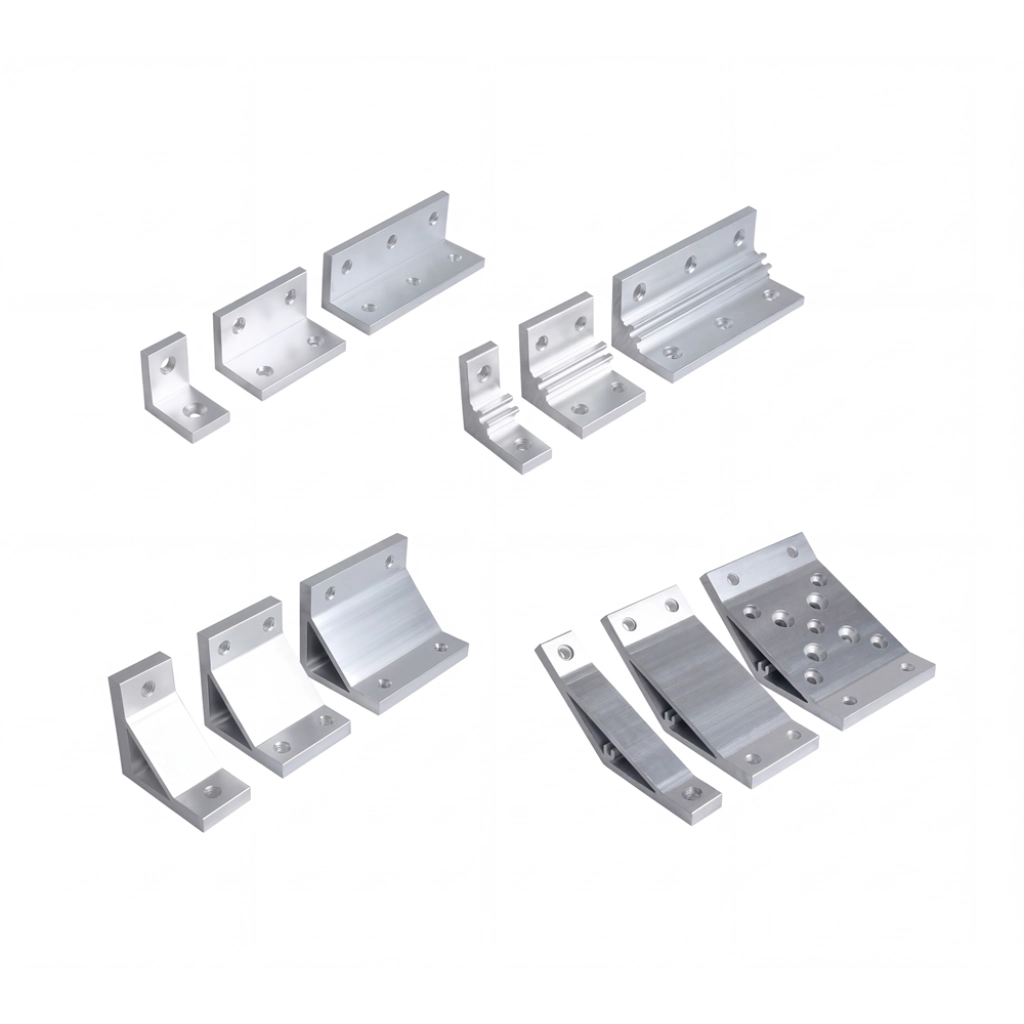

Extruded Corner Brackets

Precision extruded aluminum brackets for T-slot profile frame construction. Available in 8 distinct profile types with flexible mounting configurations for diverse industrial applications.

A6063 Aluminum Alloy

Silver / Black Anodized

Request Quote

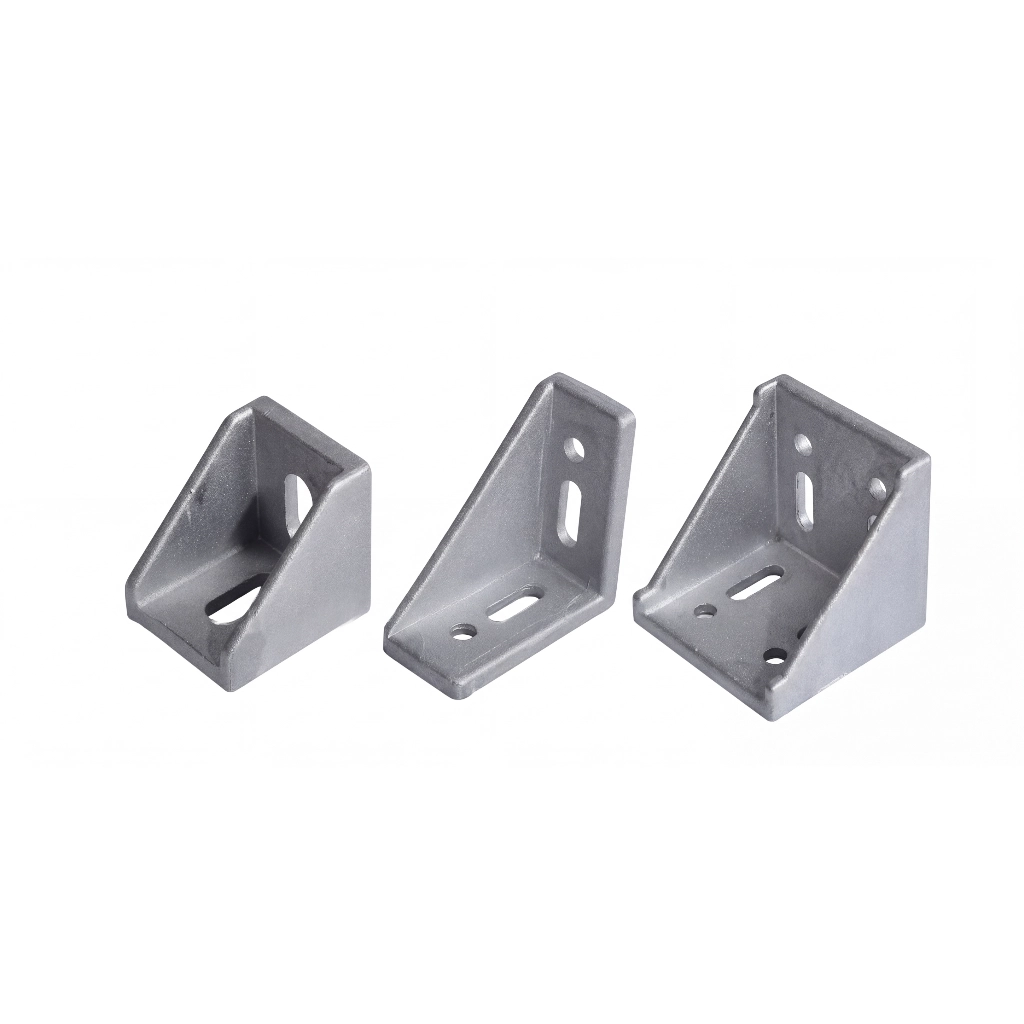

Die-cast Corner Brackets

ADC12 aluminum-alloy 90° corner brackets for compatible T-slot aluminum-profile frames. Available in sandblasted XABB11 and black powder-coated XABB13 variants across the listed EU and GB profile series.

ADC12 Aluminum Alloy

Request Quote

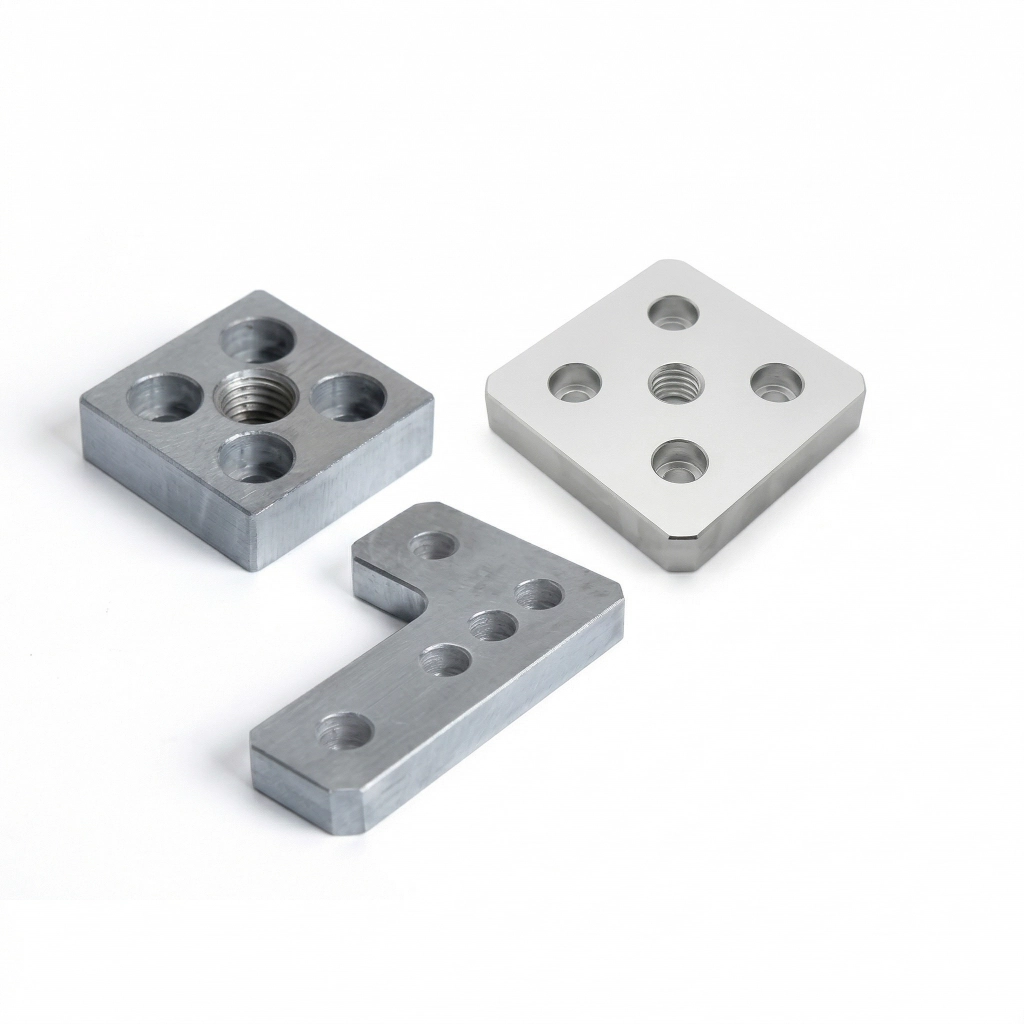

Base Plates for Leveling Feet & Eye Bolts

A6063 silver-anodized and S45C chrome-plated base plates for mounting leveling feet or eye bolts to compatible T-slot aluminum profiles. Select by shape, profile series, material, and listed dimensions.

A6063 / S45C

Anodized / Chrome Plated

Request Quote

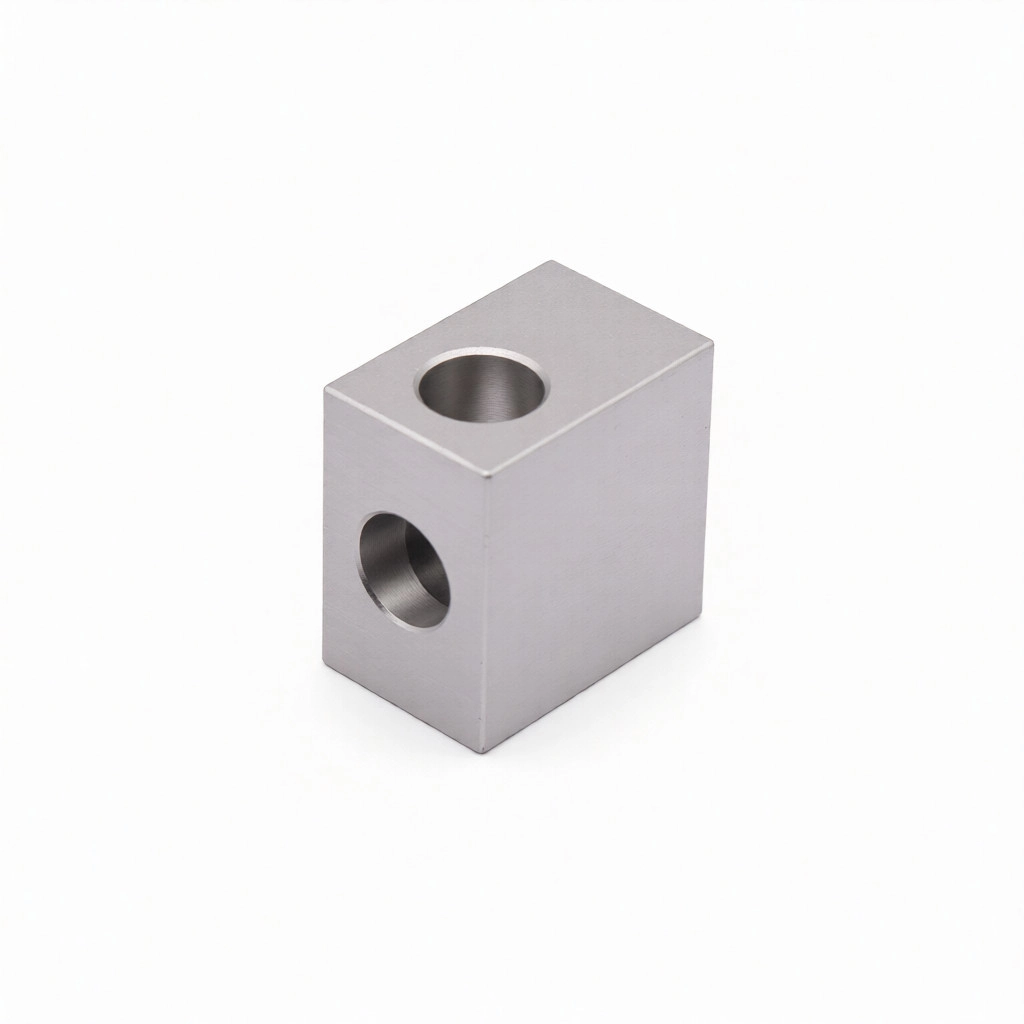

Square Brackets

A6061 silver-anodized square brackets for 90° connections in compatible T-slot aluminum-profile frame assemblies. Select the listed variant by profile series and dimensions.

A6061 Aluminum Alloy

Request Quote

Source Documentation

Document requirements agreed for the specific product and source

Certificates by Agreement

Testing and certificate availability confirmed before order

Order Terms by Source

Minimum quantity and lead time confirmed for each product and source

RFQ Review

Product scope and source requirements reviewed before quotation

Technical FAQ

Engineering Questions Answered

Common questions from system integrators and mechanical engineers.

Need a Custom Specification?

Submit your BOM or technical drawing so we can confirm sourcing availability, pricing, lead time, and order requirements for the selected products and sources.
