Extruded Corner Brackets
A6063 extruded corner brackets for profile connections and panel mounting. XABC02 is sandblasted silver anodized and XABC03 is sandblasted black anodized; eight listed types cover multiple EU and GB series.
Material
Extruded Aluminum
Profile Types
8 Variants
Compatibility
EU & GB Series
Standard Finish
Natural / Anodized
Part Number System
Full part numbers are composed of Code + Series + A + B dimensions.
Example breakdown: Code (XABC02) + Series (206) + A dimension (20mm) + B dimension (14mm) = Full part number (XABC02-206-20-14)
Dimensions & Series Compatibility
All dimensions in millimeters (mm). Each table corresponds to a specific bracket profile type.
Type 1

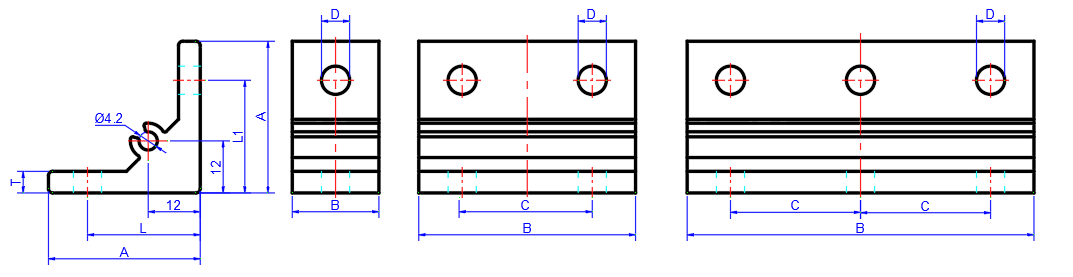

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | L1 | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | 206 | 20 | 14 | - | 5.5 | 14 | 14 | 3 | 2 | EU 20 Slot 6mm |
| 206 | 20 | 34 | 20 | 5.5 | 14 | 14 | 3 | 4 | ||
| 206 | 20 | 54 | 20 | 5.5 | 14 | 14 | 3 | 6 | ||
| 206 | 20 | 15 | - | 5.5 | 15 | 10 | 3 | 2 | ||
| 206 | 20 | 35 | 20 | 5.5 | 15 | 10 | 3 | 4 | ||
| 206 | 20 | 55 | 20 | 5.5 | 15 | 10 | 3 | 6 | ||
| G306/308 | 30 | 20 | - | 6.5 | 20 | 20 | 5 | 2 | GB 30 Slot 6mm EU 30 Slot 8mm | |
| G306/308 | 30 | 50 | 30 | 6.5 | 20 | 20 | 5 | 4 | ||
| G306/308 | 30 | 80 | 30 | 6.5 | 20 | 20 | 5 | 6 | ||
| G306/308 | 30 | 25 | - | 6.5 | 20 | 15 | 5 | 2 | ||
| G306/308 | 30 | 55 | 30 | 6.5 | 20 | 15 | 5 | 4 | ||
| G306/308 | 30 | 85 | 30 | 6.5 | 20 | 15 | 5 | 6 | ||
| G306/308 | 45 | 20 | - | 6.5 | 27 | 27 | 5.7 | 2 | ||
| G306/308 | 45 | 50 | 30 | 6.5 | 27 | 27 | 5.7 | 4 | ||
| G306/308 | 45 | 80 | 30 | 6.5 | 27 | 27 | 5.7 | 6 | ||
| G408/408 | 40 | 35 | - | 6.5 | 30 | 20 | 6 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 40 | 75 | 40 | 6.5 | 30 | 20 | 6 | 4 | ||
| G408/408 | 40 | 115 | 40 | 6.5 | 30 | 20 | 6 | 6 | ||
| G408/408 | 45 | 30 | - | 6.5 | 27 | 27 | 5.7 | 2 | ||
| G408/408 | 45 | 70 | 40 | 6.5 | 27 | 27 | 5.7 | 4 | ||
| G408/408 | 45 | 110 | 40 | 6.5 | 27 | 27 | 5.7 | 6 | ||
| 4010 | 40 | 35 | - | 8.5 | 30 | 20 | 6 | 2 | EU 40 Slot 10mm | |
| 4010 | 40 | 75 | 40 | 8.5 | 30 | 20 | 6 | 4 | ||
| 4010 | 40 | 115 | 40 | 8.5 | 30 | 20 | 6 | 6 | ||
| 4010 | 45 | 30 | - | 8.5 | 27 | 27 | 5.7 | 2 | ||
| 4010 | 45 | 70 | 40 | 8.5 | 27 | 27 | 5.7 | 4 | ||
| 4010 | 45 | 110 | 40 | 8.5 | 27 | 27 | 5.7 | 6 |
Type 2

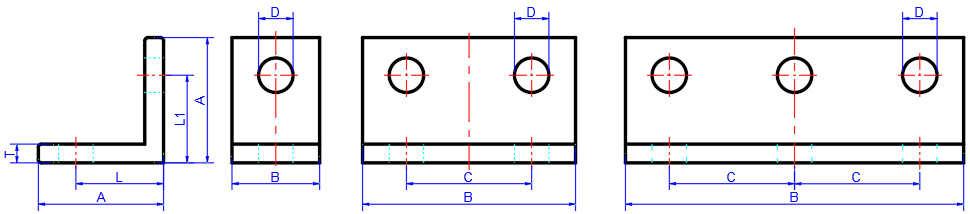

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | 206 | 35 | 14 | - | 5.5 | 26 | 5 | 2 | EU 20 Slot 6mm |
| 206 | 35 | 34 | 20 | 5.5 | 26 | 5 | 4 | ||
| 206 | 35 | 54 | 20 | 5.5 | 26 | 5 | 6 | ||
| G306/308 | 35 | 20 | - | 6.5 | 26 | 5 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm | |
| G306/308 | 35 | 50 | 30 | 6.5 | 26 | 5 | 4 | ||
| G306/308 | 35 | 80 | 30 | 6.5 | 26 | 5 | 6 | ||
| G408/408 | 35 | 30 | - | 6.5 | 26 | 5 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 35 | 70 | 40 | 6.5 | 26 | 5 | 4 | ||
| G408/408 | 35 | 110 | 40 | 6.5 | 26 | 5 | 6 | ||
| 4010 | 35 | 30 | - | 8.5 | 26 | 5 | 2 | EU 40 Slot 10mm | |
| 4010 | 35 | 70 | 40 | 8.5 | 26 | 5 | 4 | ||
| 4010 | 35 | 110 | 40 | 8.5 | 26 | 5 | 6 | ||
| 4510 | 35 | 35 | - | 8.5 | 26 | 5 | 2 | EU 45 Slot 10mm | |
| 4510 | 35 | 80 | 45 | 8.5 | 26 | 5 | 4 | ||
| 5010 | 35 | 40 | - | 8.5 | 26 | 5 | 2 | EU 50 Slot 10mm | |
| 5010 | 35 | 90 | 50 | 8.5 | 26 | 5 | 4 |
Type 3

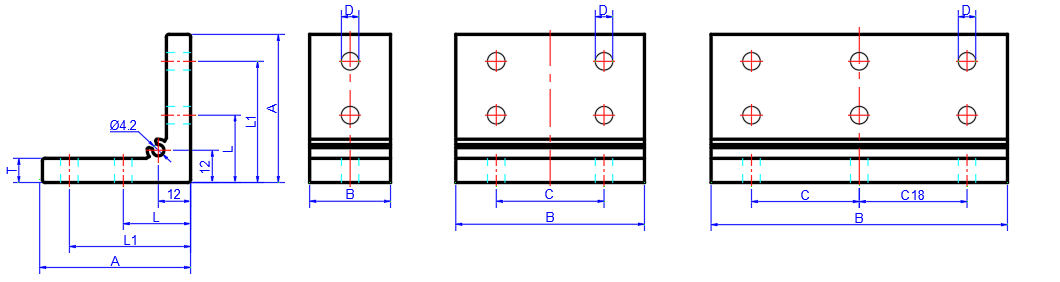

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | L1 | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | 206 | 55 | 14 | - | 5.5 | 25 | 45 | 9 | 2 | EU 20 Slot 6mm |
| 206 | 55 | 34 | 20 | 5.5 | 25 | 45 | 9 | 4 | ||
| 206 | 55 | 54 | 20 | 5.5 | 25 | 45 | 9 | 6 | ||
| G306/308 | 55 | 20 | - | 6.5 | 25 | 45 | 9 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm | |
| G306/308 | 55 | 50 | 30 | 6.5 | 25 | 45 | 9 | 4 | ||
| G306/308 | 55 | 80 | 30 | 6.5 | 25 | 45 | 9 | 6 | ||
| G408/408 | 55 | 30 | - | 6.5 | 25 | 45 | 9 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 55 | 70 | 40 | 6.5 | 25 | 45 | 9 | 4 | ||
| G408/408 | 55 | 110 | 40 | 6.5 | 25 | 45 | 9 | 6 | ||
| 4010 | 55 | 30 | - | 8.5 | 25 | 45 | 9 | 2 | EU 40 Slot 10mm | |
| 4010 | 55 | 70 | 40 | 8.5 | 25 | 45 | 9 | 4 | ||
| 4010 | 55 | 110 | 40 | 8.5 | 25 | 45 | 9 | 6 | ||
| 4510 | 55 | 35 | - | 8.5 | 25 | 45 | 9 | 2 | EU 45 Slot 10mm | |
| 4510 | 55 | 80 | 45 | 8.5 | 25 | 45 | 9 | 4 | ||
| 5010 | 55 | 40 | - | 8.5 | 25 | 45 | 9 | 2 | EU 50 Slot 10mm | |
| 5010 | 55 | 90 | 50 | 8.5 | 25 | 45 | 9 | 4 |
Type 4

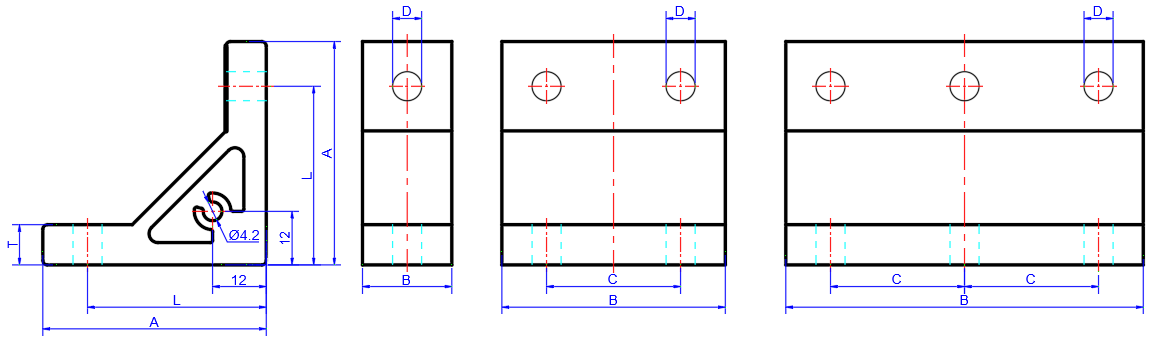

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | 206 | 50 | 14 | - | 5.5 | 40 | 9 | 2 | EU 20 Slot 6mm |
| 206 | 50 | 34 | 20 | 5.5 | 40 | 9 | 4 | ||
| 206 | 50 | 54 | 20 | 5.5 | 40 | 9 | 6 | ||
| G306/308 | 50 | 20 | - | 6.5 | 40 | 9 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm | |
| G306/308 | 50 | 50 | 30 | 6.5 | 40 | 9 | 4 | ||
| G306/308 | 50 | 80 | 30 | 6.5 | 40 | 9 | 6 | ||
| G408/408 | 50 | 30 | - | 6.5 | 40 | 9 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 50 | 70 | 40 | 6.5 | 40 | 9 | 4 | ||
| G408/408 | 50 | 110 | 40 | 6.5 | 40 | 9 | 6 | ||
| 4010 | 50 | 30 | - | 8.5 | 40 | 9 | 2 | EU 40 Slot 10mm | |
| 4010 | 50 | 70 | 40 | 8.5 | 40 | 9 | 4 | ||
| 4010 | 50 | 110 | 40 | 8.5 | 40 | 9 | 6 | ||
| 4510 | 50 | 35 | - | 8.5 | 40 | 9 | 2 | EU 45 Slot 10mm | |
| 4510 | 50 | 80 | 45 | 8.5 | 40 | 9 | 4 | ||
| 5010 | 50 | 40 | - | 8.5 | 40 | 9 | 2 | EU 50 Slot 10mm | |
| 5010 | 50 | 90 | 50 | 8.5 | 40 | 9 | 4 | ||
| 206 | 60 | 14 | - | 5.5 | 50 | 9 | 2 | EU 20 Slot 6mm | |
| 206 | 60 | 34 | 20 | 5.5 | 50 | 9 | 4 | ||
| 206 | 60 | 54 | 20 | 5.5 | 50 | 9 | 6 | ||
| G306/308 | 60 | 20 | - | 6.5 | 50 | 9 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm | |
| G306/308 | 60 | 50 | 30 | 6.5 | 50 | 9 | 4 | ||
| G306/308 | 60 | 80 | 30 | 6.5 | 50 | 9 | 6 | ||
| G408/408 | 60 | 30 | - | 6.5 | 50 | 9 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 60 | 70 | 40 | 6.5 | 50 | 9 | 4 | ||
| G408/408 | 60 | 110 | 40 | 6.5 | 50 | 9 | 6 | ||
| 4010 | 60 | 30 | - | 8.5 | 50 | 9 | 2 | EU 40 Slot 10mm | |
| 4010 | 60 | 70 | 40 | 8.5 | 50 | 9 | 4 | ||
| 4010 | 60 | 110 | 40 | 8.5 | 50 | 9 | 6 | ||
| 4510 | 60 | 35 | - | 8.5 | 50 | 9 | 2 | EU 45 Slot 10mm | |
| 4510 | 60 | 80 | 45 | 8.5 | 50 | 9 | 4 | ||
| 5010 | 60 | 40 | - | 8.5 | 50 | 9 | 2 | EU 50 Slot 10mm | |
| 5010 | 60 | 90 | 50 | 8.5 | 50 | 9 | 4 | ||
| G306/308 | 80 | 20 | - | 6.5 | 70 | 12 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm | |
| G306/308 | 80 | 50 | 30 | 6.5 | 70 | 12 | 4 | ||
| G306/308 | 80 | 80 | 30 | 6.5 | 70 | 12 | 6 | ||
| G408/408 | 80 | 30 | - | 6.5 | 70 | 12 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 80 | 70 | 40 | 6.5 | 70 | 12 | 4 | ||
| G408/408 | 80 | 110 | 40 | 6.5 | 70 | 12 | 6 | ||
| 4010 | 80 | 30 | - | 8.5 | 70 | 12 | 2 | EU 40 Slot 10mm | |
| 4010 | 80 | 70 | 40 | 8.5 | 70 | 12 | 4 | ||
| 4010 | 80 | 110 | 40 | 8.5 | 70 | 12 | 6 | ||
| 4510 | 80 | 35 | - | 8.5 | 70 | 12 | 2 | EU 45 Slot 10mm | |
| 4510 | 80 | 80 | 45 | 8.5 | 70 | 12 | 4 | ||
| 5010 | 80 | 40 | - | 8.5 | 70 | 12 | 2 | EU 50 Slot 10mm | |
| 5010 | 80 | 90 | 50 | 8.5 | 70 | 12 | 4 |
Type 5

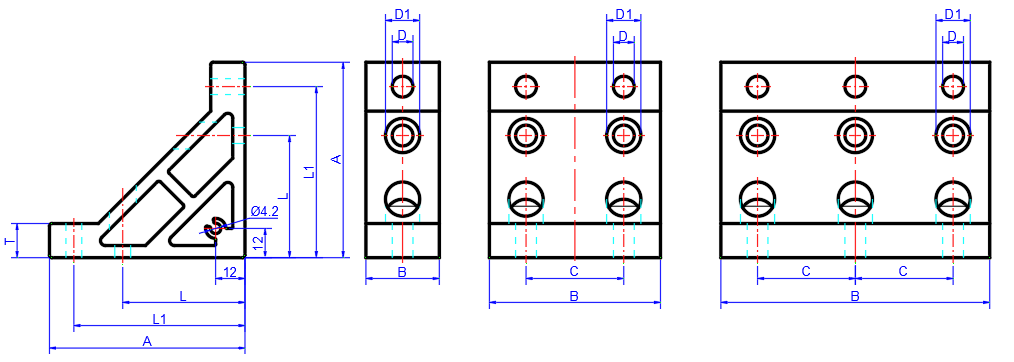

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | L1 | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | G306/308 | 80B | 20 | - | 6.5 | 50 | 70 | 14 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm |
| G306/308 | 80B | 50 | 30 | 6.5 | 50 | 70 | 14 | 4 | ||
| G306/308 | 80B | 80 | 30 | 6.5 | 50 | 70 | 14 | 6 | ||
| G408/408 | 80B | 30 | - | 6.5 | 50 | 70 | 14 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 80B | 70 | 40 | 6.5 | 50 | 70 | 14 | 4 | ||
| G408/408 | 80B | 110 | 40 | 6.5 | 50 | 70 | 14 | 6 | ||
| 4010 | 80B | 30 | - | 8.5 | 50 | 70 | 14 | 2 | EU 40 Slot 10mm | |
| 4010 | 80B | 70 | 40 | 8.5 | 50 | 70 | 14 | 4 | ||
| 4010 | 80B | 110 | 40 | 8.5 | 50 | 70 | 14 | 6 | ||
| 4510 | 80B | 35 | - | 8.5 | 50 | 70 | 14 | 2 | EU 45 Slot 10mm | |
| 4510 | 80B | 80 | 45 | 8.5 | 50 | 70 | 14 | 4 | ||
| 5010 | 80B | 40 | - | 8.5 | 50 | 70 | 14 | 2 | EU 50 Slot 10mm | |
| 5010 | 80B | 90 | 50 | 8.5 | 50 | 70 | 14 | 4 |
Type 6

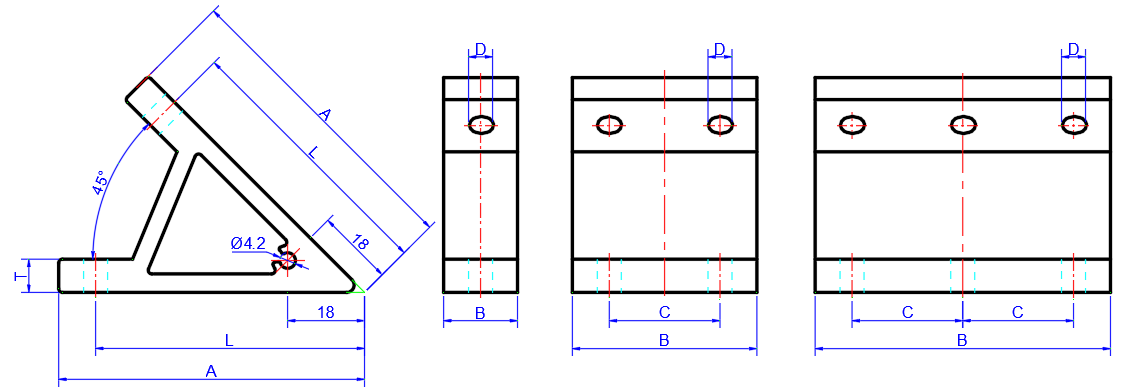

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | L1 | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | G306/308 | 90 | 20 | - | 6.5 | 45 | 80 | 12 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm |
| G306/308 | 90 | 50 | 30 | 6.5 | 45 | 80 | 12 | 4 | ||
| G306/308 | 90 | 80 | 30 | 6.5 | 45 | 80 | 12 | 6 | ||
| G408/408 | 90 | 30 | - | 6.5 | 45 | 80 | 12 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 90 | 70 | 40 | 6.5 | 45 | 80 | 12 | 4 | ||
| G408/408 | 90 | 110 | 40 | 6.5 | 45 | 80 | 12 | 6 | ||
| 4010 | 90 | 30 | - | 8.5 | 45 | 80 | 12 | 2 | EU 40 Slot 10mm | |
| 4010 | 90 | 70 | 40 | 8.5 | 45 | 80 | 12 | 4 | ||
| 4010 | 90 | 110 | 40 | 8.5 | 45 | 80 | 12 | 6 | ||
| 4510 | 90 | 35 | - | 8.5 | 45 | 80 | 12 | 2 | EU 45 Slot 10mm | |
| 4510 | 90 | 80 | 45 | 8.5 | 45 | 80 | 12 | 4 | ||
| 5010 | 90 | 40 | - | 8.5 | 45 | 80 | 12 | 2 | EU 50 Slot 10mm | |
| 5010 | 90 | 90 | 50 | 8.5 | 45 | 80 | 12 | 4 |
Type 7

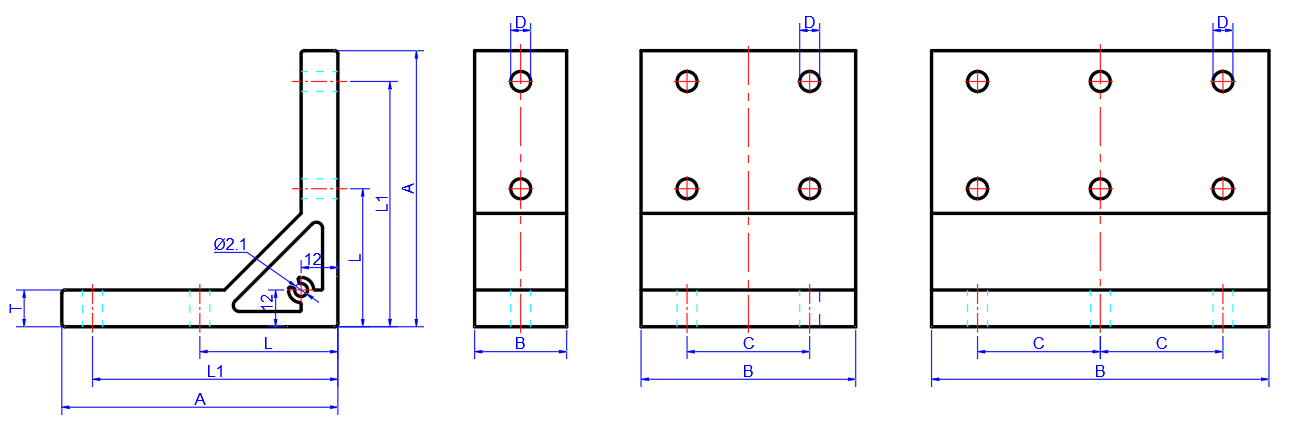

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | 206 | 80A | 14 | - | 5.5 | 70 | 9 | 2 | EU 20 Slot 6mm |
| 206 | 80A | 34 | 20 | 5.5 | 70 | 9 | 4 | ||
| 206 | 80A | 54 | 20 | 5.5 | 70 | 9 | 6 | ||
| G306/308 | 80A | 20 | - | 6.5 | 70 | 9 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm | |
| G306/308 | 80A | 50 | 30 | 6.5 | 70 | 9 | 4 | ||
| G306/308 | 80A | 80 | 30 | 6.5 | 70 | 9 | 6 | ||
| G408/408 | 80A | 30 | - | 6.5 | 70 | 9 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 80A | 70 | 40 | 6.5 | 70 | 9 | 4 | ||
| G408/408 | 80A | 110 | 40 | 6.5 | 70 | 9 | 6 | ||
| 4010 | 80A | 30 | - | 8.5 | 70 | 9 | 2 | EU 40 Slot 10mm | |
| 4010 | 80A | 70 | 40 | 8.5 | 70 | 9 | 4 | ||
| 4010 | 80A | 110 | 40 | 8.5 | 70 | 9 | 6 | ||
| 4510 | 80A | 35 | - | 8.5 | 70 | 9 | 2 | EU 45 Slot 10mm | |
| 4510 | 80A | 80 | 45 | 8.5 | 70 | 9 | 4 | ||
| 5010 | 80A | 40 | - | 8.5 | 70 | 9 | 2 | EU 50 Slot 10mm | |
| 5010 | 80A | 90 | 50 | 8.5 | 70 | 9 | 4 |
Type 8

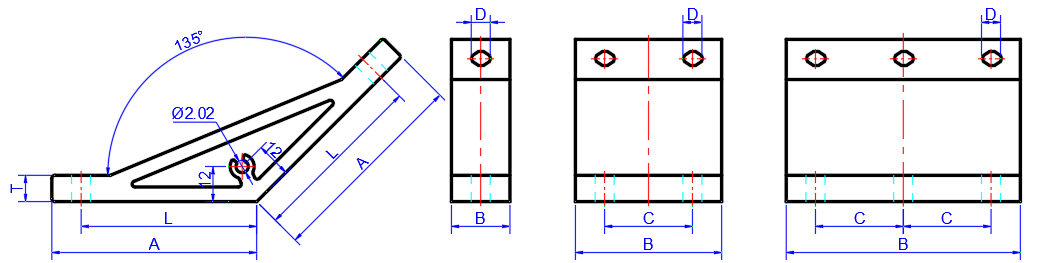

Dimension Drawing
Specifications
| Code | Series | A | B | C | D | L | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|
| XABC02/XABC03 | 206 | 70 | 14 | - | 5.5 | 60 | 9 | 2 | EU 20 Slot 6mm |
| 206 | 70 | 34 | 20 | 5.5 | 60 | 9 | 4 | ||
| 206 | 70 | 54 | 20 | 5.5 | 60 | 9 | 6 | ||
| G306/308 | 70 | 20 | - | 6.5 | 60 | 9 | 2 | GB 30 Slot 6mm EU 40 Slot 8mm | |
| G306/308 | 70 | 50 | 30 | 6.5 | 60 | 9 | 4 | ||
| G306/308 | 70 | 80 | 30 | 6.5 | 60 | 9 | 6 | ||
| G408/408 | 70 | 30 | - | 6.5 | 60 | 9 | 2 | GB 40 Slot 8mm EU 40 Slot 8mm | |
| G408/408 | 70 | 70 | 40 | 6.5 | 60 | 9 | 4 | ||
| G408/408 | 70 | 110 | 40 | 6.5 | 60 | 9 | 6 | ||
| 4010 | 70 | 30 | - | 8.5 | 60 | 9 | 2 | EU 40 Slot 10mm | |
| 4010 | 70 | 70 | 40 | 8.5 | 60 | 9 | 4 | ||
| 4010 | 70 | 110 | 40 | 8.5 | 60 | 9 | 6 | ||
| 4510 | 70 | 35 | - | 8.5 | 60 | 9 | 2 | EU 45 Slot 10mm | |
| 4510 | 70 | 80 | 45 | 8.5 | 60 | 9 | 4 | ||
| 5010 | 70 | 40 | - | 8.5 | 60 | 9 | 2 | EU 50 Slot 10mm | |
| 5010 | 70 | 90 | 50 | 8.5 | 60 | 9 | 4 |
Key Features
8 Profile Variants
Comprehensive range covering square, rectangular, diagonal, and specialty bracket types for diverse frame configurations.
A6063 Extruded Construction
Select the listed XABC02 or XABC03 variant by profile type, dimensions, and anodized finish.
Listed Profile Compatibility
Compatibility is defined by the EU and GB profile series and dimensions shown in the specification table.
Multiple Series
Available in 206, G306/308, G408/408, 4010, 4510, and 5010 series for different load and application requirements.
Fastener-Based Assembly
T-nut and bolt installation requires no drilling or welding, enabling rapid frame assembly and reconfiguration.
OEM & Custom Options
Custom requests require drawings, quantities, and source confirmation.
Typical Applications
Automation Equipment Frames
Structural frames for robotic cells, automated assembly lines, and pick-and-place systems.
Workbench & Workstation Systems
Modular workstations, ESD-safe assembly tables, and height-adjustable lean manufacturing benches.
Conveyor & Material Handling
Conveyor frame support structures, guide rail systems, and material storage rack frames.
Machine Guarding
Safety enclosures and protective covers for CNC machines, press equipment, and industrial machinery.
Display & Exhibition Structures
Trade show booths, retail display frames, and modular exhibition systems.
Controlled-Environment Frames
Profile-frame partitions where the listed bracket material, finish, and dimensions meet the project requirements.
Technical FAQ
Related Products
More from Brackets & Joining Plates
XADM01
L-Shape Extruded Interior Corner Brackets
A6063 extruded aluminum L-shape brackets designed for slot-mounted interior corner reinforcement in T-slot aluminum profile frame assemblies. The symmetric L-profile provides equal-arm support on both sides of the corner joint. Compatible with EU 30–50 mm and GB 30–40 mm series profiles.
XADQ21 · XADQ31
L-Shape Cast Interior Joint Brackets
S45C and SUS304 L-shape brackets for concealed interior corner joints in compatible T-slot aluminum-profile frames. Select XADQ21 or XADQ31 by material, profile series, and listed dimensions.
XADN31
Interior Corner Brackets
Flat-profile interior corner brackets for concealed slot-mounted frame reinforcement. Available in 90° and 135° angle variants, compatible with EU and GB series profiles from 30 to 50 mm. The low-profile design keeps all hardware flush within the profile slot for a clean finish.
XACC31 · XACC21
Joining Plates
SUS304 and SPCC joining plates for same-plane aluminum-profile connections. Select the listed Y, X, L, T, or A shape by profile series, dimensions, material, and finish.
Ready to Get Started?
Send the product code, quantity, profile details, destination, and required documents for source review and quotation
