1. Choose the installation type
Use a post-assembly family when the profile end is closed. Use an end-feed family when an open profile end is available.
9 Listed Product Families · Dimension-Based Compatibility
T-Slot Nuts & Bolts: Types, Sizes and Selection
Browse roll-in, sliding, spring-retained, hammer-head, square-nut, and T-bolt families. Match each product by profile system, slot opening, thread size, and critical dimensions before ordering.
What to Include in Your RFQ
These details help us identify the relevant product family and confirm the requested source before quotation.
- Profile system or supplier
- Profile series
- Slot opening
- Required thread size
- Installation requirements
- Order quantity
- Delivery destination
- BOM, drawing, or required documents
Browse T-Slot Nut & Bolt Families
Open a product page to review available series, thread sizes, dimensions, materials, and surface finishes. Compatibility should be confirmed against the profile and slot dimensions used in your project.
T-Slot nut selection guide
Compare installation, profile and thread options
Start with the available profile access, then match the profile system, slot opening and metric thread. Open the product page for the exact dimensions, material and finish available for each model row.
2. Match the profile and thread
Select the GB or EU system, exact profile series, measured slot opening and metric thread shown in the same product row.
3. Choose temporary retention
A spring ball or leaf holds the nut temporarily before tightening. It does not create the final clamping force, which comes from the tightened bolt.
Compare the nine product families
The ranges below help narrow the family. Use the linked product page to select the exact model, series, thread and dimensions for your profile.

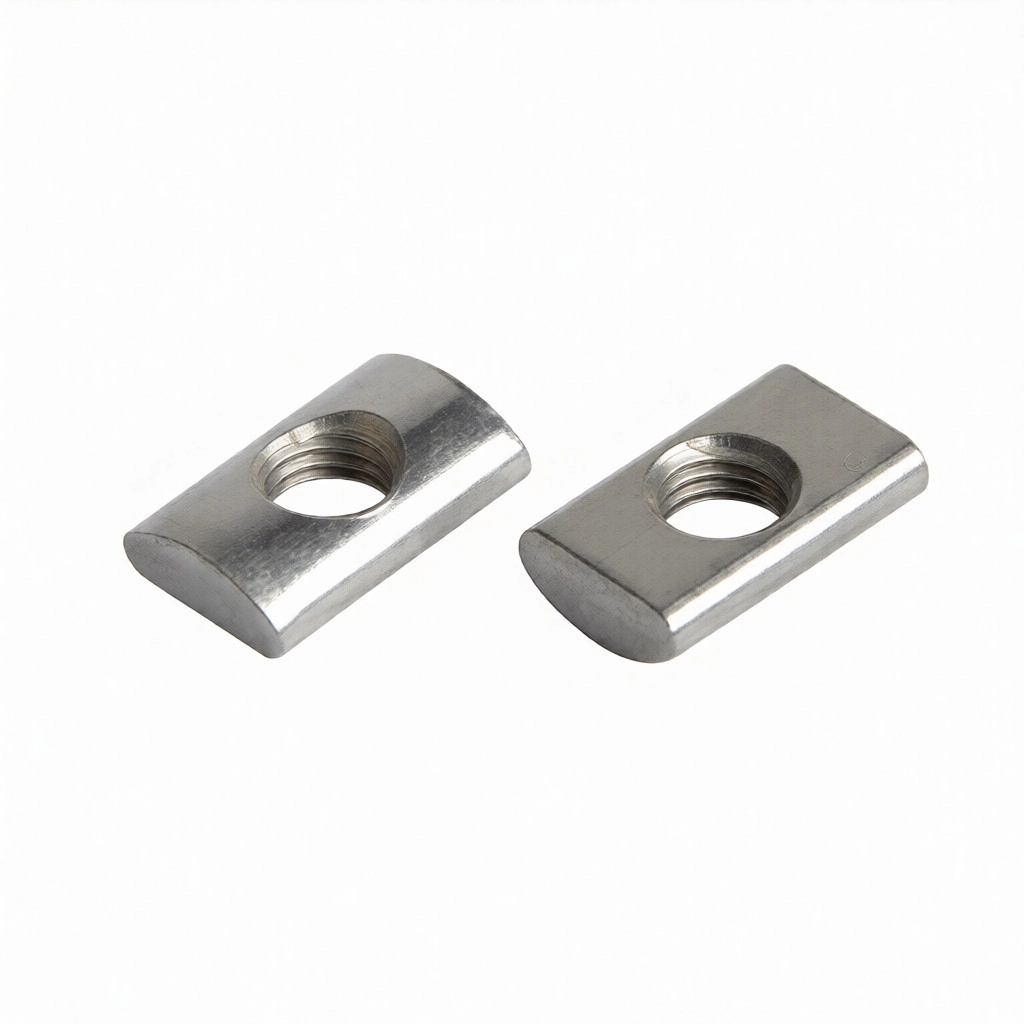

XAHQ21 / XAHQ22 / XAHQ23
- Profile / slot
- GB 30–40 · EU 30–40 · slots 6/8 mm
- Thread
- M5–M8
- Installation
- Post-assembly · tilt and roll in from the slot
- Temporary retention
- None — support during vertical positioning
- Material / finish
- Carbon steel · zinc, nickel or chrome plated

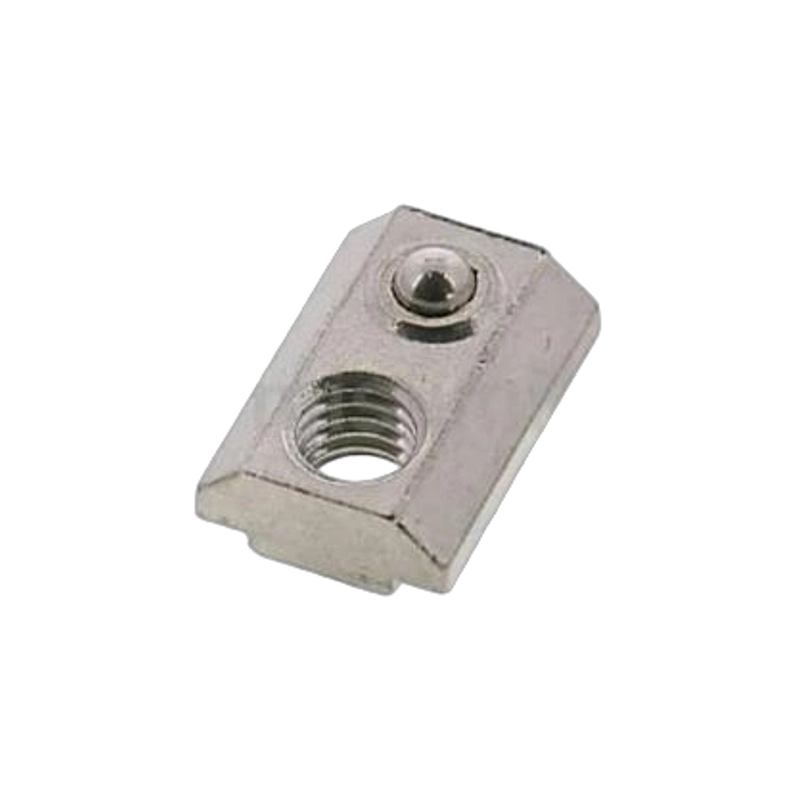

XAHJ21 / XAHJ23
- Profile / slot
- EU 20–45 · slots 6/8/10 mm
- Thread
- M3–M8
- Installation
- Post-assembly · tilt and roll in from the slot
- Temporary retention
- Spring ball — temporary hold before tightening
- Material / finish
- Carbon steel · zinc or chrome plated

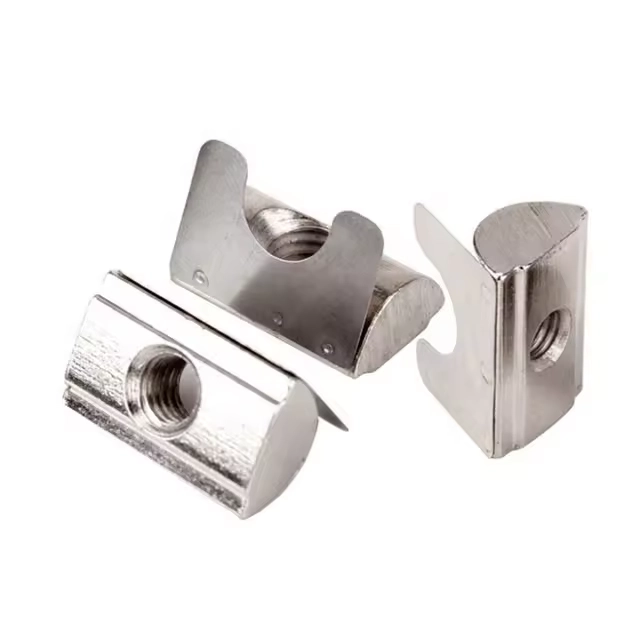

XAHV21 / XAHV23 / XAHV31
- Profile / slot
- EU 30–50 · slots 8/10 mm
- Thread
- M4–M8
- Installation
- Post-assembly · tilt and roll in from the slot
- Temporary retention
- Spring leaf — temporary hold before tightening
- Material / finish
- Carbon steel or SUS304 · finish by code

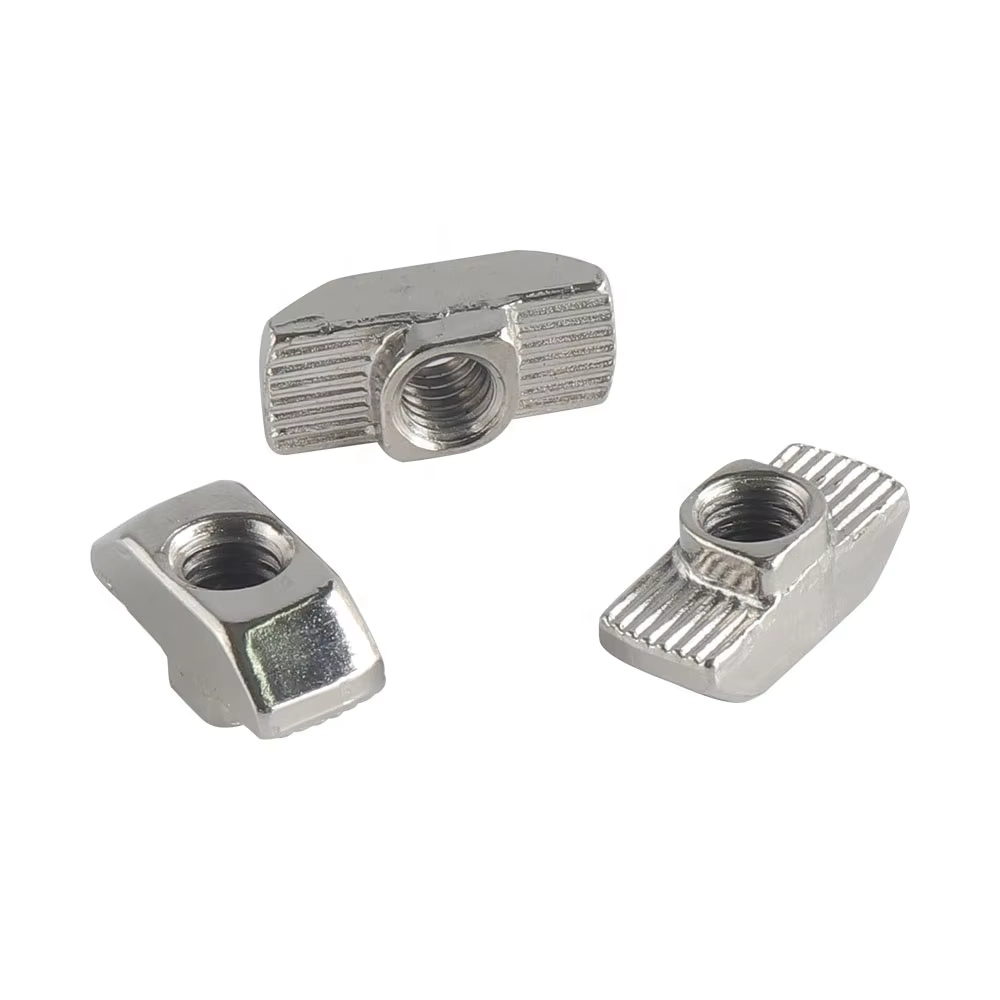

XAHC21 / XAHC22 / XAHC23 / XAHC31
- Profile / slot
- GB 30–40 · EU 20–50 · slots 6/8/10 mm
- Thread
- M4–M8
- Installation
- Post-assembly · insert and rotate 90°
- Temporary retention
- None — support during vertical positioning
- Material / finish
- Carbon steel or SUS304 · finish by code/system
XAHN21 / XAHN23 / XAHN31
- Profile / slot
- GB 30–40 · EU 20–50 · slots 6/8/10 mm
- Thread
- M4–M10
- Installation

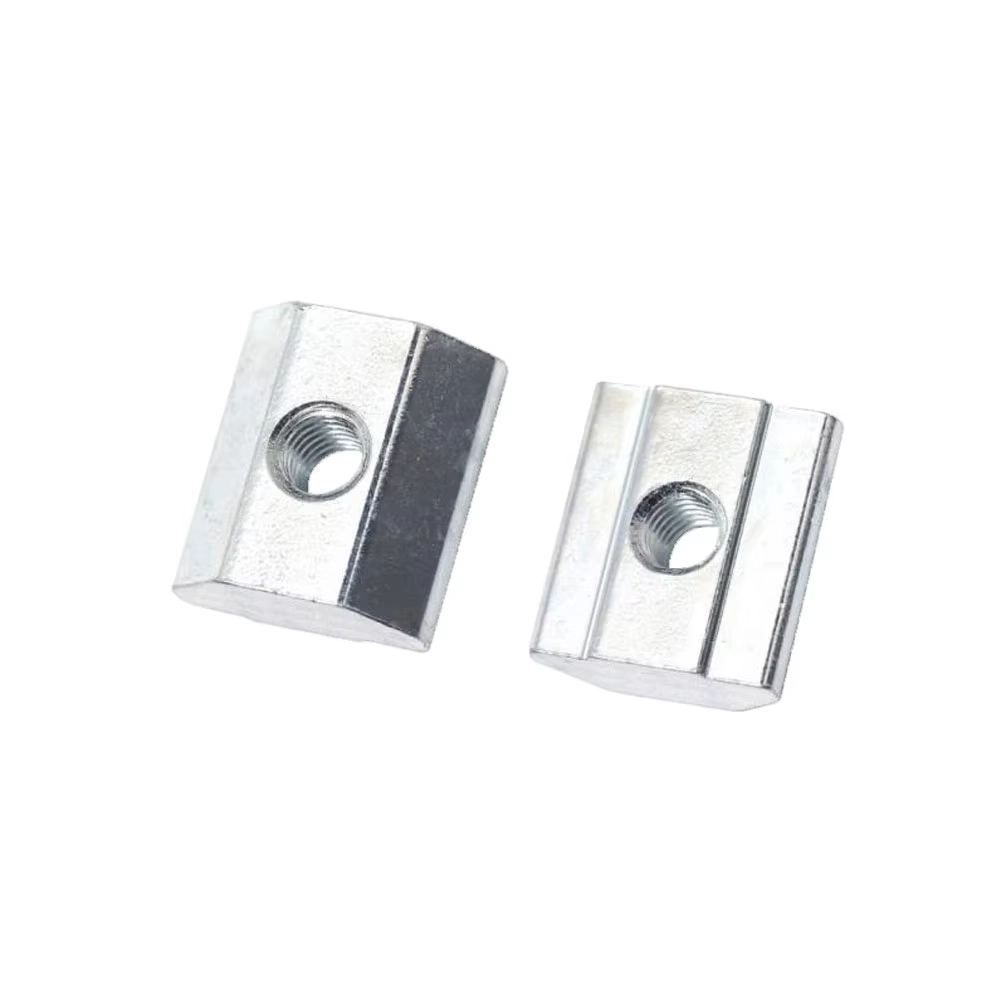

- Pre-assembly · feed from an open profile end
- Temporary retention
- None — support during vertical positioning
- Material / finish
- Carbon steel or SUS304 · finish by code

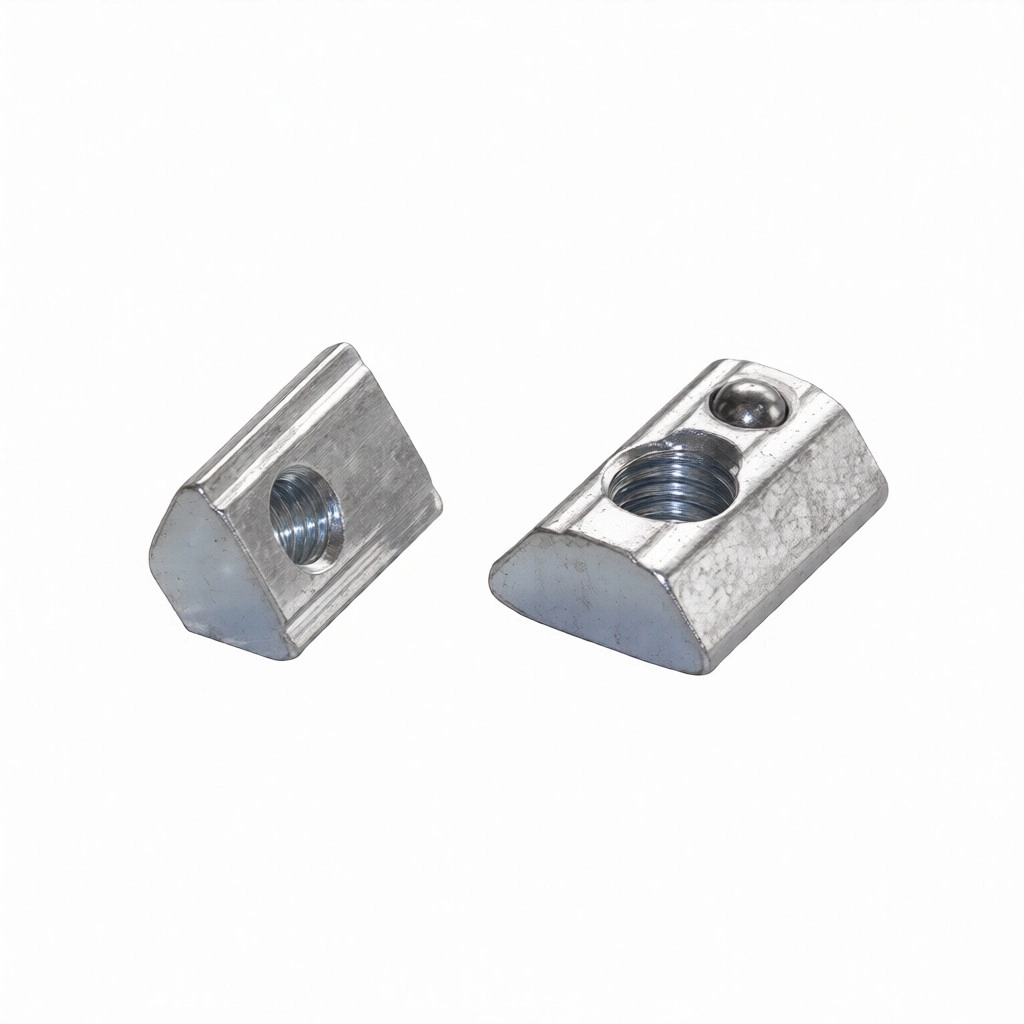

XAHB21
- Profile / slot
- EU 20–50 · slots 6/8/10 mm
- Thread
- M4–M10
- Installation
- Pre-assembly · feed from an open profile end
- Temporary retention
- Spring ball — temporary hold before tightening
- Material / finish
- Carbon steel · zinc plated

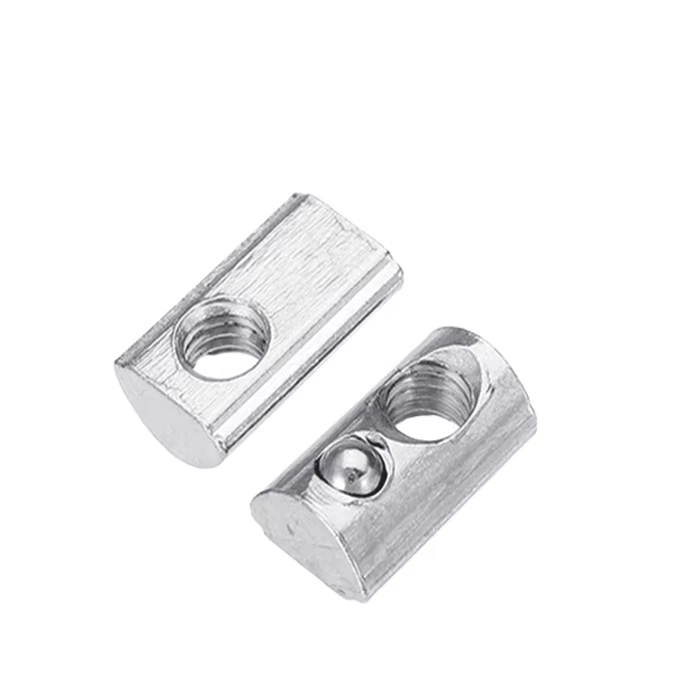

XAHI21 / XAHI23 / XAHI31
- Profile / slot
- EU 20–40 · slots 6/8 mm
- Thread
- M3–M8
- Installation
- Pre-assembly · feed from an open profile end
- Temporary retention
- Spring ball — temporary hold before tightening
- Material / finish
- Carbon steel or SUS304 · finish by code

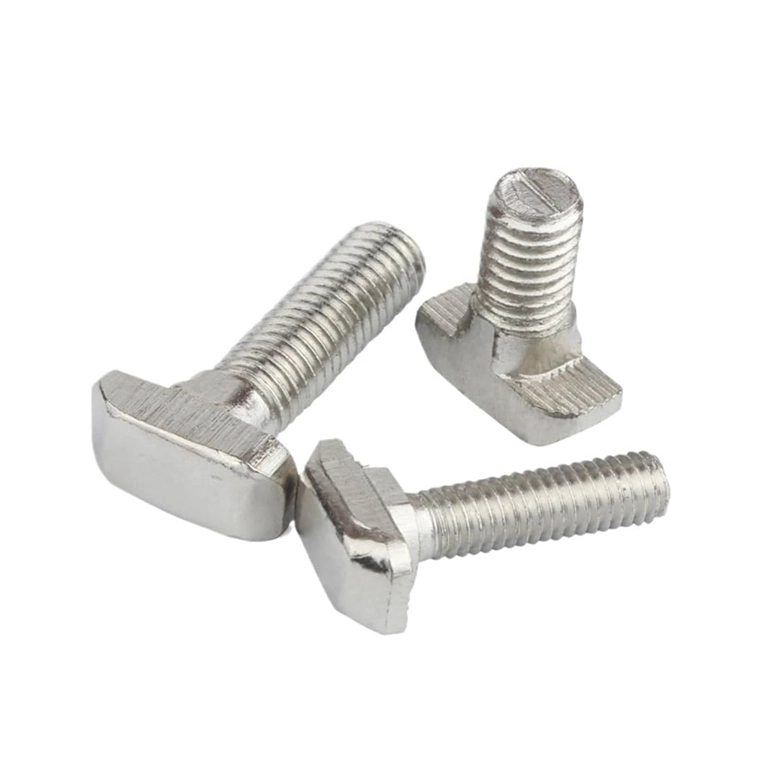

XAIC21 / XAIC22 / XAIC23 / XAIC31
- Profile / slot
- GB 30–40 · EU 20–50 · slots 6/8/10 mm
- Thread
- M5–M8
- Installation
- Post-assembly · insert and rotate 90°
- Temporary retention
- None — support during vertical positioning
- Material / finish
- Carbon steel or SUS304 · finish by code/system

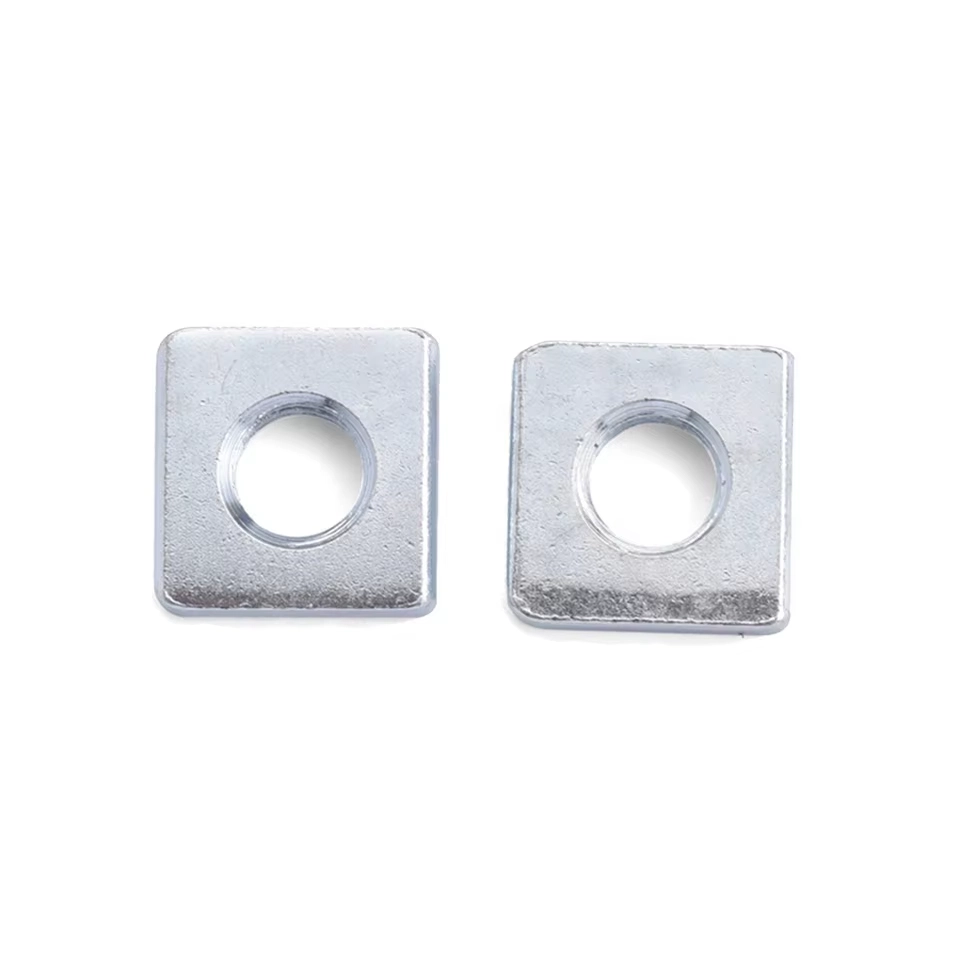

XAHE21 / XAHE31
- Profile / slot
- GB 30–40 · slots 6/8 mm
- Thread
- M4–M8
- Installation
- Pre-assembly · feed from an open profile end
- Temporary retention
- None — support during vertical positioning
- Material / finish
- Carbon steel · zinc plated / SUS304 · polished
Compare T-slot nut families
Use the installation method, profile access and exact product row to narrow the selection.
9 Listed Product Families
Roll-in, sliding, spring-retained, hammer-head, square-nut, and T-bolt options.
Drawing and BOM Review
We compare supplied dimensions and project information with the proposed source.
Multi-Category RFQs
Combine T-slot fasteners with other aluminum-profile accessories in one inquiry.
Inspection Scope by Agreement
Visual inspection, dimensional checks, and required documents can be agreed for the selected product and source before ordering.
Selection FAQ
T-Slot Nut Selection and Verification
Compare installation access, profile system, slot opening, thread and temporary retention before selecting a model.
Need Help Matching a T-Slot Fastener?
Send your profile series, slot opening, thread size, quantity, and any drawing or BOM. We will review the information against the proposed product and source.
