Roll-in T-Nuts with Spring Ball
XAHJ21 and XAHJ23 are post-assembly roll-in T-nuts with a spring ball for the listed EU 20–45 profile series. Select by profile series, slot opening, thread, and the dimensions shown in the table.
Thread Sizes
M3 – M8
EU Profile Options
20 – 45 mm (EU)
Installation
Spring Ball Variant
Part Codes
XAHJ21 / XAHJ23
Part Number System
Full part numbers are composed of: Code + Series + M
Code
XAHJ21
Carbon steel — zinc plated
XAHJ23
Carbon steel — chrome plated
Series
EU profile series number (e.g. 308 = EU 30 Slot 8 mm, 408 = EU 40 Slot 8 mm).
M
Thread diameter (M3, M4, M5, M6, M8).
Dimensions & Specifications
All dimensions in millimeters (mm).

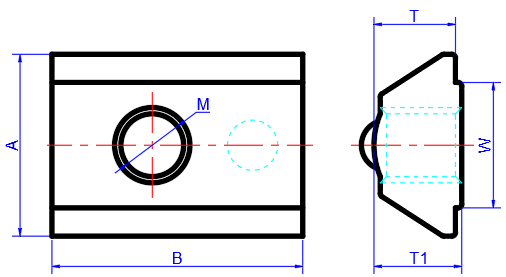

Dimensions
| Code | Series | M | A | B | T | T1 | W | Compatible Profile |
|---|---|---|---|---|---|---|---|---|
| XAHJ21 XAHJ23 | 206 | 3 4 5 | 8.5 | 17 | 3.5 | 4 | 6 | EU 20 Slot 6mm |
| 308 | 3 4 5 6 | 11.5 | 17 | 6.5 | 7 | 8 | EU 30 Slot 8mm | |
| 4010 | 4 5 6 8 | 14.5 | 20 | 6.5 | 7 | 10 | EU 40/45 Slot 10mm |
Key Features
Spring Ball Variant
The spring ball provides temporary holding force before tightening and helps keep the nut in position, including in a vertical slot.
Post-Assembly Family
Tilt and roll the nut into the slot at the required position after the frame is assembled. Profile-end access is not required.
EU Profile Options
Variants are listed for EU 20, 30, 40 and 45 profile series.
Listed Dimensions
Compare the listed A, B, T, T1, and W values with the selected EU profile and slot geometry before ordering.
Material & Finish Options
XAHJ21 is zinc-plated carbon steel and XAHJ23 is chrome-plated carbon steel.
Selection Check
Select the profile series, slot opening, thread size, and dimensions together; verify the complete fastening arrangement before use.
