Sliding Nuts
XAHN sliding nuts are pre-assembly, end-feed nuts for listed GB and EU profile rows. Insert them from an open profile end and slide them to position; they cannot be inserted from the middle of the slot. Select by profile system, slot opening, thread, material, finish, and listed dimensions.
Thread Sizes
M4 – M10
Profile Series
GB 30–40 / EU 20–50
Installation
End-Feed Installation
Part Codes
XAHN21 / XAHN23 / XAHN31
Part Number System
Full part numbers are composed of: Code + Series + M
Code
XAHN21
Carbon steel — zinc plated
XAHN23
Carbon steel — chrome plated
XAHN31
SUS304 — vibratory polished
Series
Profile Series: G306 (GB 30, 6 mm) · 308 (EU 30, 8 mm)
M
Thread Sizes: M4, M5, M6, M8, M10
Dimensions & Specifications
All dimensions in millimeters (mm).
End-Feed Installation
Insert the nut from an open profile end and slide it to the required position. It cannot be inserted from the middle of the slot.

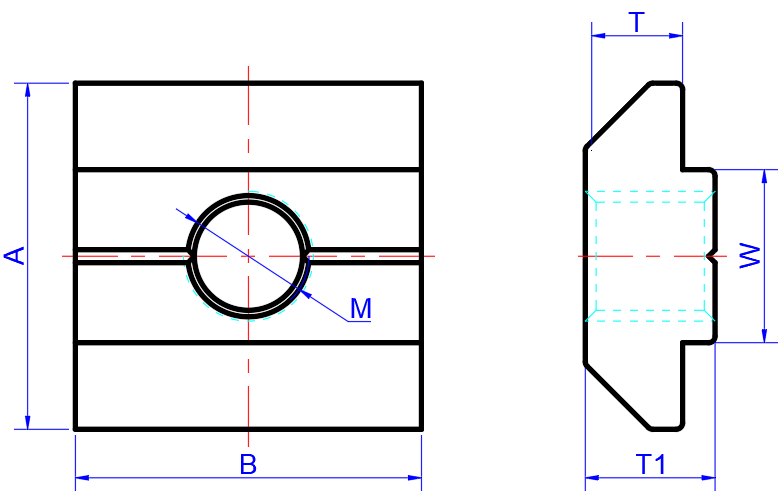

Dimensions — EU Profile
| Code | Series | M | A | B | T | T1 | W | Compatible Profile |
|---|---|---|---|---|---|---|---|---|
| XAHN21 XAHN23 XAHN31 | 206 | 4 5 6 | 9.5 | 10 | 3.5 | 4.5 | 6 | EU 20 Slot 6mm |
| 308 | 4 5 6 8 | 16 | 16 | 4.5 | 6 | 8 | EU 30 Slot 8mm | |
| 408 | 4 5 6 8 | 19.5 | 19.5 | 6.5 | 9.5 | 8 | EU 40 Slot 8mm | |
| 4010 4510 5010 | 4 5 6 8 10 | 18 | 18 | 5.5 | 8.5 | 10 | EU 40/45/50 Slot 10mm |

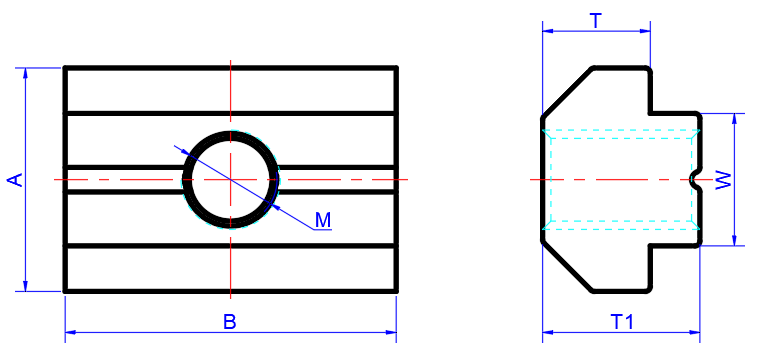

Dimensions — GB Profile
| Code | Series | M | A | B | T | T1 | W | Compatible Profile |
|---|---|---|---|---|---|---|---|---|
| XAHN21 XAHN23 | G306 | 4 5 6 | 10 | 18 | 5 | 7 | 6 | GB 30 Slot 6mm |
| G408 | 6 8 | 13.9 | 20 | 6.5 | 9.5 | 8 | GB 40 Slot 8mm |
Key Features
End-Feed Installation
Insert the nut from an open profile end and slide it to the required position. It cannot be inserted from the middle of the slot.
Listed GB and EU Profile Rows
Review the listed GB and EU profile rows and verify the selected series, slot opening, thread, and dimensions.
Variant Selection
Match the profile system, slot opening, thread, material, finish, and critical dimensions for the selected product row.
Dimension Verification
Confirm the nut body and slot dimensions against the applicable product source and revision.
Multiple Material Options
XAHN21 and XAHN23 are carbon steel with zinc or chrome plating. XAHN31 is SUS304 with vibratory polishing.
Selection Information
This family has no spring ball or spring leaf. Support the nut during vertical positioning until the bolt begins to engage.
Typical Applications
Automated Machine Frames
Potential profile-frame application; confirm suitability for the selected variant and complete assembly.
Industrial Safety Guards
Potential profile-frame application; confirm suitability for the selected variant and complete assembly.
Conveyor Systems
Potential profile-frame application; confirm suitability for the selected variant and complete assembly.
Modular Workstations
Potential profile-frame application; confirm suitability for the selected variant and complete assembly.
Exhibition Structures
Potential profile-frame application; confirm suitability for the selected variant and complete assembly.
Laboratory and Technical Frames
Position compatible fasteners in laboratory benches and technical frames; confirm any controlled-environment requirements separately.
