Base Plates for Leveling Feet & Eye Bolts
Base plates for mounting leveling feet and eye bolts onto compatible aluminum profiles. XACF01 is A6063 with sandblasted silver anodized finish; XACF23 is S45C with chrome plating.
Shape Variants
3 (Square, L/R, Round)
Profile Series (mm)
20–50
M Thread Range
M12–M20
Part Codes
XACF01 / XACF23
Part Number System
Full part numbers are composed of: Code + Series + Specs + Direction (if applicable) + M
Square / Round Base Plate
L/R Direction Base Plate
Code
XACF01
A6063 with sandblasted silver anodized finish
XACF23
S45C with chrome-plated finish
Direction (L/R Base Plates only)
L — Left-hand orientation
R — Right-hand orientation
Dimensions & Specifications
All dimensions in millimeters (mm).

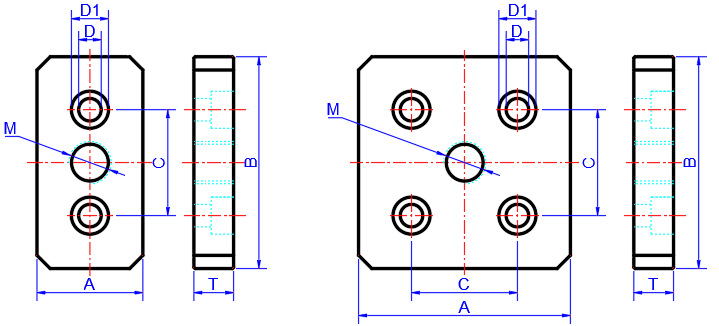

Square / Rectangular Base Plate
| Code | Series | Specs | M | A | B | C | D | D1 | T | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XACF01/XACF23 | 206 | 4420 | 12 | 40 | 40 | 20 | 6.5 | 11 | 12 | 4 | EU 20 Slot 6mm |
| G306 | 3060 | 12 | 30 | 60 | 30 | 6.5 | 11 | 12 | 2 | GB 30 Slot 6mm | |
| G306 | 6060 | 12 | 60 | 60 | 30 | 6.5 | 11 | 12 | 4 | ||
| G306 | 6060 | 16 | 60 | 60 | 30 | 6.5 | 11 | 12 | 4 | ||
| 308 | 3060 | 12 | 30 | 60 | 30 | 8.5 | 14 | 12 | 2 | EU 30 Slot 8mm | |
| 308 | 6060 | 12 | 60 | 60 | 30 | 8.5 | 14 | 12 | 4 | ||
| 308 | 6060 | 16 | 60 | 60 | 30 | 8.5 | 14 | 12 | 4 | ||
| G408/408 | 4080 | 12/16 | 40 | 80 | 40 | 8.5 | 14 | 15 | 2 | GB 40 Slot 8mm / EU 40 Slot 8mm | |
| G408/408 | 8080 | 12/16 | 80 | 80 | 40 | 8.5 | 14 | 15 | 4 | ||
| 4010 | 4080 | 12/16 | 40 | 80 | 40 | 12 | 18 | 20 | 2 | EU 40 Slot 10mm | |
| 4010 | 8080 | 12/16 | 80 | 80 | 40 | 12 | 18 | 20 | 4 | ||
| 4510 | 4590 | 16/20 | 45 | 90 | 45 | 13 | 20 | 20 | 2 | EU 40 Slot 10mm | |
| 4510 | 9090 | 16/20 | 90 | 90 | 45 | 13 | 20 | 20 | 4 | ||
| 5010 | 50100 | 16/20 | 50 | 100 | 50 | 8.5 | 14 | 20 | 2 | EU 50 Slot 10mm | |
| 5010 | 100100 | 16/20 | 100 | 100 | 50 | 8.5 | 14 | 20 | 4 |

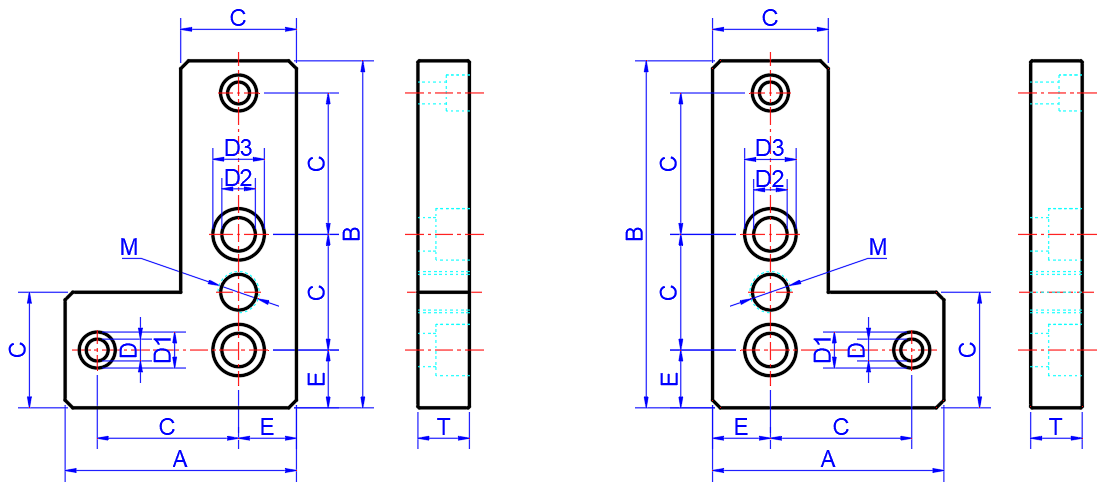

L/R Direction Base Plate
| Code | Series | Specs | Direction | M | A | B | C | E | D | D1 | D2 | D3 | T | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XACF01/XACF23 | G306 | 3060 | L/R | 12 | 60 | 90 | 30 | 15 | 6.5 | 11 | 6.5 | 11 | 12 | GB 30 Slot 6mm |
| 308 | 3060 | 12 | 60 | 90 | 30 | 15 | 8.5 | 14 | 8.5 | 14 | 12 | EU 30 Slot 8mm | ||
| G408/408 | 4080 | 12 | 80 | 120 | 40 | 20 | 8.5 | 14 | 8.5 | 14 | 15 | GB 40 Slot 8mm / EU 40 Slot 8mm | ||
| G408/408 | 4080 | 16 | 80 | 120 | 40 | 20 | 8.5 | 14 | 8.5 | 14 | 15 | |||
| 4010 | 4080 | 12 | 80 | 120 | 40 | 20 | 8.5 | 14 | 13 | 20 | 20 | EU 40 Slot 10mm | ||
| 4010 | 4080 | 16 | 80 | 120 | 40 | 20 | 8.5 | 14 | 13 | 20 | 20 | |||
| 4510 | 4590 | 16 | 90 | 135 | 45 | 20 | 8.5 | 14 | 13 | 20 | 20 | EU 45 Slot 10mm |

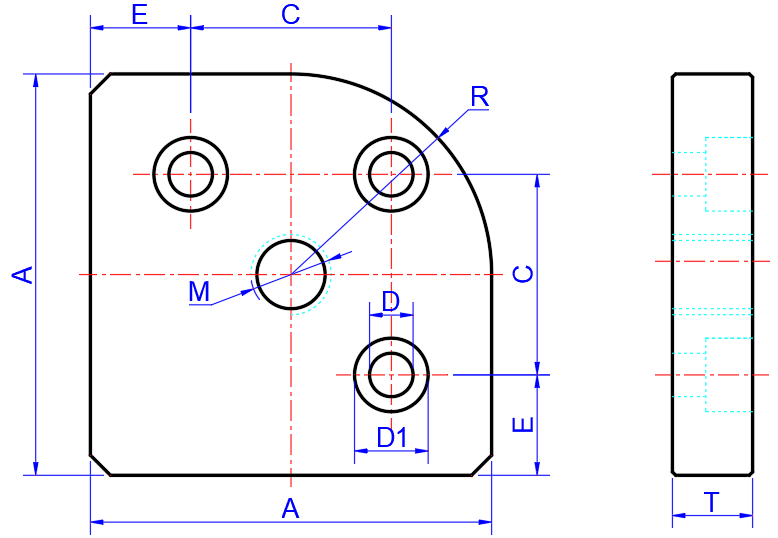

Round Corner Base Plate
| Code | Series | Specs | M | A | C | E | D | D1 | R | T | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XACF01/XACF23 | G308 | 6630R | 12/16 | 60 | 30 | 15 | 6.5 | 11 | 30 | 12 | EU 30 Slot 8mm |
| 308 | 6630R | 12/16 | 60 | 30 | 15 | 8.5 | 14 | 30 | 12 | ||
| G408/408 | 8840RA | 12/16 | 80 | 40 | 20 | 8.5 | 14 | 40 | 15 | EU 40 Slot 8mm |
Key Features
Three Shape Variants
Square/rectangular, L/R directional, and round-corner configurations are listed for the compatible profile series and dimensions.
Two Listed Materials
XACF01 is A6063 aluminum and XACF23 is S45C steel; select by product code and dimensions.
Code-Specific Finishes
XACF01 has a sandblasted silver-anodized finish and XACF23 has a chrome-plated finish.
Wide Compatibility
Compatible with EU and GB standard profiles from 20 to 50 series, including 206, G306, 308, G408/408, 4010, 4510, and 5010.
Multiple Thread Sizes
Supports M12 to M20 thread sizes, accommodating a wide range of leveling feet and eye bolt specifications.
Easy Installation
Installed with the listed fastener arrangement; match the plate, profile series, thread, and dimensions before assembly.
Typical Applications
Automated Machinery Frames
Mount leveling feet at the base of machine frames to ensure precise leveling on uneven factory floors, reducing vibration and improving accuracy.
Workstation & Workbench Legs
Attach adjustable leveling feet to aluminum profile workstations and benches for stable, height-adjustable support in manufacturing and lab environments.
Conveyor Systems
Secure conveyor frame legs with base plates to maintain consistent belt alignment and prevent frame movement during high-speed operation.
Industrial Enclosures
Provide a stable, adjustable base for electrical cabinets, control panels, and safety enclosures built with T-slot aluminum profiles.
Lifting & Rigging Points
Use with eye bolts to create safe, rated lifting points on aluminum profile structures for maintenance, relocation, and installation tasks.
Modular Display & Exhibit Structures
Stabilize trade show booths, display stands, and exhibition structures with leveling feet mounted via base plates for quick setup on any floor surface.
