Zinc Alloy Hinges
XAKQ41
Die-cast zinc alloy fixed-type hinges for heavy-duty industrial enclosure doors on aluminum profile frames. The chamfered corner design provides a premium aesthetic finish. Countersunk hole (Z) design for flush screw installation. Available in 60×60, 60×65, and 60×70 mm sizes.
Material
Zinc Alloy (Die-cast)
Surface
Nickel Plated
Hole Shape
Countersunk 90°
Size Range
60×60 to 60×70 mm
Part Number System
Code + Type + Hole Shape + Specs — Example: XAKQ41-G-Z-6060

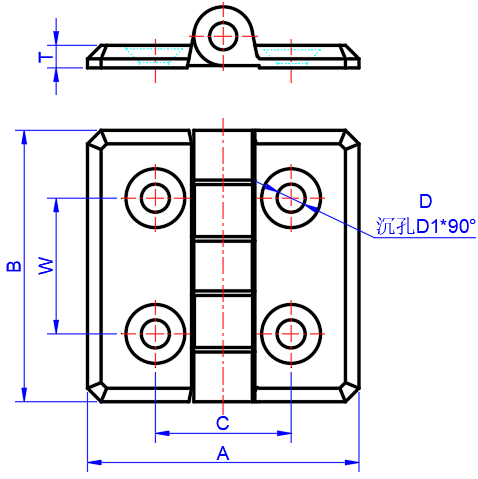

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Specs | A | B | C | W | T | D | D1 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ41 | G | Z | 6060 | 60 | 60 | 30 | 30 | 5 | 6.2 | 13 | 4 |
| 6065 | 65 | 60 | 35 | 30 | 5 | 6.2 | 13 | 4 | |||
| 6070 | 70 | 60 | 40 | 30 | 5 | 6.2 | 13 | 4 |
Key Features
Heavy-Duty Die-cast Zinc
Die-cast zinc alloy construction provides higher load capacity than nylon hinges, suitable for heavy panel doors and covers.
Premium Chamfered Design
Chamfered corner profile delivers a premium industrial aesthetic, ideal for visible enclosure doors on automation equipment.
Flush Countersunk Holes
Z-type countersunk holes allow M6 screws to sit flush, maintaining a clean panel surface.
Nickel Plated Finish
Nickel plating provides corrosion resistance and a bright metallic appearance for demanding industrial environments.
Three Size Options
Available in 60×60, 60×65, and 60×70 mm to accommodate different panel sizes and profile configurations.
Fixed-Type Pivot
Standard fixed-type hinge for reliable, repeatable panel opening on industrial enclosure doors.
Typical Applications
Industrial Enclosure Doors
Heavy-duty panel doors on aluminum profile machine frames and control enclosures.
Automation Equipment Covers
Access panels on CNC machines, robotic cells, and automated assembly lines.
Control Cabinet Panels
Electrical control cabinet doors requiring a premium aesthetic finish.
