Stainless Steel Hinges
SUS304 fixed hinges with polished finish and countersunk-hole variants. Available sizes and dimensions are listed in the specification table.
Material
SUS304 Stainless Steel
Surface
Polished
Hole Shape
Countersunk 90°
Profile Series
48 / 62
Part Number System
Code + Type + Hole Shape + Specs — Example: XAKQ31-G-Z-6247

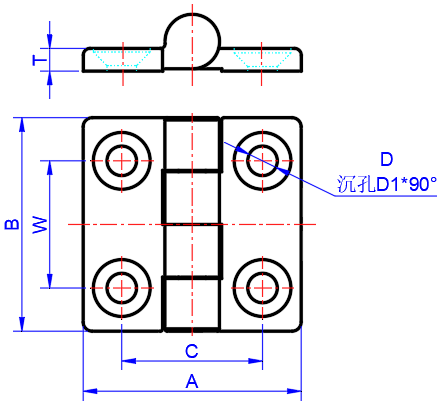

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Specs | A | B | C | W | T | D | D1 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ31 | G | Z | 4847 | 48 | 47 | 31 | 28 | 5 | 6.5 | 12.5 | 4 |
| 6247 | 62 | 47 | 36 | 28 | 5 | 6.5 | 12.5 | 4 | |||
| 6263A | 62 | 63 | 41 | 37 | 5 | 6.5 | 12.5 | 4 |
Key Features
SUS304 Material
SUS304 construction with the listed polished finish.
SUS304 Material and Finish
The listed hinge uses SUS304 with a polished finish. Confirm suitability for the actual exposure and cleaning process.
Flush Countersunk Holes
Z-type countersunk holes allow M6 screws to sit flush with the hinge leaf surface, preventing contamination traps.
Multi-Series Compatibility
Available in 4847, 6247, and 6263A specs for 48 and 62 series aluminum profile systems.
Fixed-Type Pivot
Standard fixed-type hinge provides reliable, repeatable panel opening for inspection doors and access covers.
Industrial Applications
For compatible access panels and doors where the listed material, finish, and dimensions suit the operating environment.
Typical Applications
Industrial Enclosures
Access panels and doors on compatible aluminum-profile frames.
Environment-Specific Requests
Request source confirmation for the actual chemicals, cleaning process, and exposure conditions.
Environment-Specific Requests
Provide the chemicals, humidity, salt exposure, cleaning process, and service conditions for source confirmation.
