Nylon Lift-off Hinges
XAKQ52
PA nylon detachable lift-off hinges allowing full panel removal without tools. The split-barrel design separates at the pivot axis, enabling the door or cover to be lifted clear of the frame. Available in left-hand (L) and right-hand (R) versions for 30 and 40 series profiles.
Material
PA (Nylon)
Type
Lift-off (Detachable)
Handedness
Left & Right
Profile Series
30 / 40
Part Number System
Code + Type + Hole Shape + Handedness + Specs — Example: XAKQ52-B-Z-L-4040

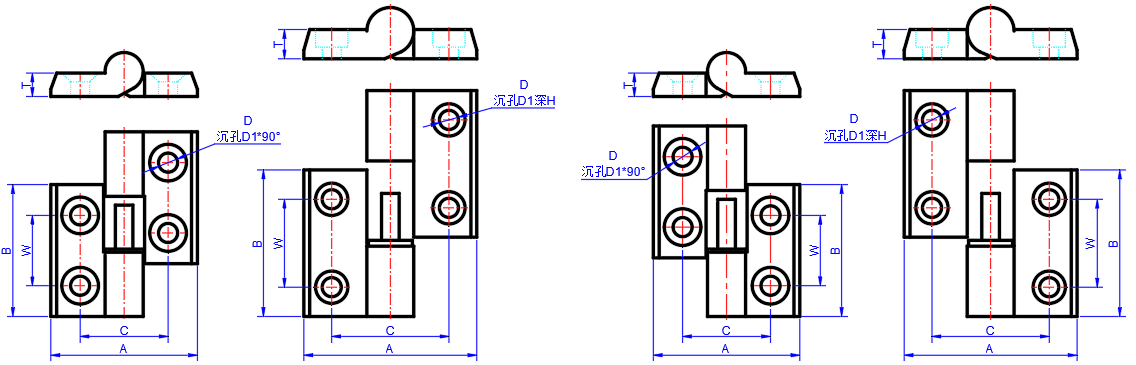

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Left/Right | Specs | A | B | C | W | T | D | D1 | H | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ52 | B | Z | L | 3030 | 50 | 45 | 30 | 24 | 8 | 6.5 | 12.5 | — | 4 |
| L | 4040 | 59 | 50 | 40 | 30 | 10 | 6.5 | 11 | 6 | 4 | |||
| R | 3030 | 50 | 45 | 30 | 24 | 8 | 6.5 | 12.5 | — | 4 | |||
| R | 4040 | 59 | 50 | 40 | 30 | 10 | 6.5 | 11 | 6 | 4 |
Key Features
Tool-Free Panel Removal
Split-barrel lift-off design allows the panel to be lifted clear of the frame without any tools — ideal for frequent access applications.
Left & Right Hand Versions
Available in both left-hand (L) and right-hand (R) configurations to suit any door opening direction.
Lightweight Nylon
PA nylon body reduces panel weight while providing sufficient strength for light-duty covers and inspection doors.
Corrosion-Free
Nylon material resists moisture and mild chemicals, suitable for humid and lightly corrosive environments.
30 & 40 Series Compatible
Available in 3030 and 4040 spec variants to match standard T-slot aluminum profile systems.
T-Slot Direct Mounting
Hammer-head pivot barrel inserts directly into the profile T-slot without pre-drilled holes.
Typical Applications
Removable Access Panels
Machine guard covers requiring frequent removal for maintenance or tooling changes.
Electronic Enclosure Doors
Control box doors on aluminum profile frames where quick panel removal is needed.
Cleanroom Equipment
Corrosion-free nylon suits food-grade and pharmaceutical environments.
