Aluminum Detent Hinges
A6063 detent hinges in the listed 135° configuration for 62-series profiles. XAKQ01 is clear anodized and XAKQ03 is black anodized; select by the shown size and mounting dimensions.
Material
A6063 Aluminum Alloy
Detent Angle
135°
Hole Shape
Countersunk 90°
Profile Series
62
Part Number System
Code + Type + Detent + Specs + Angle — Example: XAKQ01-G-X-6263-135

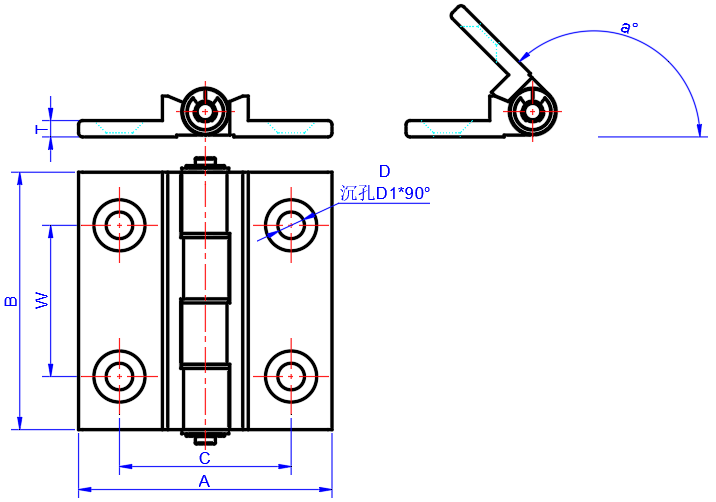

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Type | Detent | Specs | Angle | A | B | C | W | T | D | D1 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ01 / XAKQ03 | G | X | 6263 | 135° | 62 | 63 | 36 | 37 | 4 | 6.5 | 12.5 | 4 |
| 6263A | 62 | 63 | 42 | 37 | 4 | 6.5 | 12.5 | 4 |
Key Features
135° Detent Hold
Internal detent mechanism holds the panel open at 135° without external support, preventing uncontrolled panel movement.
A6063 Anodized Aluminum
XAKQ01 is clear anodized and XAKQ03 is black anodized; both use A6063.
Flush Countersunk Holes
Z-type countersunk holes allow M6 screws to sit flush, maintaining a clean panel surface.
Two Spec Variants
Available in 6263 (C=36) and 6263A (C=42) to accommodate different panel mounting configurations on 62 series profiles.
Positive Stop Mechanism
Detent provides a positive tactile stop at the defined angle, ensuring consistent panel positioning for operator safety.
Anodized Surface
Anodized finish provides corrosion resistance and a consistent industrial appearance.
Typical Applications
Overhead Access Panels
Panels that need to stay open at a fixed angle during maintenance without requiring an operator to hold them.
Machine Guard Doors
Safety covers on automation equipment where uncontrolled panel closure poses an operator hazard.
Inspection Covers
Frequent-access inspection doors where a defined open position is required for consistent workflow.
