Aluminum Hinges
XAKQ01 / XAKQ03
A6063 anodized aluminum fixed-type hinges for general-purpose aluminum profile enclosures. Available in two code variants (XAKQ01 / XAKQ03) with countersunk hole (Z) design. Wide size range from 48×47 to 62×79 mm covers most standard 48 and 62 series profile applications.
Material
A6063 Aluminum Alloy
Surface
Anodized
Hole Shape
Countersunk 90°
Size Range
48×47 to 62×79 mm
Part Number System
Code + Type + Hole Shape + Specs — Example: XAKQ01-G-Z-6247
Dimensions & Series Compatibility

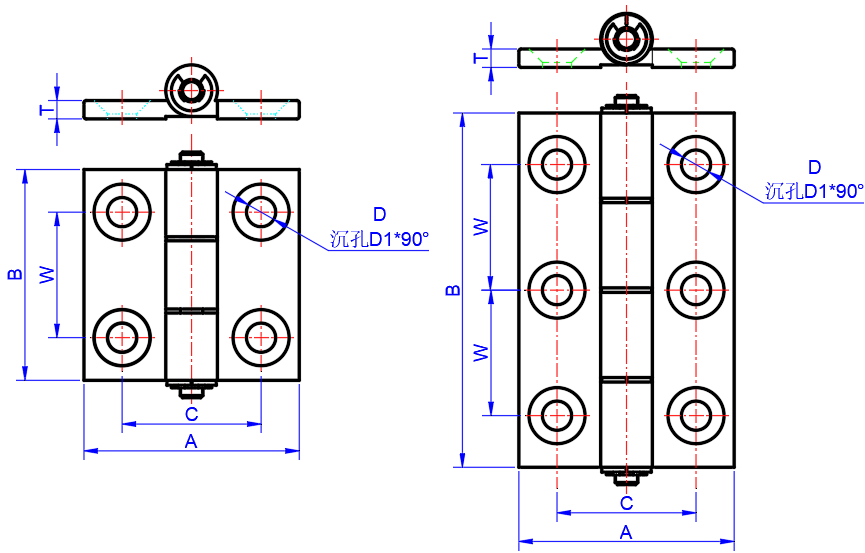

All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Specs | A | B | C | W | T | D | D1 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ01 / XAKQ03 | G | Z | 4847 | 48 | 47 | 31 | 28 | 3.5 | 6.5 | 12.5 | 4 |
| 4847A | 48 | 47 | 31 | 30 | 3.5 | 6.5 | 12.5 | 4 | |||
| 4879 | 48 | 79 | 31 | 28 | 3.5 | 6.5 | 12.5 | 6 | |||
| 6247 | 62 | 47 | 36 | 28 | 3.5 | 6.5 | 12.5 | 4 | |||
| 6247A | 62 | 47 | 36 | 30 | 3.5 | 6.5 | 12.5 | 4 | |||
| 6263 | 62 | 63 | 36 | 37 | 3.5 | 6.5 | 12.5 | 4 | |||
| 6263A | 62 | 63 | 42 | 37 | 3.5 | 6.5 | 12.5 | 4 | |||
| 6279 | 62 | 79 | 36 | 28 | 3.5 | 6.5 | 12.5 | 6 | |||
| 6279A | 62 | 79 | 42 | 28 | 3.5 | 6.5 | 12.5 | 6 |
Key Features
A6063 Anodized Aluminum
Lightweight anodized aluminum construction balances strength and weight for general-purpose industrial enclosure applications.
Wide Size Range
Nine spec variants from 48×47 to 62×79 mm cover most standard 48 and 62 series profile system requirements.
Flush Countersunk Holes
Z-type countersunk holes allow M6 screws to sit flush, maintaining a clean panel surface without protruding fastener heads.
Fixed-Type Pivot
Standard fixed-type hinge provides reliable, repeatable panel opening for inspection doors and access covers.
Two Code Variants
XAKQ01 and XAKQ03 variants offer dimensional flexibility within the same spec range for different installation requirements.
Anodized Surface
Anodized finish provides corrosion resistance and a consistent industrial appearance for aluminum profile enclosures.
Typical Applications
Machine Guard Doors
Access panels and inspection covers on aluminum profile machine frames.
Control Enclosures
Electrical control cabinet doors on standard 48 and 62 series profile systems.
Automation Equipment
General-purpose hinges for CNC machines, robotic cells, and automated assembly line covers.
