Aluminum Lift-off Hinges
A6063 lift-off hinges in listed left- and right-hand variants for 48- and 62-series profiles. XAKQ01 is clear anodized and XAKQ03 is black anodized.
Material
A6063 Aluminum Alloy
Type
Lift-off (Detachable)
Handedness
Left & Right
Profile Series
48 / 62
Part Number System
Code + Type + Hole Shape + Handedness + Specs — Example: XAKQ01-B-Z-L-6263

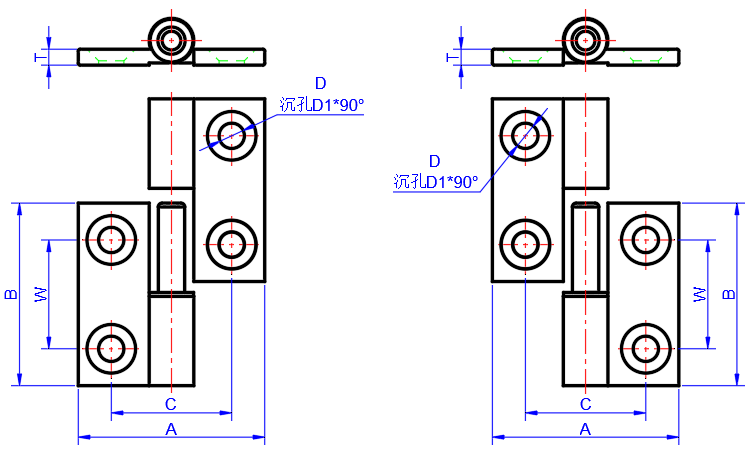

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Left/Right | Specs | A | B | C | W | T | D | D1 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ01 / XAKQ03 | B | Z | L | 4847 | 48 | 47 | 31 | 28 | 3.5 | 6.5 | 12.5 | 4 |
| L | 6263 | 62 | 63 | 36 | 37 | 3.5 | 6.5 | 12.5 | 4 | |||
| R | 4847 | 48 | 47 | 31 | 28 | 3.5 | 6.5 | 12.5 | 4 | |||
| R | 6263 | 62 | 63 | 36 | 37 | 3.5 | 6.5 | 12.5 | 4 |
Key Features
Tool-Free Panel Removal
Split-barrel lift-off design allows the panel to be lifted clear without any tools — ideal for frequent maintenance access.
Left & Right Hand Versions
Available in both left-hand (L) and right-hand (R) configurations to suit any door opening direction.
A6063 Anodized Aluminum
XAKQ01 is clear anodized and XAKQ03 is black anodized; both use A6063.
48 & 62 Series Compatible
Available in 4847 and 6263 spec variants to match standard 48 and 62 series aluminum profile systems.
Flush Countersunk Holes
Z-type countersunk holes allow M6 screws to sit flush, maintaining a clean panel surface.
Reliable Pivot Action
Select the listed hinge geometry, size, and mounting-hole pattern for the intended panel movement.
Typical Applications
Frequent-Access Panels
Machine guard covers and inspection doors requiring regular removal for maintenance or tooling changes.
Control Enclosure Doors
Electrical control cabinet doors on 48 and 62 series aluminum profile frames.
Automation Equipment Covers
Access panels on CNC machines and robotic cells where quick panel removal is needed.
