Striker Plates
XAKF23
Precision positioning plates for accurate door alignment and latch engagement in aluminum profile frame door systems. Carbon steel construction with corrosion-resistant surface treatment. Available in multiple offset positions (T values from 0 to 35mm).
Material
Carbon Steel / SUS304
Thickness (T)
0 – 35 mm
Overall Width (B)
40 mm
Compatible With
XAKD21 / XAKD22
Part Number System
Code + T — Example: XAKF23-0

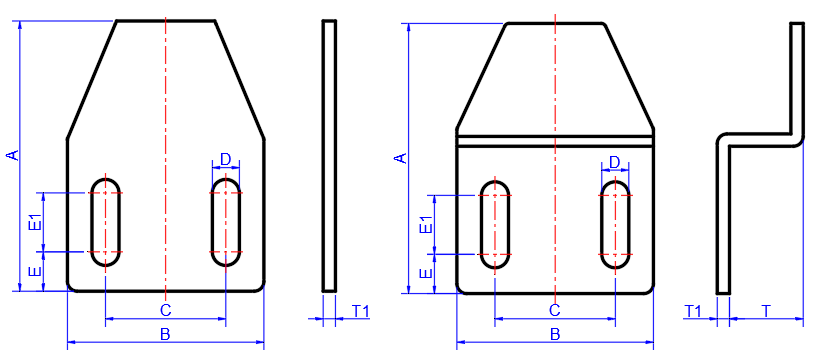

Dimensions & Specifications
All dimensions in millimeters (mm).
| Code | T (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | E1 (mm) | T1 (mm) |
|---|---|---|---|---|---|---|---|---|
| XAKF23 | 0 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 |
| 5 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 | |
| 10 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 | |
| 15 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 | |
| 20 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 | |
| 25 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 | |
| 30 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 | |
| 35 | 55 | 40 | 24.5 | 5.5 | 8 | 12 | 2.5 |
Key Features
Durable Zinc Alloy
Zinc alloy construction provides excellent wear resistance and long service life under repeated door operation.
Two Thickness Options
T1 and T thickness variants to accommodate different frame depths and installation requirements.
Magnetic Catch Compatible
Designed to pair with XAKD21 magnetic catches for a complete door latching system.
Easy Installation
Oval mounting slots allow positional adjustment during installation for precise alignment with the door latch.
OEM & Custom Orders
Custom sizes and surface treatments available for OEM projects. Contact us for tailored solutions.
Clear Part Numbering
Code + T format makes ordering and inventory management straightforward for procurement teams.
Typical Applications
Machine Enclosures
Providing a durable latch surface on aluminum profile machine guard door frames.
Control Cabinets
Mounted on control cabinet frames to receive door latches and magnetic catches.
Panel Door Frames
Used on hinged and sliding panel door frames in workstations and assembly line enclosures.
