Magnetic Catches
XAKD21
Reliable magnetic latching solution for aluminum profile frame doors and panels. Available in three holding force levels (20 N, 50 N, 70 N) with identical mounting dimensions, allowing force upgrades without hardware changes.
Holding Force
20 N / 50 N / 70 N
Overall Width (B)
55 mm
Overall Height (A)
18 mm
Mounting
Oval Slot Screws
Part Number System
Code + Model — Example: XAKD21-A

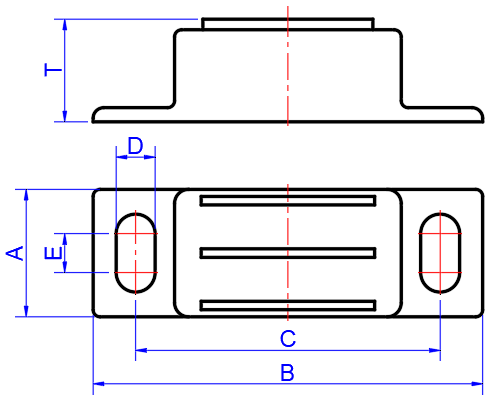

Dimensions & Specifications
All dimensions in millimeters (mm). Physical dimensions are identical across all models.
| Code | Model | A (mm) | B (mm) | C (mm) | E (mm) | D (mm) | T (mm) | Holding Force (N) |
|---|---|---|---|---|---|---|---|---|
| XAKD21 | A | 18 | 55 | 43 | 5.5 | 5.5 | 14.5 | 20 |
| B | 18 | 55 | 43 | 5.5 | 5.5 | 14.5 | 50 | |
| C | 18 | 55 | 43 | 5.5 | 5.5 | 14.5 | 70 |
Key Features
Three Force Levels
20 N, 50 N, and 70 N variants share identical dimensions, allowing force upgrades without remounting.
Adjustable Mounting
Oval mounting slots allow positional adjustment during installation for precise door alignment.
No Mechanical Wear
Magnetic latching mechanism has no moving parts, providing maintenance-free operation over long service life.
Silent Operation
Soft magnetic engagement provides quiet door closing, suitable for office and laboratory environments.
OEM & Custom Orders
Custom holding forces and mounting configurations available for OEM projects.
Clear Part Numbering
Code + Model format makes ordering and inventory management straightforward.
Typical Applications
Machine Enclosures
Latching aluminum profile frame doors on machine guards and safety enclosures.
Control Cabinets
Keeping control cabinet doors closed without mechanical latches for easy access.
Panel Doors
Securing hinged and sliding panel doors in workstations and assembly line enclosures.
