Square Bridge Pull Handles
Square bridge pull handles in black PA (XAKK52), black-painted ADC12 (XAKL13), and silver-painted ADC12 (XAKL14), with listed 90–180 mm hole spacings.
Material
PA / ADC12
Surface Finish
Black / Silver Painted
Hole Spacing (L)
90 / 100 / 120 / 130 / 180 mm
Screws
Not included
Part Number System
Code + Specs — Example: XAKK52-90

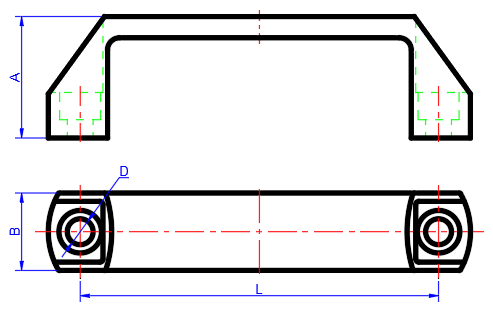

Dimensions & Specifications
All dimensions in millimeters (mm).
| Code | Specs | L (mm) | A (mm) | B (mm) | D (mm) |
|---|---|---|---|---|---|
| XAKK52 | 90 | 88 | 38 | 20.5 | 6.5 |
| 120 | 118 | 40 | 25.5 | 8.5 | |
| 180 | 178 | 51 | 28 | 8.5 | |
| XAKL13 | 90 | 90 | 36 | 19 | 6.5 |
| 120 | 120 | 39 | 24 | 8.5 | |
| 180 | 180 | 50 | 28 | 9 | |
| XAKL13 / XAKL14 | 100 | 100 | 33 | 17 | 7 |
| 130 | 130 | 34 | 18 | 5.6 |
Key Features
Multiple Hole Spacings
Available in 90, 100, 120, 130, and 180 mm center-to-center spacings to fit various panel and door widths.
Durable Construction
XAKK52 is black PA, XAKL13 is black-painted ADC12, and XAKL14 is silver-painted ADC12.
Easy Installation
Pre-drilled mounting holes align with standard profile slot spacing. Simple screw-in installation, no special tools required.
Ergonomic Grip
Square profile bridge design provides a comfortable, secure grip for frequent door and panel operation in industrial settings.
Clear Part Identification
Systematic part numbering (Code + Specs) makes ordering and inventory management straightforward for procurement teams.
OEM & Custom Orders
Submit non-standard length, material, or finish requirements with dimensions and quantity for source review.
Typical Applications
Machine Enclosures
Mounted on aluminum profile machine guards and enclosure doors for operator access.
Control Panels
Used on electrical control panel doors and industrial cabinet access panels.
Sliding & Hinged Doors
Ideal for sliding door systems and hinged access panels in automation and assembly lines.
