Flush Pull Handles
XAKJ01 / XAKJ13
Space-saving recessed pull handles that sit flush with the panel surface. Ideal for sliding doors, enclosure panels, and access hatches where protruding handles are not desirable. Available in anodized aluminum and chrome-plated zinc alloy.
Material
A6063 / Zinc Alloy
Surface Finish
Silver Anodized / Chrome
Length (L)
96 mm
Mounting
Recessed / Flush
Part Number System
Code + L — Example: XAKJ01-96
Dimensions & Specifications
All dimensions in millimeters (mm).

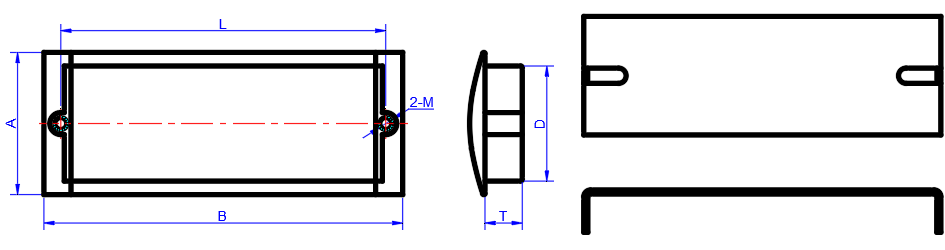

XAKJ01 — Aluminum Flush Pull Handle
| Code | L (mm) | A (mm) | B (mm) | D (mm) | T (mm) | M (mm) |
|---|---|---|---|---|---|---|
| XAKJ01 | 96 | 42 | 107 | 34 | 11 | 4 |

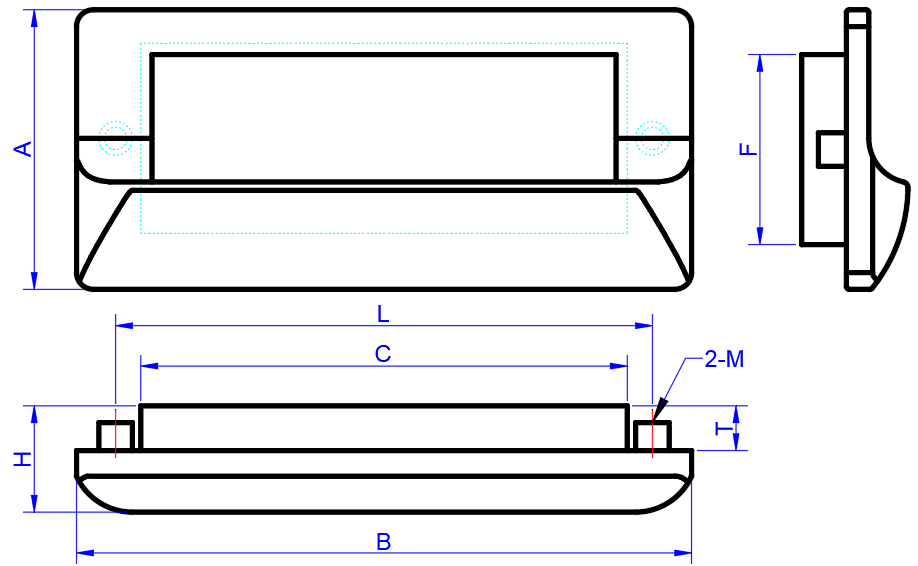

XAKJ13 — Zinc Alloy Flush Pull Handle
| Code | L (mm) | A (mm) | B (mm) | C (mm) | F (mm) | H (mm) | T (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|
| XAKJ13 | 96 | 50 | 110 | 87 | 34 | 19 | 8 | 4 |
Key Features
Flush-Mounted Design
Recessed into the panel surface for a clean, low-profile appearance with no protruding parts.
Dual Material Options
A6063 anodized aluminum (XAKJ01) for lightweight applications; zinc alloy chrome (XAKJ13) for premium aesthetics.
Simple Installation
Mounts via two M4 screws. Cutout dimensions are standardized for easy panel preparation.
Space Efficient
Ideal for tight spaces where a protruding handle would interfere with adjacent equipment or panels.
OEM & Custom Orders
Custom sizes and finishes available. Contact us for OEM specifications and bulk pricing.
Clear Part Numbering
Code + L format makes ordering and inventory management straightforward for procurement teams.
Typical Applications
Sliding Doors
Recessed into sliding panel doors where a flush surface is required for smooth operation.
Access Panels
Used on maintenance access hatches and inspection panels in machine enclosures.
Industrial Cabinets
Mounted on control cabinet doors and electrical enclosures for a clean, professional look.
