Oval Bridge Pull Handles
A6063 oval bridge pull handles with a clear-anodized finish for compatible enclosure doors and panels. Listed variants include 96 mm and 128 mm hole spacings.
Material
A6063 Aluminum Alloy
Surface Finish
Clear Anodized
Hole Spacing (L)
96 mm / 128 mm
Screw Size
M4
Part Number System
Code + Specs — Example: XAKM01-96

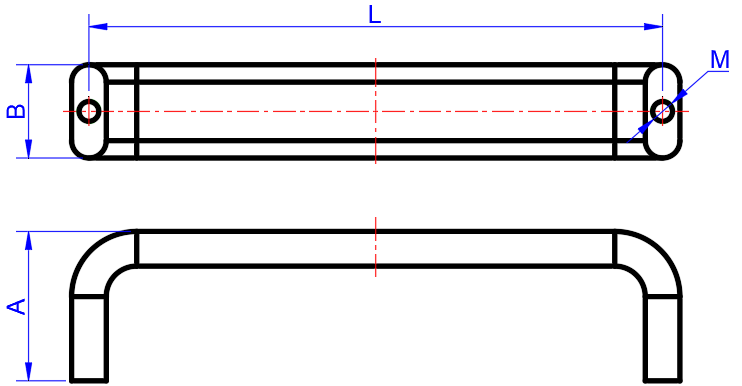

Dimensions & Specifications
All dimensions in millimeters (mm).
| Code | Specs | L (mm) | A (mm) | B (mm) | M (mm) |
|---|---|---|---|---|---|
| XAKM01 | 96 | 96 | 25 | 15.6 | 4 |
| 96A | 96 | 35 | 15.6 | 4 | |
| 128 | 128 | 30 | 19.5 | 4 | |
| 128A | 128 | 40 | 19.5 | 4 |
Key Features
Oval Ergonomic Profile
The oval cross-section provides a comfortable, natural grip that reduces hand fatigue during frequent panel access.
Anodized Aluminum
XAKM01 is listed in A6063 aluminum with a clear-anodized finish.
Standard & Deep Clearance
Available in standard and 'A' (deep clearance) variants for different panel thicknesses and grip preferences.
Simple M4 Mounting
Pre-drilled M4 mounting holes at both ends allow quick installation on any panel or aluminum profile frame.
OEM & Custom Orders
Submit non-standard length or finish requirements with drawings and quantity for source review.
Clear Part Numbering
Systematic Code + Specs part number format simplifies procurement and inventory management.
Typical Applications
Machine Enclosures
Mounted on aluminum profile machine guards and enclosure access doors.
Control Cabinets
Used on electrical control cabinet doors and industrial panel access points.
Sliding Doors
Ideal for sliding panel systems and hinged access doors in automation lines.
