Door Stoppers
SPCC nickel-plated door stoppers for door and window closure positioning. Listed configurations include F-type, Z-type, and T-type, with optional built-in magnet variants in the specification table.
Material
SPCC
Product Code
XAKC22
Types Available
F / Z / T
Magnet Option
Yes (Y suffix)
Part Number System
Code + Type + Magnet — Example: XAKC22-F15-Y
Dimensions & Specifications
All dimensions in millimeters (mm).

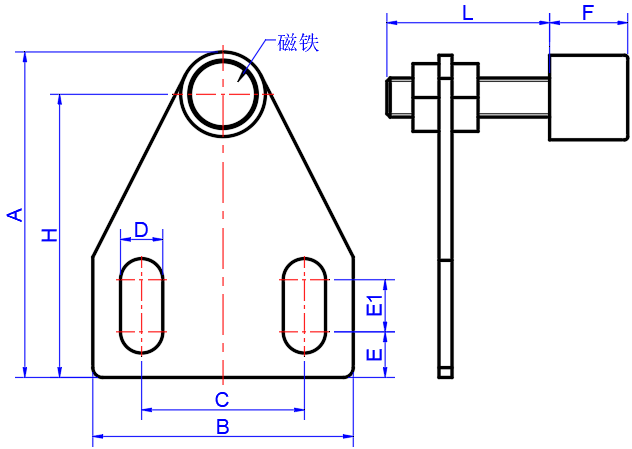

T-Type
| Code | Type | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | E (mm) | E1 (mm) |
|---|---|---|---|---|---|---|---|---|
| XAKC22 | T | 50 | 40 | 25 | 6.5 | 43.5 | 7 | 8 |

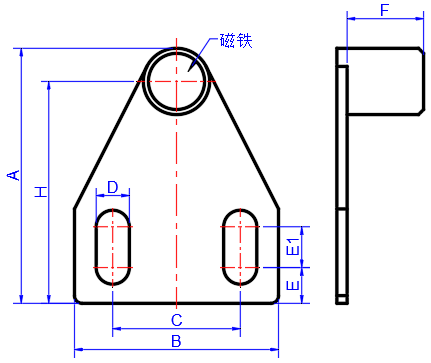

F-Type (Straight Arm)
| Code | F (mm) | Built-in Magnet | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | E (mm) | E1 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XAKC22 | 15 | - | 50 | 40 | 25 | 6.5 | 44 | 7 | 8 |
| 25 | - | 50 | 40 | 25 | 6.5 | 44 | 7 | 8 | |
| 15 | Y | 50 | 40 | 25 | 6.5 | 44 | 7 | 8 | |
| 25 | Y | 50 | 40 | 25 | 6.5 | 44 | 7 | 8 |

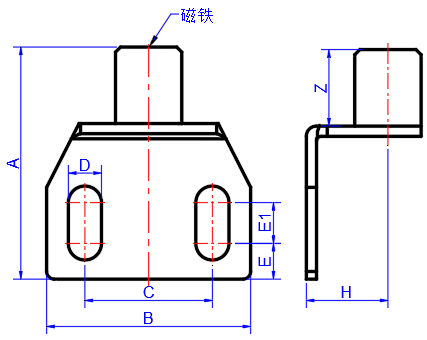

Z-Type (Z-Shaped Arm)
| Code | Z (mm) | Built-in Magnet | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | E (mm) | E1 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XAKC22 | 15 | - | 50 | 40 | 25 | 6.5 | 43.5 | 7 | 8 |
| 25 | - | 50 | 40 | 25 | 6.5 | 43.5 | 7 | 8 | |
| 15 | Y | 50 | 40 | 25 | 6.5 | 43.5 | 7 | 8 | |
| 25 | Y | 50 | 40 | 25 | 6.5 | 43.5 | 7 | 8 |
