U-Shaped Cover Strips
XAMC62
U-profile PVC cover strips that snap into T-slot openings for a clean, flush surface finish. Available for EU 30/40/45/50 and GB 30/40 series profiles in 8 mm and 10 mm slot widths. Black, grey, and white color options available.
Material
PVC
Installation
Snap-in, Tool-free
Slot Widths
8 mm / 10 mm
Colors
Black / Grey / White
Part Number System
Full part numbers use Code + Series format — Example: XAMC62-308

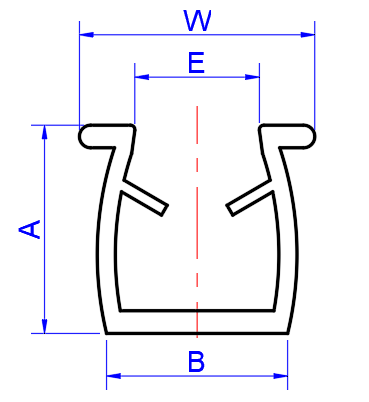

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Series | A (mm) | B (mm) | E (mm) | W (mm) | Compatible Profile |
|---|---|---|---|---|---|---|
| XAMC62 | 308 | 9.2 | 8.8 | 5.6 | 10 | GB 30 Slot 6mm / EU 30 Slot 8mm / GB 40 Slot 8mm / EU 40 Slot 8mm |
| 4010 | 12 | 10 | 7.5 | 12 | EU 40 Slot 10mm / EU 45 Slot 10mm / EU 50 Slot 10mm |
Key Features
Clean Slot Coverage
U-profile body snaps flush into T-slot opening for a smooth, professional surface finish.
Tool-Free Installation
Press-fit snap-in design — no adhesives, screws, or special tools required for installation or removal.
Multiple Color Options
Available in black, grey, and white to match profile anodizing and enclosure color schemes.
Cut to Length
Supplied in continuous lengths; cut on-site with scissors or a utility knife to any required dimension.
Typical Applications
T-Slot Groove Covers
Snapping over unused T-slots to provide a clean, flush surface finish on aluminum profile frames.
Machine Guard Frames
Covering exposed slots on machine guard structures to prevent debris accumulation and improve safety.
Workstation Frames
Finishing unused grooves on ergonomic workstation frames for a professional appearance.
Display Structures
Providing a clean slot-cover solution on exhibition and retail display aluminum profile frames.
