Sealing Strips
This product family combines PVC sealing strips (HAARG51–56) and PE flat slot cover strips (XARG51–56). Listed colors include light gray, black, blue, yellow, and white, with the profile series selected from the specification table.
Materials
PVC / PE
Installation
Snap-in, Tool-free
Profile Series
20 / 30 / 40 / 45 / 50
Listed Colors
Light Grey / Black / Blue / Yellow / White
Part Number System
Both Sealing Strips and Flat Slot Cover Strips use Code + Series format.
Sealing Strips — Example: HAARG51-G306
Flat Slot Cover Strips — Example: XARG51-308
Flat Slot Cover Strips — Dimensions & Series Compatibility
All dimensions in millimeters (mm). Code: XARG51 / XARG52 / XARG53 / XARG55 / XARG56
| Code | Series | T (mm) | A (mm) | C (mm) | Compatible Profile |
|---|---|---|---|---|---|
| XARG51 XARG52 XARG53 XARG55 XARG56 | G306 | 7 | 7.4 | 1 | EU 20 Slot 6mm / GB 30 Slot 6mm |
| 308 | 9.4 | 10 | 1 | EU 30 Slot 8mm | |
| G408 | 9 | 9.6 | 1 | GB 40 Slot 8mm / EU 40 Slot 8mm | |
| 4010 | 10.5 | 11.5 | 1.5 | EU 40 Slot 10mm / EU 45 Slot 10mm / EU 50 Slot 10mm |

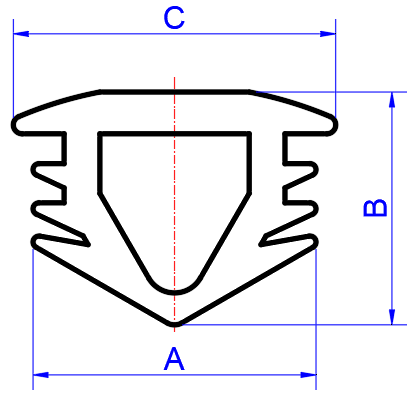

Sealing Strips — Dimensions & Series Compatibility
All dimensions in millimeters (mm). Code: HAARG51 / HAARG52 / HAARG53 / HAARG55 / HAARG56
| Code | Series | A (mm) | B (mm) | C (mm) | Compatible Profile |
|---|---|---|---|---|---|
| HAARG51 HAARG52 HAARG53 HAARG55 HAARG56 | G306 | 7.5 | 6.2 | 8.8 | EU 20 Slot 6mm / GB 30 Slot 6mm |
| G408 | 9.5 | 7.8 | 10.8 | EU 30 Slot 8mm / GB 40 Slot 8mm / EU 40 Slot 8mm | |
| 4010 | 11.6 | 8 | 12 | EU 40 Slot 10mm / EU 45 Slot 10mm / EU 50 Slot 10mm |
Key Features
Dust & Debris Seal
PVC sealing strips and PE flat covers fit compatible slot geometries; select the material and code shown in the specification table.
Tool-Free Snap-In
Press-fit barb design installs and removes by hand — no adhesives or fasteners needed.
Wide Series Coverage
Compatible with EU 20/30/40/45/50 and GB 30/40 series profiles in 6, 8, and 10 mm slot widths.
Two Strip Types
Flat cover strips for flush aesthetics; sealing strips for deeper dust and moisture protection.
Typical Applications
Machine Frame Slots
Covering compatible unused profile slots on machine frames and guarding structures.
Enclosure Frames
Covering compatible open slots around enclosure doors, side frames, and access structures.
Conveyor Frames
Filling compatible unused slots along conveyor frames and supporting structures.
Electrical Cabinet Frames
Covering compatible open profile slots around industrial cabinet and control-panel frames.
Workstations and Display Frames
Providing a finished appearance on compatible open slots in workstations, partitions, and display frames.
