Combined Seal Strips
XAMB61 / XAMB62
Multi-layer combined strips that simultaneously cover the T-slot opening and seal the panel edge in a single component. PVC body snaps into the slot; EPDM rubber lip compresses against the panel edge. Available for EU 30 Slot 8mm and EU 40 Slot 8mm profiles, accommodating 5 mm panel thickness.
Material
PVC + EPDM Rubber
Panel Thickness
5 mm
Slot Width
8 mm
Color
Black
Part Number System
Full part numbers use Code + Series format — Example: XAMB61-308

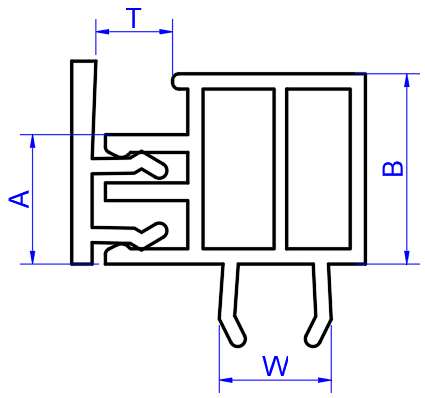

Dimensions & Series Compatibility
All dimensions in millimeters (mm). T = Applicable Panel Thickness.
| Code | Series | A (mm) | B (mm) | W (mm) | T (mm) | Compatible Profile |
|---|---|---|---|---|---|---|
| XAMB61 XAMB62 | 308 | 10.5 | 15 | 8.8 | 5 | EU 30 Slot 8mm |
| 408 | 10.5 | 15 | 9.5 | 5 | EU 40 Slot 8mm |
Key Features
2-in-1 Sealing
Single component simultaneously covers the T-slot and seals the panel edge — eliminates two separate components.
PVC + EPDM Construction
Rigid PVC body for slot retention; flexible EPDM lip for panel compression sealing.
Snap-In Installation
Tool-free press-fit installation into the T-slot; panel slides in from the side after strip is in place.
5 mm Panel Optimized
Designed for standard 5 mm polycarbonate and acrylic panels commonly used in machine guarding.
Typical Applications
Machine Safety Guarding
Sealing polycarbonate or acrylic safety panels into machine guard frames in a single-strip installation.
Enclosure Door Sealing
Providing integrated slot cover and panel seal for enclosure door frames.
Conveyor Side Guards
Installing panel guards along conveyor systems with integrated sealing to reduce noise and contain debris.
Electrical Cabinet Doors
Sealing cabinet door panels against the frame to meet IP protection requirements.
