Panel Rubber Seal Strips
XAML71 / XAML72
EPDM rubber compression seal strips for sealing the edge of panels (polycarbonate, acrylic, aluminum, steel) against aluminum profile slots. Three cross-section variants (A, B, C) accommodate panel thicknesses from 1.7 mm to 5 mm.
Material
EPDM Rubber
Variants
A / B / C
Panel Thickness
1.7 – 5 mm
Color
Black
Part Number System
Full part numbers use Code + Variant Code format — Example: XAML71-A

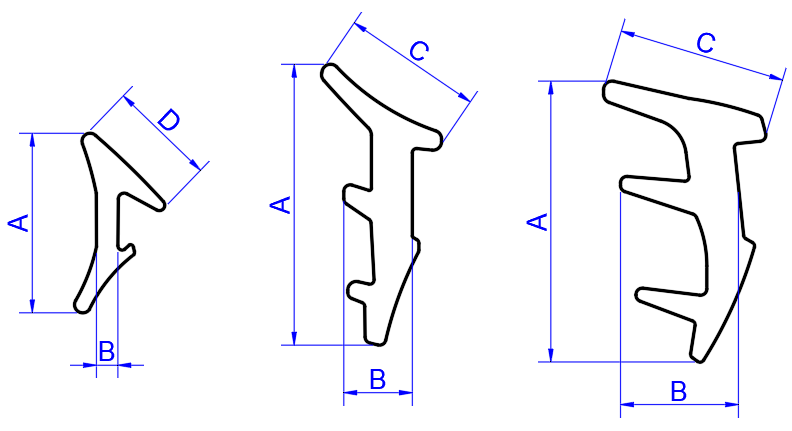

Dimensions & Variant Specifications
All dimensions in millimeters (mm). Three cross-section profiles shown left to right: Variant A, B, C.
| Code | Variant | A (mm) | B (mm) | C (mm) | Applicable Width (mm) |
|---|---|---|---|---|---|
| XAML71 XAML72 | A | 13 | 5.8 | 7.9 | 5 |
| B | 13 | 3.2 | 6.5 | 3 | |
| C | 8.4 | 1 | 5 | 1.7 |
Key Features
Compression Seal
EPDM rubber compresses against panel edges to create a dust-tight and light-tight seal.
Multi-Panel Compatibility
Works with PC, PMMA, aluminum sheet, and steel panels across three thickness ranges.
UV & Weather Resistant
EPDM compound resists UV, ozone, and temperature extremes from -40°C to +120°C.
Three Cross-Sections
Variants A, B, and C cover panel thicknesses from 1.7 mm to 5 mm for versatile application.
Typical Applications
Machine Safety Guarding
Sealing polycarbonate panels in machine guard frames to prevent dust and light leakage.
Enclosure Door Panels
Providing flexible edge sealing for enclosure door panels on aluminum profile frames.
Conveyor Side Guards
Retaining and sealing panel edges along conveyor guard structures.
Electrical Cabinet Doors
Sealing panel edges in electrical cabinet doors to improve IP rating performance.
