Aluminum End Caps
XARC01 / XARC03
Precision-machined A6063 aluminum end caps for clean, professional termination of aluminum profile ends. Press-fit design requires no adhesive or fasteners. Available in square and rectangular configurations for EU 20/30/40/45 and GB 30/40 series profiles. Two variants: flat (XARC01) and corner-cut (XARC03).
Material
A6063 Aluminum Alloy
Variants
Flat (01) / Corner-Cut (03)
Thickness (T)
5 mm
Finish
Clear / Black Anodized
Part Number System
Full part numbers use Code + Series + Specs format — Example: XARC01-308-3030
Code
XARC01 = Flat end cap | XARC03 = Corner-cut end cap
Specs
Profile cross-section, e.g. 3030 = 30×30 mm, 3030R = 30×30 mm with corner radius, 3060 = 30×60 mm

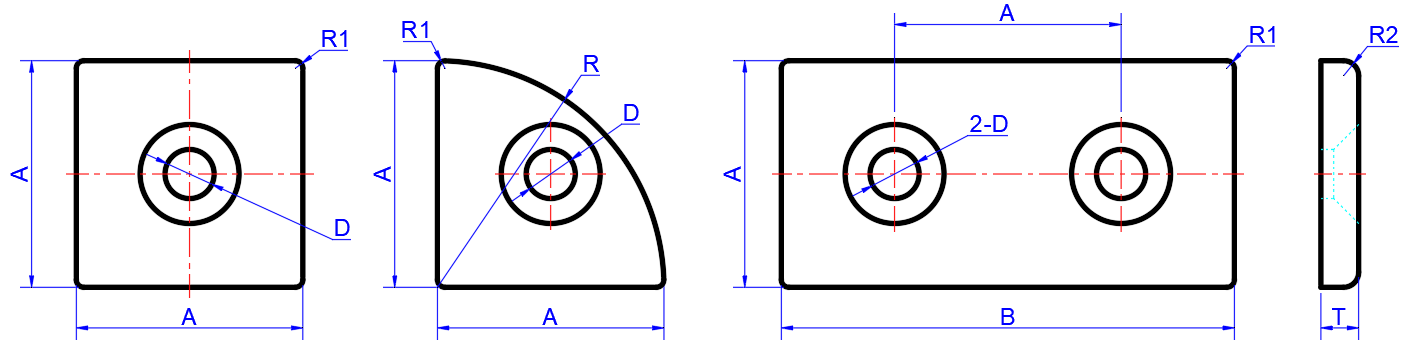

Dimensions — End Caps for Square Profile (A × A)
All dimensions in millimeters (mm). Left: 1-hole (XARC01). Center: corner-cut 1-hole (XARC03). Right: 2-hole (XARC01). Side view shows thickness T.
| Code | Series | Specs | A (mm) | B (mm) | D (mm) | R (mm) | R1 (mm) | R2 (mm) | T (mm) | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|
| XARC01 XARC03 | 206 | 2020 / 2020R / 2040 | 20 | 40 | 6.5 | 20 | 1.5 | 2 | 5 | EU 20 Slot 6mm |
| G306 | 3030 / 3030R / 3060 | 30 | 60 | 6.5 | 30 | 1 | 2 | 5 | GB 30 Slot 6mm | |
| 308 | 3030 / 3030R / 3060 | 30 | 60 | 8.5 | 30 | 2 | 2 | 5 | EU 30 Slot 8mm | |
| G408 | 4040 / 4040R / 4080 | 40 | 80 | 8.5 | 40 | 1.5 | 2 | 5 | GB 40 Slot 8mm | |
| 408 | 4040 / 4040R / 4080 | 40 | 80 | 8.5 | 40 | 4.5 | 2 | 5 | EU 40 Slot 8mm | |
| 4010 | 4040 / 4040R / 4080 | 40 | 80 | 8.5 | 40 | 2 | 2 | 5 | EU 40 Slot 10mm | |
| 4510 | 4545 / 4545R / 4590 | 45 | 90 | 8.5 | 45 | 2 | 2 | 5 | EU 45 Slot 10mm |

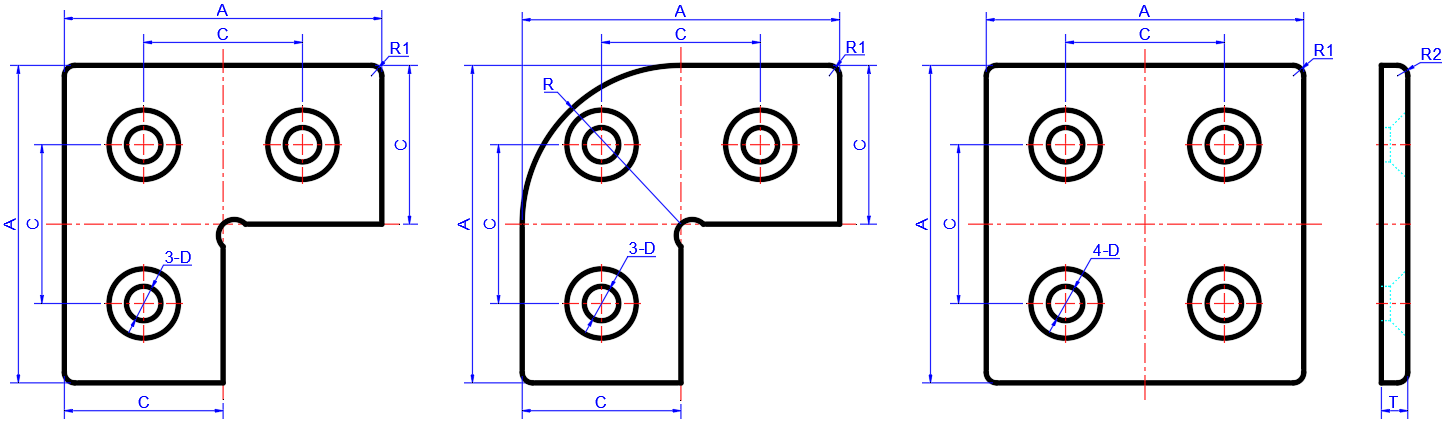

Dimensions — End Caps for Rectangular Profile (A × C)
All dimensions in millimeters (mm). Left: 3-hole flat. Center: 3-hole corner-cut. Right: 4-hole flat. Side view shows thickness T.
| Code | Series | Specs | A (mm) | C (mm) | D (mm) | R (mm) | R1 (mm) | R2 (mm) | T (mm) | Compatible Profile |
|---|---|---|---|---|---|---|---|---|---|---|
| XARC01 XARC03 | 206 | 4420 / 4420R / 4040 | 40 | 20 | 6.5 | 20 | 1.5 | 2 | 5 | EU 20 Slot 6mm |
| G306 | 6630 / 6630R / 6060 | 60 | 30 | 6.5 | 30 | 1 | 2 | 5 | GB 30 Slot 6mm | |
| 308 | 6630 / 6630R / 6060 | 60 | 30 | 8.5 | 30 | 2 | 2 | 5 | EU 30 Slot 8mm | |
| G408 | 8840 / 8840R / 8080 | 80 | 40 | 8.5 | 40 | 1.5 | 2 | 5 | GB 40 Slot 8mm | |
| 408 | 8840 / 8840R / 8080 | 80 | 40 | 8.5 | 40 | 4.5 | 2 | 5 | EU 40 Slot 8mm | |
| 4010 | 8840 / 8840R / 8080 | 80 | 40 | 8.5 | 40 | 2 | 2 | 5 | EU 40 Slot 10mm | |
| 4510 | 9090 | 90 | 45 | 8.5 | - | 2 | 2 | 5 | EU 45 Slot 10mm |
Key Features
Press-Fit Design
Precision-fit tabs insert into profile slots for secure, tool-free installation with no adhesive required.
Two Variants
XARC01 flat and XARC03 corner-cut profiles to match standard and radius-corner aluminum profiles.
Wide Series Coverage
Available for EU 20/30/40/45 and GB 30/40 series in both 6 mm and 8/10 mm slot widths.
Anodized Finish
Clear and black anodized options match standard profile surface treatments for a unified appearance.
Typical Applications
Machine Frame Finishing
Sealing open profile ends on aluminum frame structures to prevent dust, debris, and moisture ingress.
Automation Equipment
Providing clean, professional end closures on T-slot frames used in robotic cells and automated assembly lines.
Workstations & Benches
Finishing exposed profile ends on ergonomic workstations, tool trolleys, and modular furniture frames.
Display & Exhibition Structures
Giving a polished appearance to trade show booths and retail display frames built from aluminum profiles.
Frequently Asked Questions
Related Products
More from End Caps & Cover Strips
HAARG51–56 · / …
Sealing Strips
Flexible PVC/TPE sealing strips designed to fill and seal T-slot openings on aluminum profile frames. Snap-in installation with no tools required. Available for EU 20/30/40/45/50 and GB 30/40 series profiles. Also includes Flat Slot Cover Strips (XARG51–56) for flush slot coverage.
XAMV61
Spacer Blocks
Precision-machined A6063 aluminum spacer blocks for panel standoff and frame gap filling in aluminum profile assemblies. T-slot compatible design inserts directly into the profile slot. Available for EU 20/30/40 and GB 30/40 series profiles.
XAMC62
U-Shaped Cover Strips
U-profile PVC cover strips that snap into T-slot openings for a clean, flush surface finish. Available for EU 30/40/45/50 and GB 30/40 series profiles in 8 mm and 10 mm slot widths. Black, grey, and white color options available.
XAML71 · / …
Panel Rubber Seal Strips
EPDM rubber compression seal strips for sealing the edge of panels (polycarbonate, acrylic, aluminum, steel) against aluminum profile slots. Three cross-section variants (A, B, C) accommodate panel thicknesses from 1.7 mm to 5 mm.
Ready to Order Aluminum End Caps?
Specify your profile series, variant (XARC01 or XARC03), and required quantity. We supply in bulk with short lead times.
