End Plate Connectors
XADK11
Die-cast zinc alloy end plate connectors that seal and reinforce the open end face of aluminum profiles. The connector inserts into the profile bore and is secured via T-slot fasteners. Available for EU 30 and EU 40 series profiles. Provides a clean finished appearance and prevents debris ingress.
Material
Zinc Alloy (Die-Cast)
Part Code
XADK11
Profile Compatibility
EU 30 Slot 8mm / EU 40 Slot 8mm
Function
End Face Sealing & Reinforcement
Surface Finish
Zinc alloy die-cast body with natural surface finish.
XADK11Zinc AlloyDie-Cast Zinc Alloy
Die-cast zinc alloy provides excellent dimensional accuracy and a clean finished appearance for profile end faces.

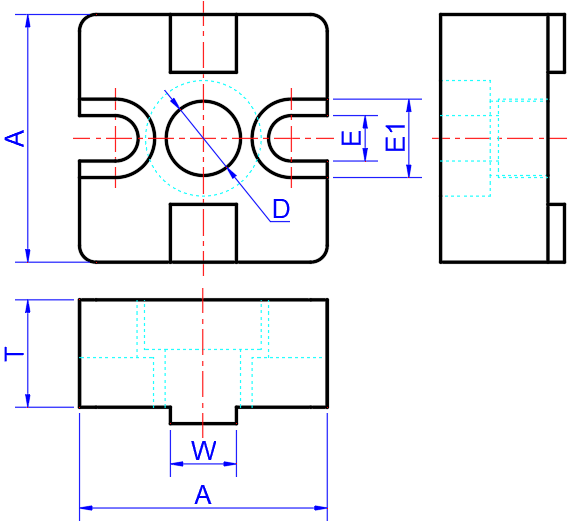

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
Part Number System
Code
Product family identifier (XADK11)
Series
Profile series (308 or 408)
| Code | Series | A (mm) | T (mm) | W (mm) | D (mm) | E (mm) | E1 (mm) | Compatible Profile |
|---|---|---|---|---|---|---|---|---|
| XADK11 | 308 | 30 | 13 | 8 | 9 | 5.5 | 9.5 | EU 30 Slot 8mm |
| 408 | 40 | 13 | 8 | 9 | 5.5 | 9.5 | EU 40 Slot 8mm |
Key Features
Engineering advantages of the XADK11 end plate connector.
Clean End Face Finish
Provides a professional finished appearance to open profile end faces.
Debris Protection
Seals the profile bore against dust, chips, and debris ingress.
End Face Reinforcement
Reinforces the profile end face against impact and edge damage.
Hex Key Installation
Secured via T-slot fasteners using a standard hex key - no drilling required.
EU 30 & EU 40 Compatible
Covers the two most common EU-standard profile series.
OEM & Custom Options
Custom dimensions available for orders of 500 pcs or more.
Typical Applications
Common use cases for end plate connectors in industrial assemblies.
Machine Frame Ends
Seal and finish the open end faces of machine frame profiles.
Structural Profile Ends
Protect structural profile ends from edge damage and debris.
Display Frame Ends
Provide a professional finished appearance to display frame ends.
Furniture Frame Ends
Clean end finish for aluminum furniture and workstation frames.
Enclosure Frame Ends
Seal enclosure frame ends for a finished appearance.
Lab & Clean Room Ends
Seal profile ends in laboratory and clean room environments.
