Anchor Fastener Cams
Anchor fastener cams for compatible aluminum-profile connections. XADJ42 is zinc alloy with nickel plating, while XADJ31 is SUS304 with vibratory polishing. Select the listed variant by profile series and dimensions.
Material
Zinc Alloy / SUS304
Part Code
XADJ31 / XADJ42
Profile Compatibility
EU 20 to EU 45 Series
Connection
Internal Profile Connection
Surface Finish
Two listed material and surface-finish combinations.
XADJ42Zinc AlloyNickel Plated
XADJ42 is listed in zinc alloy with nickel plating.
XADJ31SUS304Vibratory Polished
XADJ31 is listed in SUS304 with vibratory polishing.
Dimensions & Series Compatibility
All dimensions in millimeters (mm).
Part Number System
Code
XADJ31 = SUS304, vibratory polished; XADJ42 = zinc alloy, nickel plated
Series
Profile series (e.g. 206, 308, G408)
D
Cam bore diameter (mm)

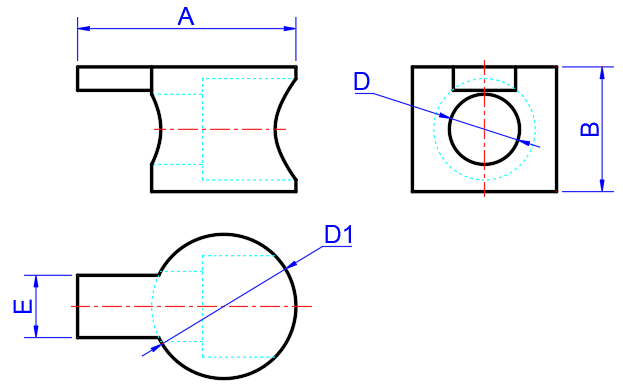

| Code | Series | D (mm) | A (mm) | B (mm) | D1 (mm) | E (mm) | Compatible Profile |
|---|---|---|---|---|---|---|---|
| XADJ31 XADJ42 | 206 | 4.5 | 19 | 8.5 | 12 | 6 | EU 20 Slot 6mm |
| G306 | 6.5 | 23 | 12 | 14.5 | 6 | GB 30 Slot 6mm | |
| 308 (S) | 5.5 | 23 | 12 | 14.5 | 8 | EU 30 Slot 8mm | |
| 308 (L) | 6.5 | 23 | 12 | 14.5 | 8 | EU 30 Slot 8mm | |
| G408/408 | 6.5/9 | 28 | 16 | 18.5 | 8 | GB 40 Slot 8mm / EU 40 Slot 8mm | |
| 4010 | 9 | 28 | 16 | 18.5 | 10 | EU 40 Slot 10mm / EU 45 Slot 10mm / EU 50/60 |
Key Features
Listed characteristics of the XADJ31/XADJ42 product family.
Internal Connection
The listed cams are used inside compatible aluminum-profile connection assemblies.
Two Material Options
XADJ42 is zinc alloy with nickel plating; XADJ31 is SUS304 with vibratory polishing.
Listed Series Coverage
Both product codes include listed variants across the supported profile series. Choose by the complete dimensions, not by code alone.
Invisible Assembly
Cam body sits inside the profile bore. No external hardware visible on the finished frame.
Specification-Based Selection
Match the profile series and all listed dimensions to the required connection before ordering.
OEM & Custom Options
Custom geometry or finish requests require drawing, quantity, and source confirmation.
Typical Applications
Typical uses for compatible internal profile connections.
Modular Machine Frames
Internal connection points in compatible modular machine frames.
Display & Exhibition Stands
Quick-assembly trade show and retail display structures.
Conveyor & Transfer Systems
Modular conveyor frames that need regular length or layout changes.
Workstation Structures
Adjustable workbench and assembly station frames.
Storage & Shelving
Reconfigurable industrial shelving and storage systems.
Lab & Prototype Rigs
Rapid-prototype test rigs and laboratory structures.
