Cube Connectors
ADC12 spray-painted cube connectors for listed 2-way and 3-way aluminum-profile junction variants.
Material
ADC12 Aluminum Alloy
Part Code
XADW48
Profile Compatibility
EU 20 to EU 45 Series
Variants
D (2-way) / T (3-way)
Surface Finish
XADW48 is listed in ADC12 with a spray-painted surface finish.
XADW48Zinc AlloyDie-Cast Zinc Alloy
Die-cast zinc alloy provides excellent dimensional accuracy and corrosion resistance for reliable multi-axis connections.
Dimensions & Series Compatibility

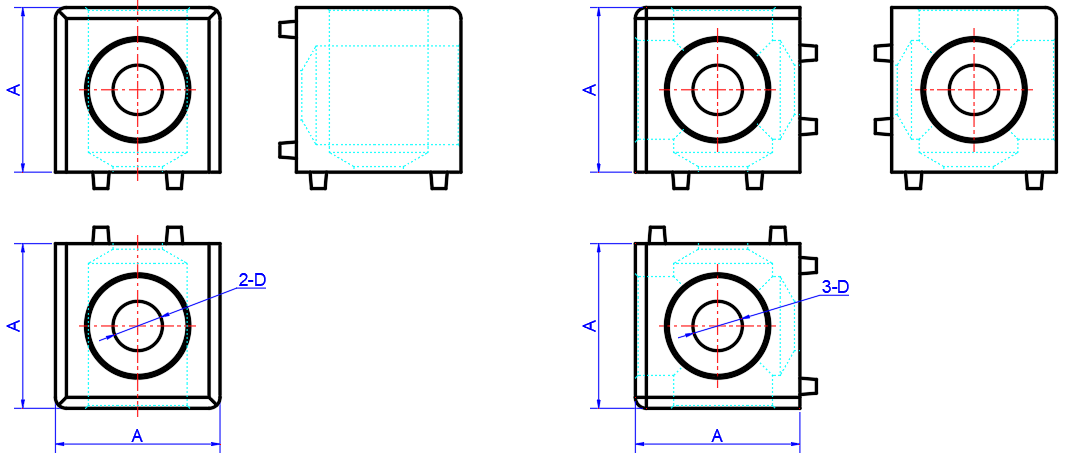

All dimensions in millimeters (mm). A = cube side length; D = bore diameter.
Part Number System
Code
Product family identifier (XADW48)
Series
Profile series (e.g. 206, 308, 4010)
Variant Code
D = 2-hole (2-way), T = 3-hole (3-way)
| Code | Series | Variant Code | A (mm) | D (mm) | Number of Holes | Compatible Profile |
|---|---|---|---|---|---|---|
| XADW48 | 206 | D | 20 | 7 | 2 | EU 20 Slot 6mm |
| G306 | D | 30 | 9 | 2 | GB 30 Slot 6mm | |
| 308 | D | 30 | 9 | 2 | EU 30 Slot 8mm | |
| G408/408 | D | 40 | 12 | 2 | GB 40 Slot 8mm / EU 40 Slot 8mm | |
| 4010 | D | 40 | 12 | 2 | EU 40 Slot 10mm | |
| 4510 | D | 45 | 13 | 2 | EU 45 Slot 10mm | |
| 206 | T | 20 | 7 | 3 | EU 20 Slot 6mm | |
| G306 | T | 30 | 9 | 3 | GB 30 Slot 6mm | |
| 308 | T | 30 | 9 | 3 | EU 30 Slot 8mm | |
| G408/408 | T | 40 | 12 | 3 | GB 40 Slot 8mm / EU 40 Slot 8mm | |
| 4010 | T | 40 | 12 | 3 | EU 40 Slot 10mm | |
| 4510 | T | 45 | 13 | 3 | EU 45 Slot 10mm |
Key Features
Engineering advantages of the XADW48 cube connector system.
3D Multi-Axis Junction
T variant enables true 3-way 90-degree junctions in X, Y, and Z axes for complex 3D frame structures.
Invisible Assembly
Cube body sits entirely inside the profile bore - no external hardware visible on the finished structure.
Wide Series Coverage
Single product code covers EU 20 through EU 45 and GB 30/40 series profiles.
Zinc Alloy Construction
Die-cast zinc alloy body provides excellent dimensional accuracy and corrosion resistance.
Hex Key Installation
Tightened via hex key through the T-slot - no drilling, welding, or adhesives required.
OEM & Custom Options
Custom requests require drawings, quantities, and source confirmation.
Typical Applications
Where 3D multi-axis profile junctions are required.
3D Machine Frames
Complex 3D frame structures requiring invisible multi-axis junctions.
Structural Corners
3-way corner joints for enclosures, housings, and structural frames.
Display Structures
3D display and exhibition structures with clean, invisible joints.
Furniture & Workstations
3D aluminum furniture frames with professional invisible joints.
Modular Enclosures
3D enclosures and housings requiring a finished appearance.
Lab & Clean Room Frames
3D laboratory and clean room frame structures.
