Elastic End Connectors
S45C elastic end connectors with nickel-plated finish for compatible EU 30 and EU 40 profile series.
Material
S45C Carbon Steel
Part Code
XADB22
Profile Compatibility
EU 30 Slot 8mm / EU 40 Slot 8mm
Connection
Internal End Connection
Surface Finish
Natural nylon (PA) body - no surface treatment required.
XADB22Natural NylonNylon (PA) - Natural
Natural nylon provides the elasticity required for snap-fit installation and good chemical resistance for industrial environments.
Dimensions & Series Compatibility

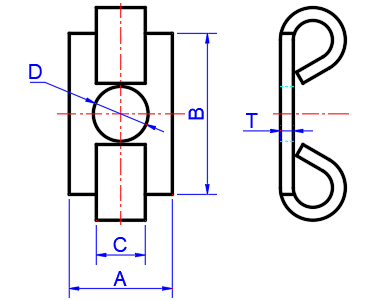

All dimensions in millimeters (mm).
Part Number System
Code
Product family identifier (XADB22)
Series
Profile series (308 or 408)
| Code | Series | A (mm) | B (mm) | C (mm) | D (mm) | T (mm) | Compatible Profile |
|---|---|---|---|---|---|---|---|
| XADB22 | 308 | 15 | 23 | 8 | 8.5 | 1.5 | EU 30 Slot 8mm |
| 408 | 16 | 25 | 8 | 8.5 | 2 | EU 40 Slot 8mm |
Key Features
Engineering advantages of the XADB22 elastic end connector.
Tool-Free Snap-Fit
Elastic nylon body snaps into the profile bore without any tools or fasteners.
Clean End Face Finish
Provides a professional finished appearance to open profile end faces.
Debris Protection
Seals the profile bore against dust, chips, and debris ingress.
Reusable
Can be removed and reinstalled multiple times without damage.
EU 30 & EU 40 Compatible
Covers the two most common EU-standard profile series.
OEM & Custom Options
Custom requests require dimensions, quantity, color requirement, and source confirmation.
Typical Applications
Common use cases for elastic end connectors in industrial assemblies.
Machine Frame Ends
Quick snap-fit end caps for machine frame profiles.
Structural Profile Ends
Protect structural profile ends from edge damage and debris.
Display Frame Ends
Clean snap-fit end finish for display and exhibition frames.
Furniture Frame Ends
Tool-free end caps for aluminum furniture and workstation frames.
Enclosure Frame Ends
Snap-fit end caps for enclosure and housing frames.
Lab & Clean Room Ends
Hygienic snap-fit end caps for laboratory and clean room profiles.
