Aluminum Double Pivot Hinges
XAKQ01 / XAKQ03
A6063 anodized aluminum double pivot hinges featuring two pivot barrels for wide-angle opening and offset panel mounting. The dual-pivot design allows the panel to clear the profile frame during opening, enabling 180°+ opening angles. Available for 79 and 104 series profiles in 7 spec variants.
Material
A6063 Aluminum Alloy
Pivot Type
Double Pivot (LR)
Profile Series
79 / 90 / 104
Size Range
79×47 to 104×75 mm
Part Number System
Code + Type + Hole Shape + Double Pivot + Specs — Example: XAKQ01-G-Z-LR-10463

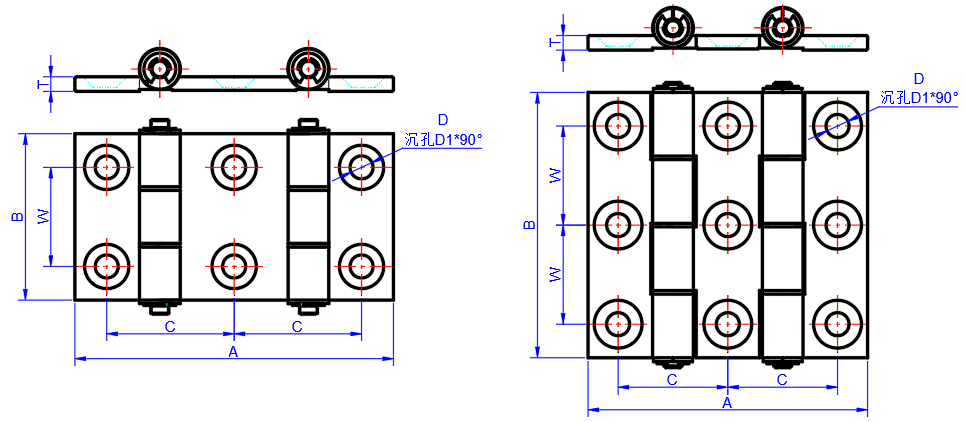

Dimensions & Series Compatibility
All dimensions in millimeters (mm).
| Code | Type | Hole Shape | Double Pivot | Specs | A | B | C | W | T | D | D1 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAKQ01 / XAKQ03 | G | Z | LR | 7947 | 79 | 47 | 31 | 28 | 4 | 6.5 | 12.5 | 6 |
| 10463 | 104 | 63 | 42 | 37 | 4 | 6.5 | 12.5 | 6 | ||||
| 10463A | 104 | 63 | 36 | 37 | 4 | 6.5 | 12.5 | 6 | ||||
| 9047 | 90 | 47 | 36 | 28 | 4 | 6.5 | 12.5 | 6 | ||||
| 7975 | 79 | 75 | 31 | 28 | 4 | 6.5 | 12.5 | 9 | ||||
| 10475 | 104 | 75 | 42 | 28 | 4 | 6.5 | 12.5 | 9 | ||||
| 9075 | 90 | 75 | 36 | 28 | 4 | 6.5 | 12.5 | 9 |
Key Features
Dual-Pivot Wide-Angle Opening
Two pivot barrels allow the panel to swing clear of the profile frame, enabling wide-angle opening beyond 180° for full access.
A6063 Anodized Aluminum
Lightweight anodized aluminum construction for large-format industrial enclosure applications.
Seven Spec Variants
Available from 79×47 to 104×75 mm, covering 79, 90, and 104 series profile systems with 6 or 9 mounting holes.
Flush Countersunk Holes
Z-type countersunk holes allow M6 screws to sit flush, maintaining a clean panel surface.
Offset Panel Mounting
Double pivot geometry offsets the panel from the frame, preventing interference between the panel edge and the profile during opening.
Anodized Surface
Anodized finish provides corrosion resistance and a consistent industrial appearance.
Typical Applications
Large Machine Guard Doors
Wide-format access panels on large CNC machines and robotic cells requiring full 180°+ opening clearance.
Heavy Enclosure Doors
Large electrical control cabinet doors on 79, 90, and 104 series aluminum profile frames.
Offset Panel Mounting
Applications where the panel must clear the profile frame edge during opening due to protruding components.
