Door Slider Blocks
XAMS53 / XAMS07
Upper and lower guide blocks for smooth sliding door operation on aluminum profile frames. Engineering plastic construction with low-friction performance. Upper blocks (XAMS53) and lower blocks (XAMS07) work together for stable door movement.
Material
PA Nylon / Carbon Steel
Upper Blocks
XAMS53
Lower Blocks
XAMS07
Application
Sliding Doors
Part Number System
Code + Specs — Example: XAMS53-A

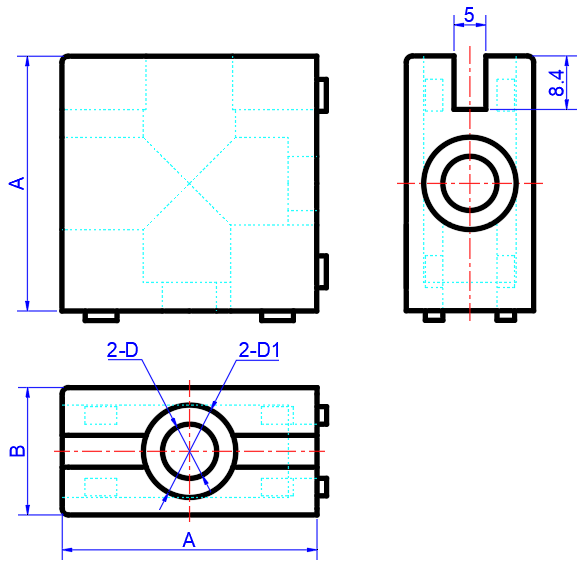

Upper Door Slider Blocks
All dimensions in millimeters (mm). Code: XAMS53
| Code | Specs | A (mm) | B (mm) | D (mm) | D1 (mm) | Compatible Profile |
|---|---|---|---|---|---|---|
| XAMS53 | A | 30 | 15 | 6.5 | 11 | 1530 |
| C | 40 | 20 | 8.5 | 14.5 | 2040 |

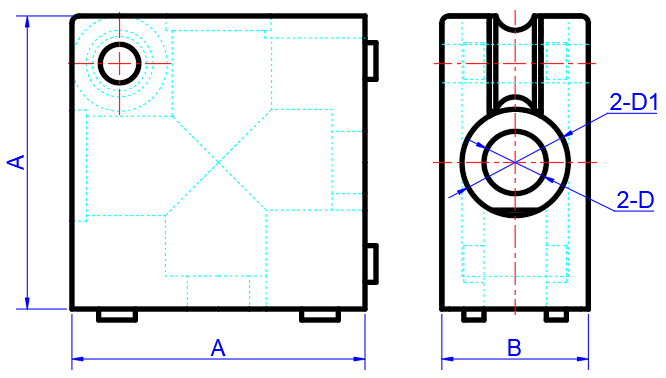

Lower Door Slider Blocks
All dimensions in millimeters (mm). Code: XAMS07
| Code | Specs | A (mm) | B (mm) | D (mm) | D1 (mm) | Compatible Profile |
|---|---|---|---|---|---|---|
| XAMS07 | B | 30 | 15 | 6.5 | 11 | 1530 |
| C | 40 | 20 | 8.5 | 14.5 | 2040 |
Key Features
Smooth Sliding Motion
Low-friction engineering plastic provides smooth, quiet sliding operation without binding or resistance.
Dual Block System
Upper and lower blocks work together for stable, guided door movement with proper alignment.
Multiple Sizes
Available in multiple specifications (A, B, C) for different profile series and door weights.
Durable Plastic
Engineering plastic construction resists wear and provides long service life under repeated sliding cycles.
Easy Installation
Simple insertion into T-slot grooves with no special tools required for quick assembly.
OEM & Custom Orders
Custom sizes and configurations available for specialized applications. Contact us for details.
Typical Applications
Machine Guard Doors
Smooth sliding door operation on aluminum frame machine guard enclosures for safe access.
Control Cabinet Panels
Sliding access panels on electrical control cabinets and equipment enclosures.
Workstation Doors
Modular workstation sliding doors for assembly lines and production areas.
Display Cases
Smooth sliding glass or panel doors on retail display and storage cases.
Server Racks
Sliding door systems on data center and server room enclosures.
Laboratory Equipment
Precision sliding door mechanisms on laboratory and testing equipment housings.
